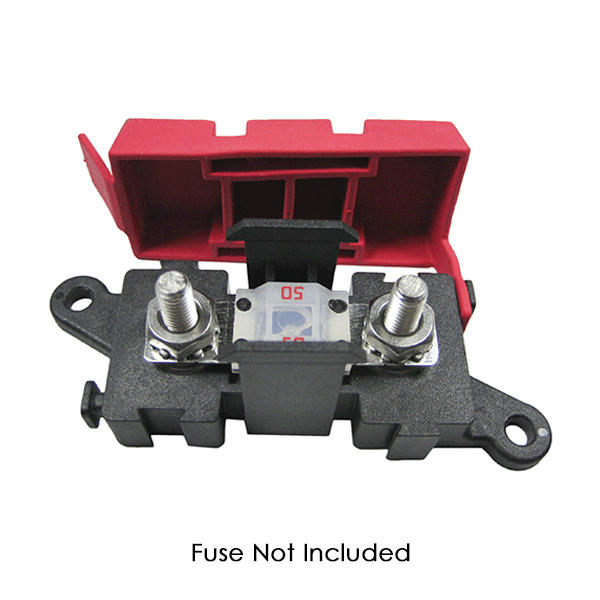

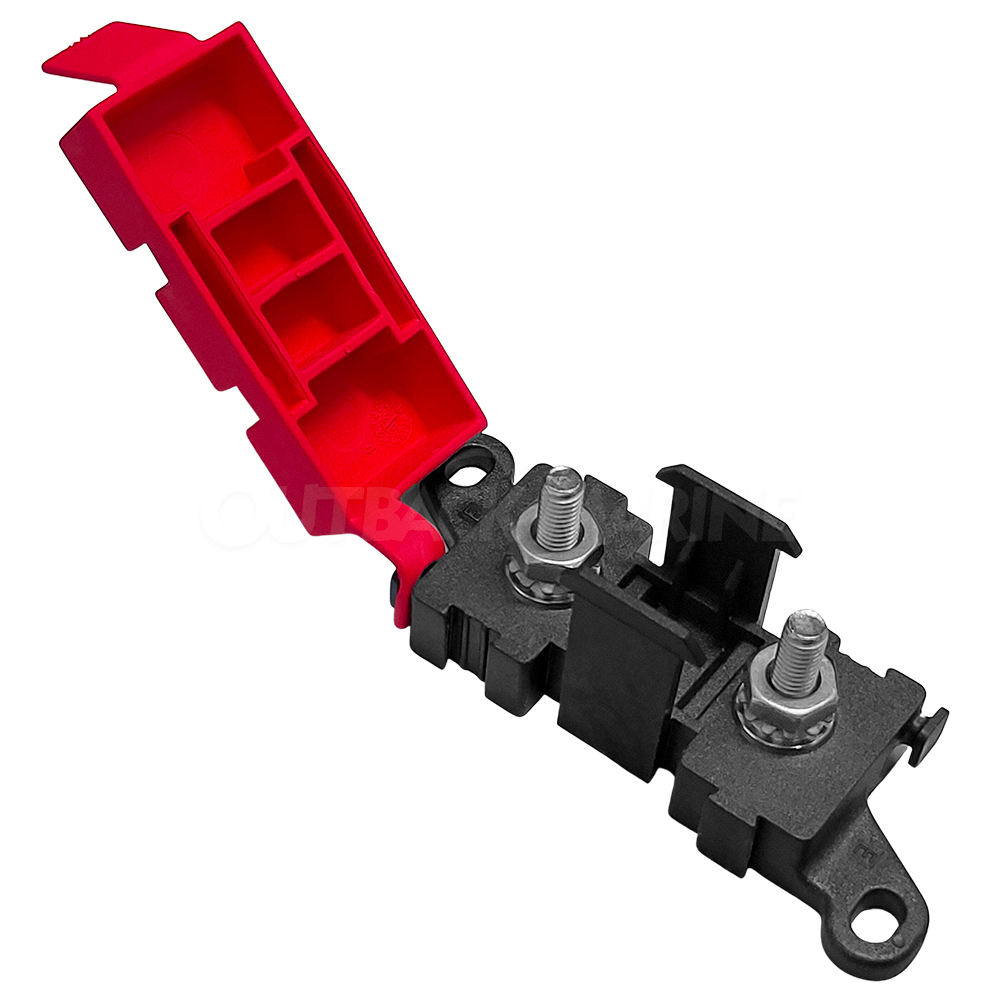

Bussmann now offers a heavy duty fuse panel called the LMI “Little Block”. The LMI is used for main branch primary fusing and industry standard MIDI fuses . The LMI can be configured to fit up to 6 all bussed to a single input stud provides efficient power distribution suitable for many “under the hood” applications such as; Marine, 4WD, Caravan/RV, Construction, Agriculture, Heavy Trucking, Buses and Specialty Vehicles. Each fuse holder is rated up to 200A (Maximum of 400A when 'stacked' together via the 1 busbar)

Removable, splash resistant cover for full access and ease of wiring using 8AWG (10mm2) to 1/0 wire (55m2)




Sizing One Fuse Module per AMI fuse

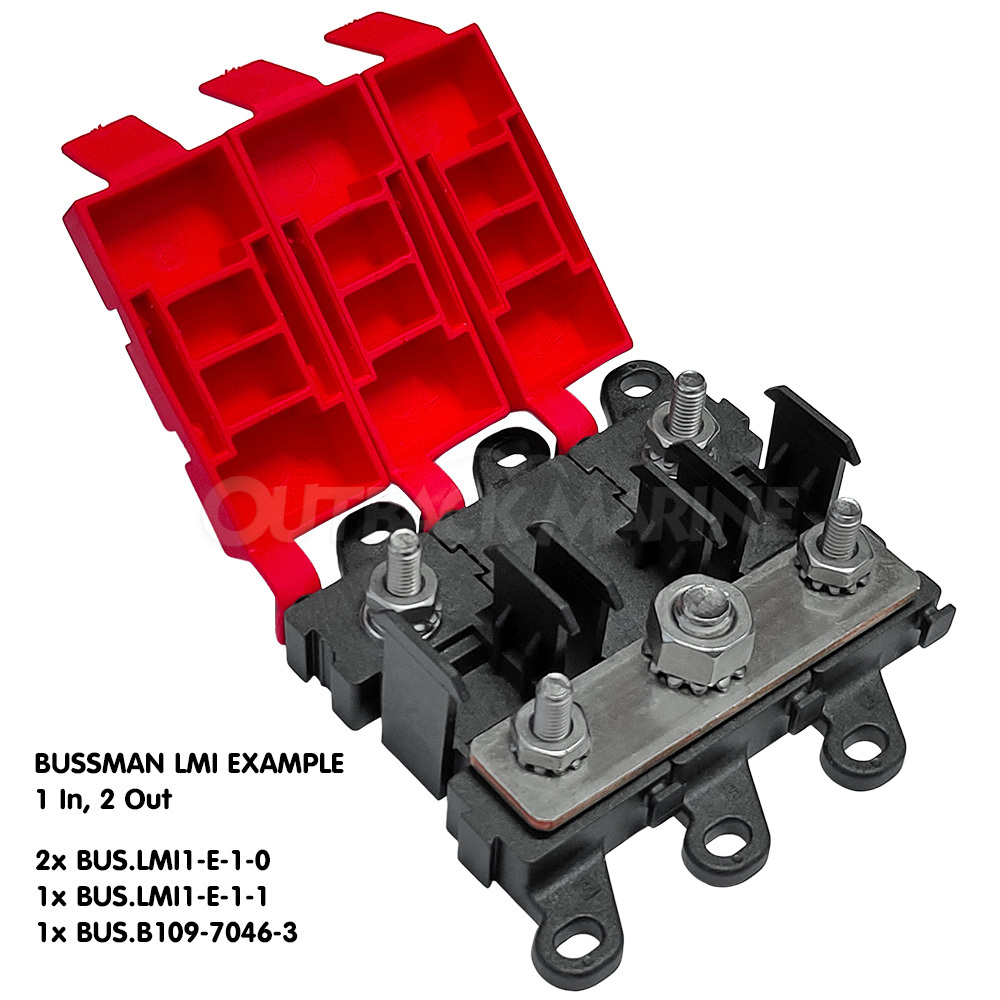

One input module and bus bar required per LMI2 – LMI7 assembly Maximum of seven modules per assembly
Ratings Maximum total combined rating is 400 amps continuous*
Temperature -40˚C (-40˚F) to 85˚C (185˚F)
Termination Input Module: Stainless Steel M8 or -18 stud and keps nut
Fuse Module: Stainless Steel M5 or #10-32 studs and keps nuts
Torques Mounting: 22 in-lbs (2.5 Nm)
Fuse Module: 39.8 in-lbs (4.5Nm)
Input Module: 75 in-lbs (8.5Nm)
Material Housing: HTN black UL-rated 94V0 thermoplastic material

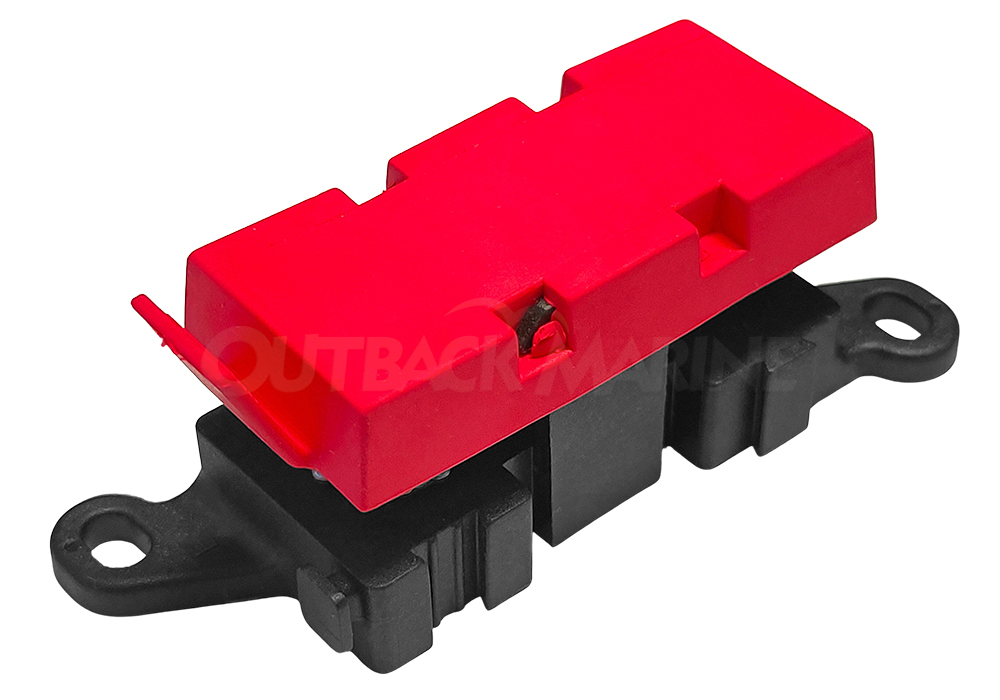

 Cover: Red EPDM/Santoprene cover for protection from accidental  shorts
 Studs: Stainless Steel

* Based on numerous variations possible between numbers of poles used, fuses selected, input wiring, and output wiring, all applications should be tested by the installer to verify the product meets their requirements.

SKU BUS.LMI1-E-1-0
Model # LMI1-E-1-0
Brand Bussmann
Shipping Weight 0.1000kg
Shipping Width 0.100m
Shipping Height 0.500m
Shipping Length 0.500m
Shipping Cubic 0.025000000m3
Unit Of Measure ea
