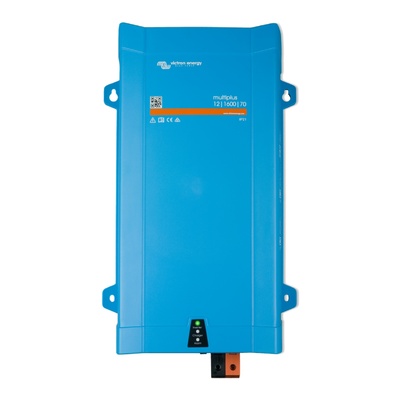

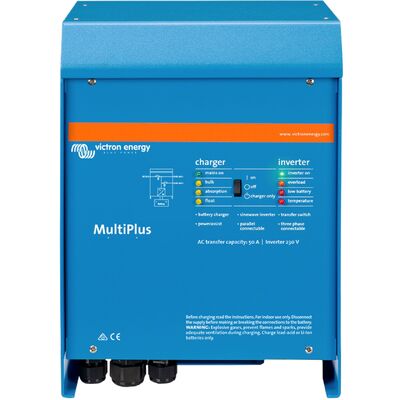

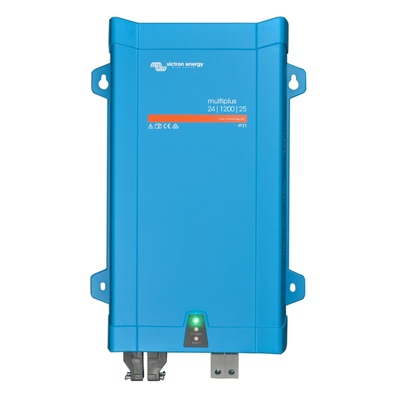

Victron Multiplus Compact

Single AC Input
The Compact can be connected to a single AC source. When the source is not available, the inverter can take over.

Single AC Output
The main output has no-break functionality. In the event of a grid failure, or shore or generator power being disconnected, the Compact takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.

Loads that should not discharge the battery, such as air-conditioning or a water heater should be connected in such a way to avoid inadvertant battery discharge. This can easily be accomplished by a simple relay circuit that is activated when AC shore power is present.

Unique PowerAssist feature
The Compact will prevent overload of a limited AC source. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.

Remote Control Panel
An optional remote control panel allows operation of the compact from any location.
