Alternators

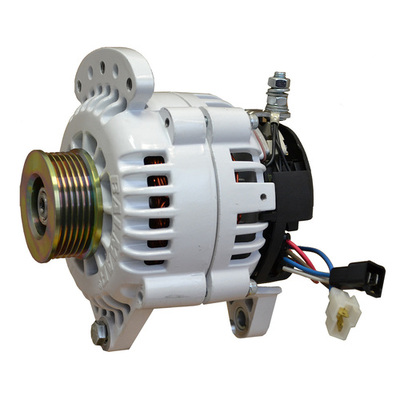

BALMAR 6-SERIES ALTERNATORS
Small in size, the light duty 6-Series alternator has mounting configurations to suit almost any engine. Built into the small case 6-Series alternator is a patented single stage Smart Ready internal regulator that’s always ready as a primary regulator, or as a back up in the unlikely event that your external regulator fails.

• Saddle and single foot mounts.
• Alternators meet USCG Title 33, ISO J1171, SAE 8846 and international CE standards for ignition protection in gas or diesel engines.
• Isolated ground.
• D+ lamp circuit.
• 12,000 max RPM.
• 1-year limited warranty. ShWt. 7 KG

BALMAR 94-SERIES ALTERNATORS
Two-inch single foot 94-Series alternators feature oversized bearings and extra high amperage diodes to ensure superior cooling and longer life. Custom stators, integrating larger gauge copper windings deliver outstanding low-end output and impressive performance across the powerband.

• Bi-directional cooling fan.
• Isolated ground terminal.
• Maximum 6,500 RPM.
• Corrosion-resistant powdercoat.
• Meets USCG Title 33 standards for ignition protection.
• 1-year limited warranty. ShWt. 10KG

BALMAR 94LY-SERIES ALTERNATORS
Designed to be compatible with Yanmar’s 6LY3 engine and other engines using a Hitachi-style saddle mount and dual vee belts, 94LY alternators feature custom wound stators, extra heavy diodes ad a clocked case which provides improved access to all terminal connections.

• Bi-directional cooling fan.
• Isolated ground terminal.
• Maximum 6,500 RPM.
• Corrosion-resistant powdercoat.
• Meets USCG Title 33 standards for ignition protection.
• 1-year limited warranty.
• ShWt. 10KG

BALMAR 95-SERIES ALTERNATORS
Moderately compact for its generous output curves, the 95-Series features an extra heavy duty stator winding with large gauge wire for added output at low RPM. Combine that with extra large sealed bearings, a massive .875” pulley shaft and high amperage diodes for durability and long alternator life. The 95-Series alternator features an isolated ground for sure continuity to system ground, and a brawny J-180 style saddle mount for plenty of resistance to twist and torque.

• Isolated Ground Terminal
• Bidirectional cooling fan.
• 6,500 RPM maximum rotation speed.
• Corrosion-resistant powdercoat finish.
• Meets US Coast Guard Title 33 safety standards.
• Requires external regulation.
• 1-year limited warranty.
• ShWt. 10 KG

BALMAR 97-SERIES ALTERNATORS
Built expressly for the demands of large, multi-battery house banks, inverter loads and other above-average electrical demands, extra-large case 97-Series alternators are scaled to deliver impressive output at all engine RPMs. 97-Series alternators are rated at 160 amps at 12 volt, or 110 to 140 amps at 24 volts. Brushless 97-Series models meet US Coast Guard Title 33, CE, ISO J1171 and SAE 8846 safety standards.

• Isolated Ground Terminal
• Bidirectional cooling fan.
• Corrosion-resistant powdercoat finish.
• 6,500 RPM maximum rotation speed.
• J180 Mount Brushless Design
• Maximum RPM: 6,500.
• ShWt. 18 KG

BALMAR 97EHD-SERIES ALTERNATORS
With even more mass and rated output, 97EHDSeries alternators are designed to support substantial battery and service loads demanded by larger recreational, commercial, or military vessels. 97 EHD-Series alternators are available in 185 and 265-amp models in 12 volts, and 190 amps at 24 volts.

• Cast aluminum finish.
• Case ground.
• All models require external regulation.
• J-180 mount.
• 1-year limited warranty.
• ShWt. 20 KG.

BALMAR 98-SERIES ALTERNATOR
Balmar 98 Series AlternatorAvailable in 310A/12V and 220A/24V models, the 98-Series alternator adds dual fans for enhanced cooling, high amperage diodes for efficient voltage rectification, over-sized shaft and pulley bearings for smoother, quieter operation, and brushless excitation for longer wear, reduced electrical noise and greater ignition protection.

• Isolated Ground Terminal
• Brushless design
• D+ Lamp Circuit
• External Regulation
• Maximum RPM: 6,500
• Meets USCG Title 33, CE, SAE 8846 and ISO J-1171 standards for ignition protection.
• Durable powdercoat finish.
• 1-year limited warranty.
• ShWt 21 KG.
