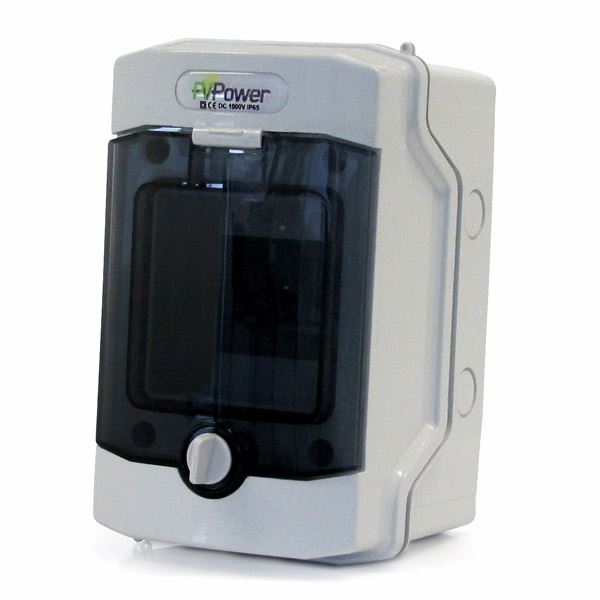

The  PV  Power  IP65  enclosures  are  manufactured  in  Europe  from  ASA  (Acrylonitrile  Styrene  Acrylate).  ASA  material  is  extremely  tough  with  good  chemical resistance and thermal stability, UV stabilized, and outstanding resistance to weather and aging.

These enclosures are fitted with a small handle for locking the door and can be retrofitted with a key lock assembly. Each enclosure is equipped with multiple metric knockouts in numerous sizes, in top, bottom and sides for extra versatility.

Technical Specifications:

  • Material: Acrylonitrile Styrene Acrylate (ASA)
  • Complies with: IEC 60670-1:2002  IEC 60670-24:2005
  • Rated voltage: 1000VDC
  • Resistance of insulating material to fire (glow wire test): 650°C
  • Tamper evident security seal provisions
  • Protection degree IP65
  • Insulation class II
  • Optional key lock available
  • Made in Europe
  • UV stabilised
  • Dimensions (mm): 127 x 200 x 120



SKU PVP.N4D
Model # N4D
Brand PVPower
Shipping Weight 0.2500kg
Shipping Width 0.210m
Shipping Height 0.140m
Shipping Length 0.140m
Shipping Cubic 0.004116000m3
Unit Of Measure ea
