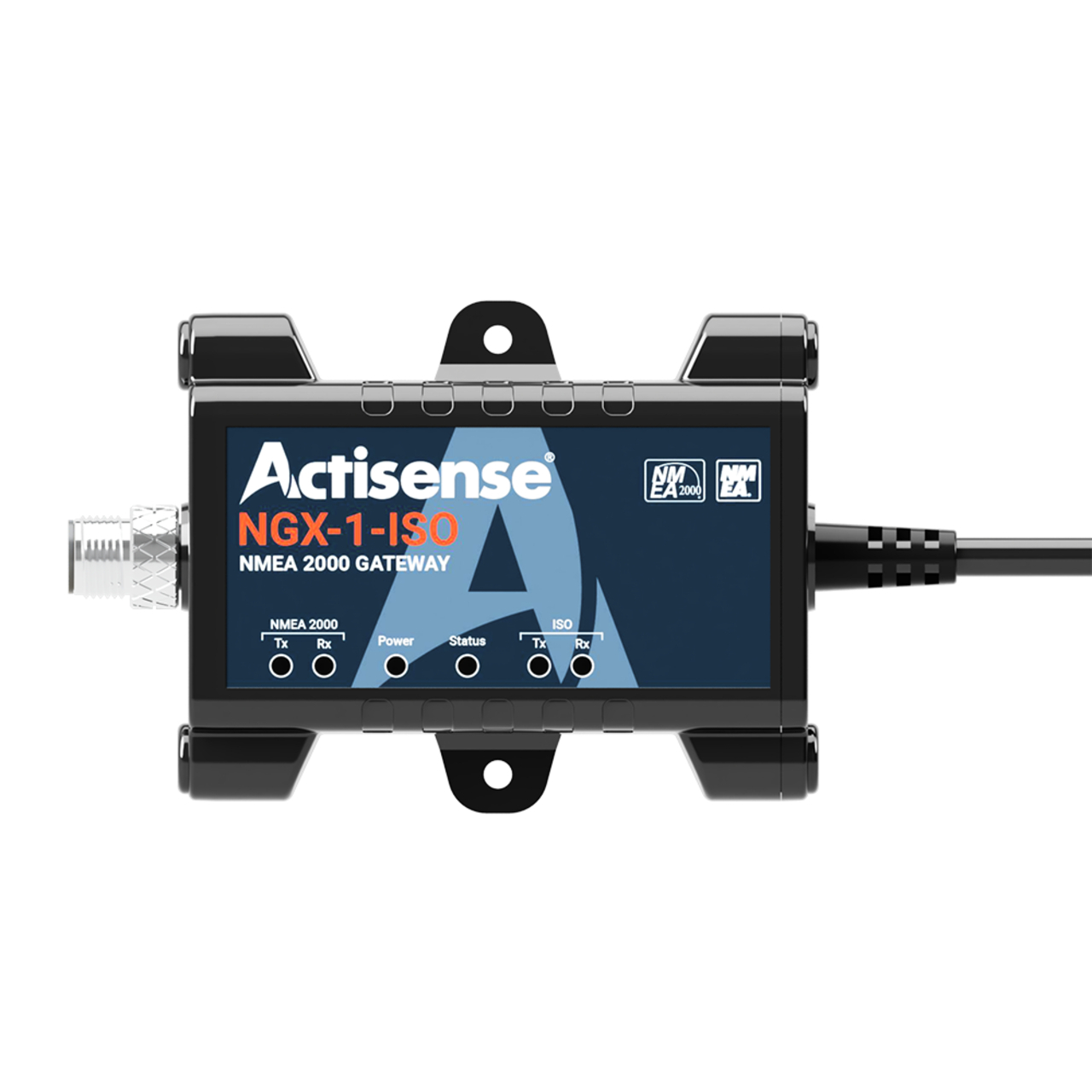

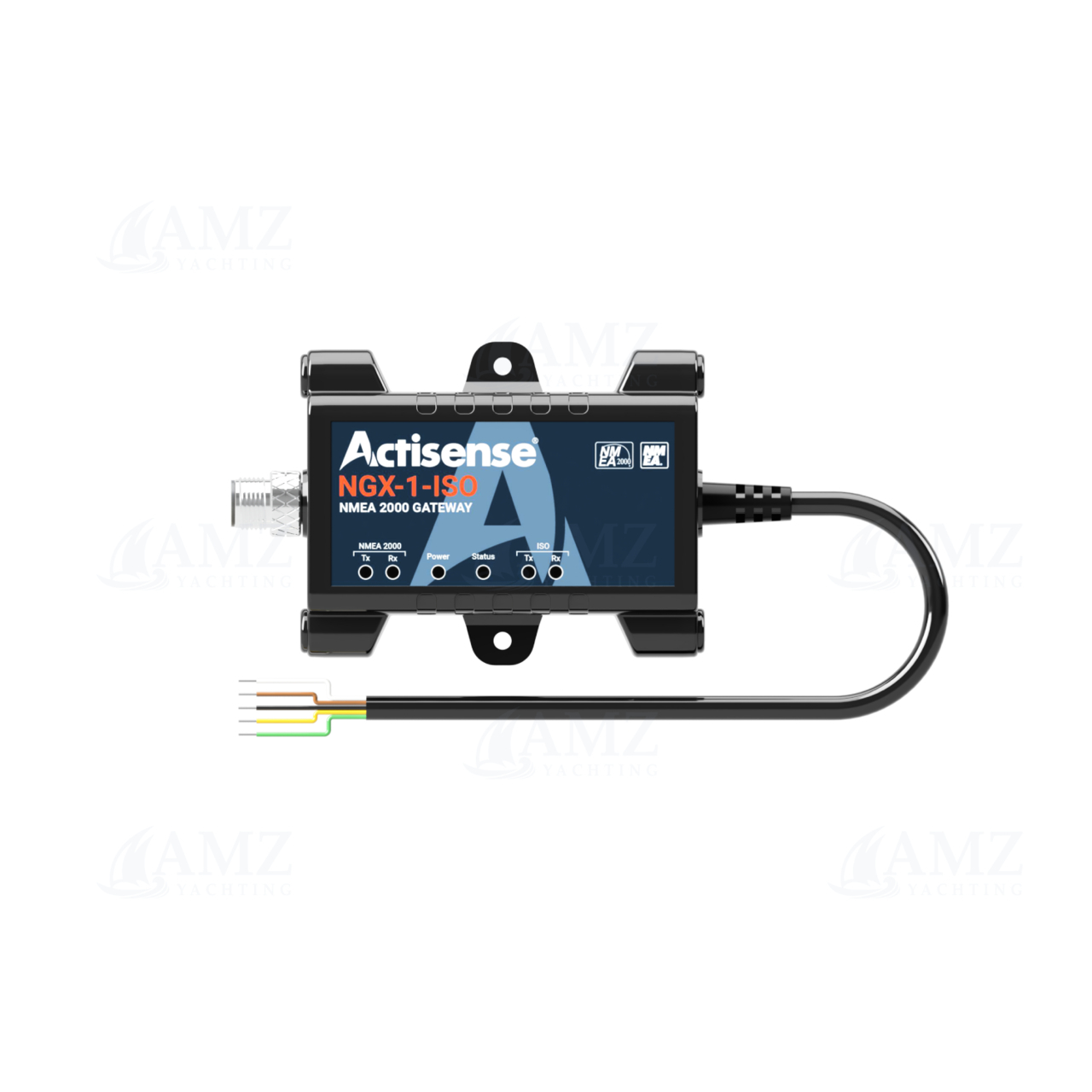

Multi-function NMEA Gateway for Seamless Integration, Conversion, and Diagnosis Between NMEA 2000 and NMEA 0183 Systems

The NGX-1 is an intelligent multi-function gateway that combines the capabilities of two previous generation products, the NGT-1 and NGW-1, into a single, cost-effective, and flexible solution. You can configure the NGX-1 to function as an NMEA 2000 to PC interface or as a bi-directional NMEA 0183 to NMEA 2000 conversion gateway.

This product uses an ISO connection type

Features

  • Essential NMEA 2000 diagnostic tool
  • USB version is fully isolated to prevent harmful ground loops
  • ISO version features OPTO-isolated input and ISO-Drive™ output for safe RS232 or RS422 interfacing
  • Supports data transfer rates of up to 230,400 baud
  • Advanced configuration via the Actisense Toolkit, allowing you to set Tx/Rx lists and Tx rates
  • Supports Fast Heading at 10Hz
  • Multiple diagnostic LEDs for clear status indication

Advantages

  • Enables all major PC Chartplotter applications to interface with the NMEA 2000 bus
  • Acts as a rule-enforcing firewall between the PC and the NMEA 2000 bus
  • Provides powerful diagnostics of the NMEA 2000 network with the FREE NMEA Reader software
  • Configure and flash-update Actisense products connected to the bus
  • Upgrade NMEA 0183 equipment to NMEA 2000
  • Allows NMEA 0183 devices to receive vital NMEA 2000 data
  • Uses the NMEA 2000 bus to multiplex multiple NMEA 0183 signals
  • Reliable, renowned bi-directional conversion engine
  • Supports a wide range of conversions, including AIS
  • Easily configurable via the Actisense Toolkit
Category Specification
Supply Voltage (NMEA 2000 Port) 9 to 30V DC
Supply Current (NMEA 2000 Port) 62mA @ 9V DC
Load Equivalent Number (LEN) 2
Speed / Baud Rate 250kbps
Connectivity M12 Male (A coded)
Compatibility Full NMEA 0183, RS232 & RS422 compatibility
Speed/Baud Rate 4800 to 230400 Baud
Output Voltage Drive >= 2.1V (differential) into 100Ω
Output Protection Short circuit and ESD
Connectivity 5mm stripped and tinned wire
Cable Length 0.75m
Compatibility USB 1.1, 2.0, and 3.0
Speed / Baud Rate 4800 to 230400 Baud
Connectivity Male type A plug moulded onto cable
Cable Length 1.8m
NMEA 2000 Port to ISO Port Hi-Pot tested to 1000V
NMEA 2000 Port to USB Port Galvanic Isolation, Hi-Pot tested to 1000V
Housing Material Flame retardant Polycarbonate (body), PBT (end caps)
Weight 112g (NGX-1-ISO), 113g (NGX-1-USB)
NMEA 2000 NMEA 2000 Certified
RoHS and REACH Compliant
EMC EN 60945:2002, FCC Part 15b, ICES-003
Environmental Protection IP67
Operating Temperature -25°C to +70°C
Storage Temperature -30°C to +70°C
Recommended Humidity 0 to 93% RH @ 40°C
SKU ACT.NGX-1-ISO
Model # NGX-1-ISO
Brand Actisense
Shipping Weight 0.1120kg
