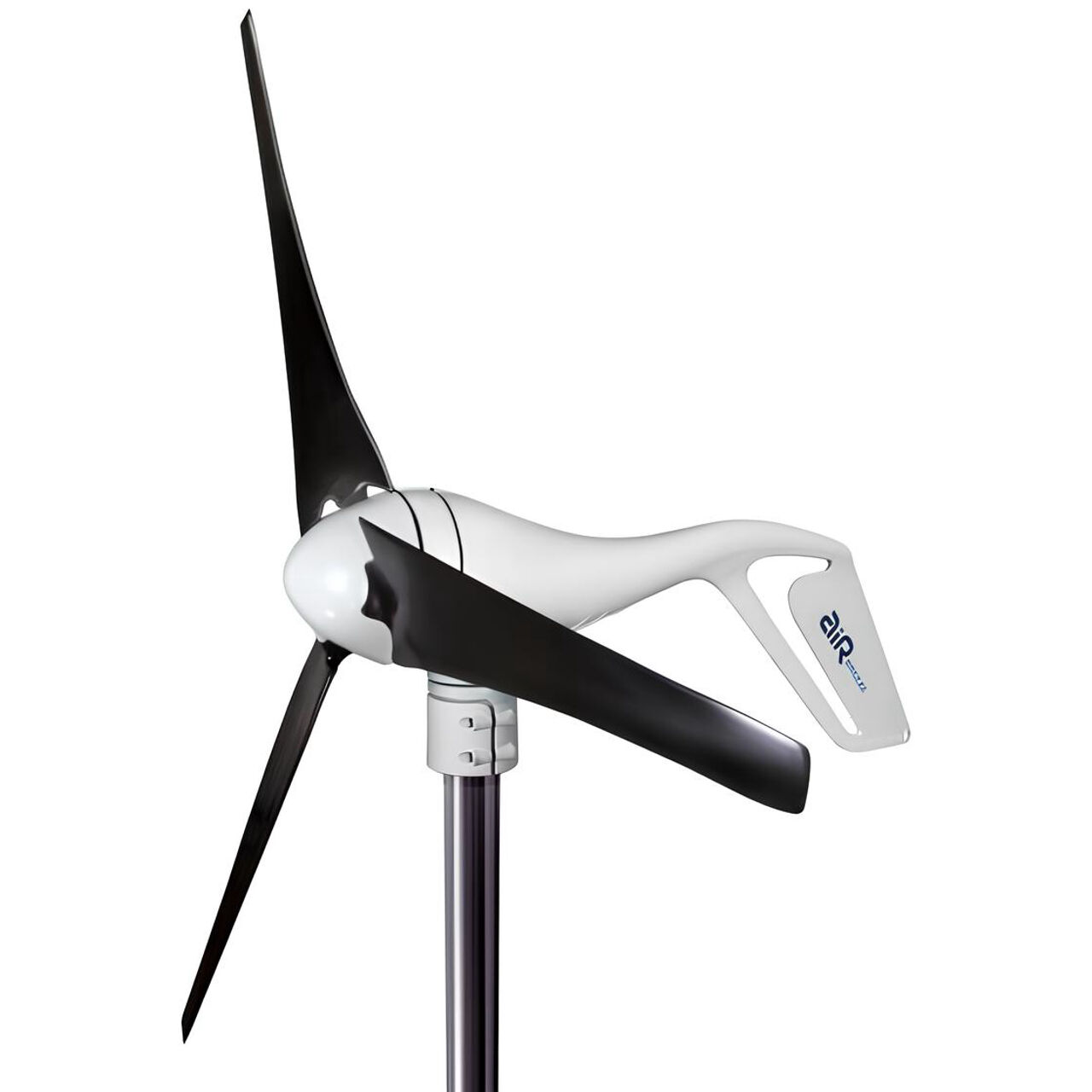

AIR Breeze provides energy you can count on in challenging conditions. This field-proven unit is engineered for battery-charging applications in coastal to desert to Arctic environments. It delivers the energy you need for communications, offshore structures, sailing or remote monitoring, to name a few. With optimised electronic controls, AIR Breeze provides energy quietly and efficiently.

  • Corrosion resistant, aircraft quality paint with a marine grade O-ring seal and stainless steel fasteners, ensuring durability in challenging conditions .
  • Pair with solar PV for redundant energy production year-round.
  • Lightweight design is simple and easy-to-install; integrated controller for plug-and-play operation.
  • Produces 40 kWh of energy per month generating energy in a wide range of wind speeds.
  • Advanced microprocessor technology for superior performance and high wind protection without mechanical braking.

Technical Specifications

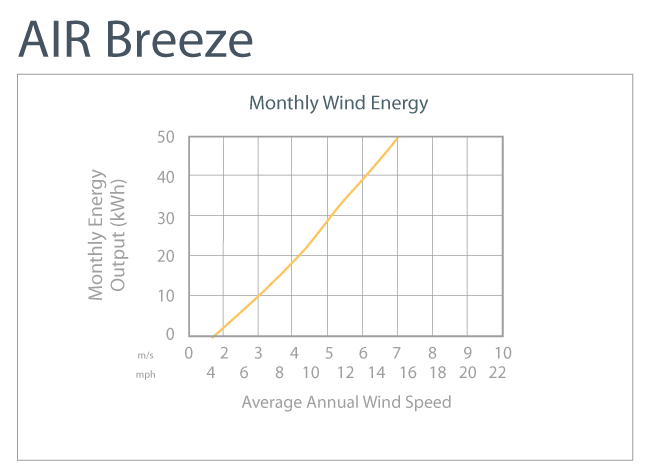

Energy Approx. 40 kWh/mo at 5.8 m/s (13 mph)
Swept Area 1.07 m2 (11.5 ft2)
Rotor Diameter 1.17 m (46 in)
Weight 5.9 kg (13 lb)
Shipping Dimensions 686 x 318 x 229 mm (27 x 12.5 x 9 in) 7.7 kg (17 lb)
Startup Wind Speed 3.1 m/s (7 mph)
Voltage 12 or 24 or 48 VDC
Turbine Controller Mircoprocessor-based smart controller
Body Permanent mold cast aluminum
Blades (3) Injection-molded composite
Alternator Permanent magnet brushless
Overspeed Protection Electronic torque control
Survival Wind Speed 49.2 m/s (110 mph)
Mount 1.5 in schedule 40 pipe 48 mm (1.9 in) outer diameter
Wind Speed Operating Range 3.1-22 m/s (7-49 mph)
Optimum Wind Speed Range 4.5-22 m/s (10-49 mph)
SKU PWP.AIRBREEZE
Brand Primus Wind Power
Shipping Weight 7.7000kg
Shipping Width 0.690m
Shipping Height 0.230m
Shipping Length 0.320m
Shipping Cubic 0.050784000m3
