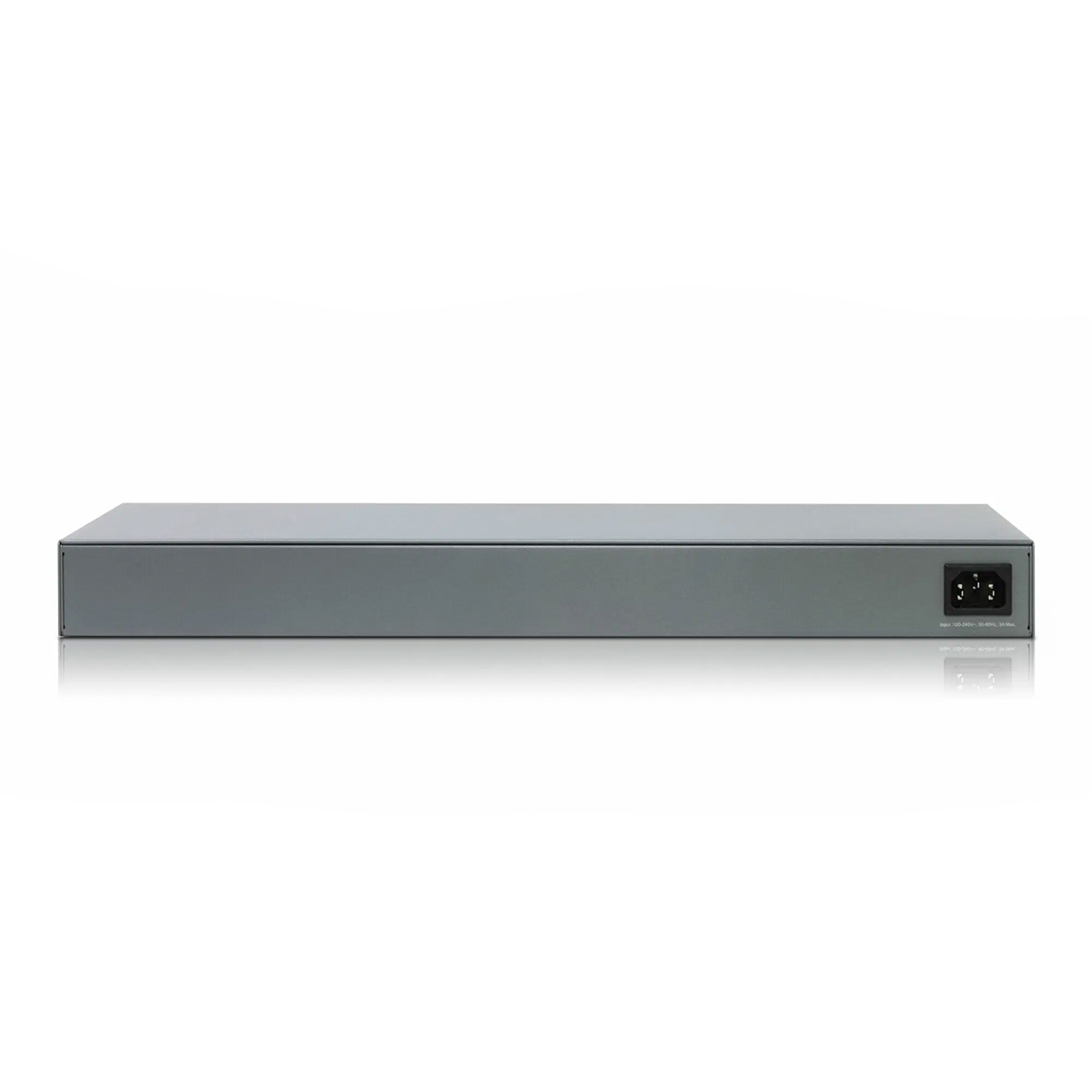

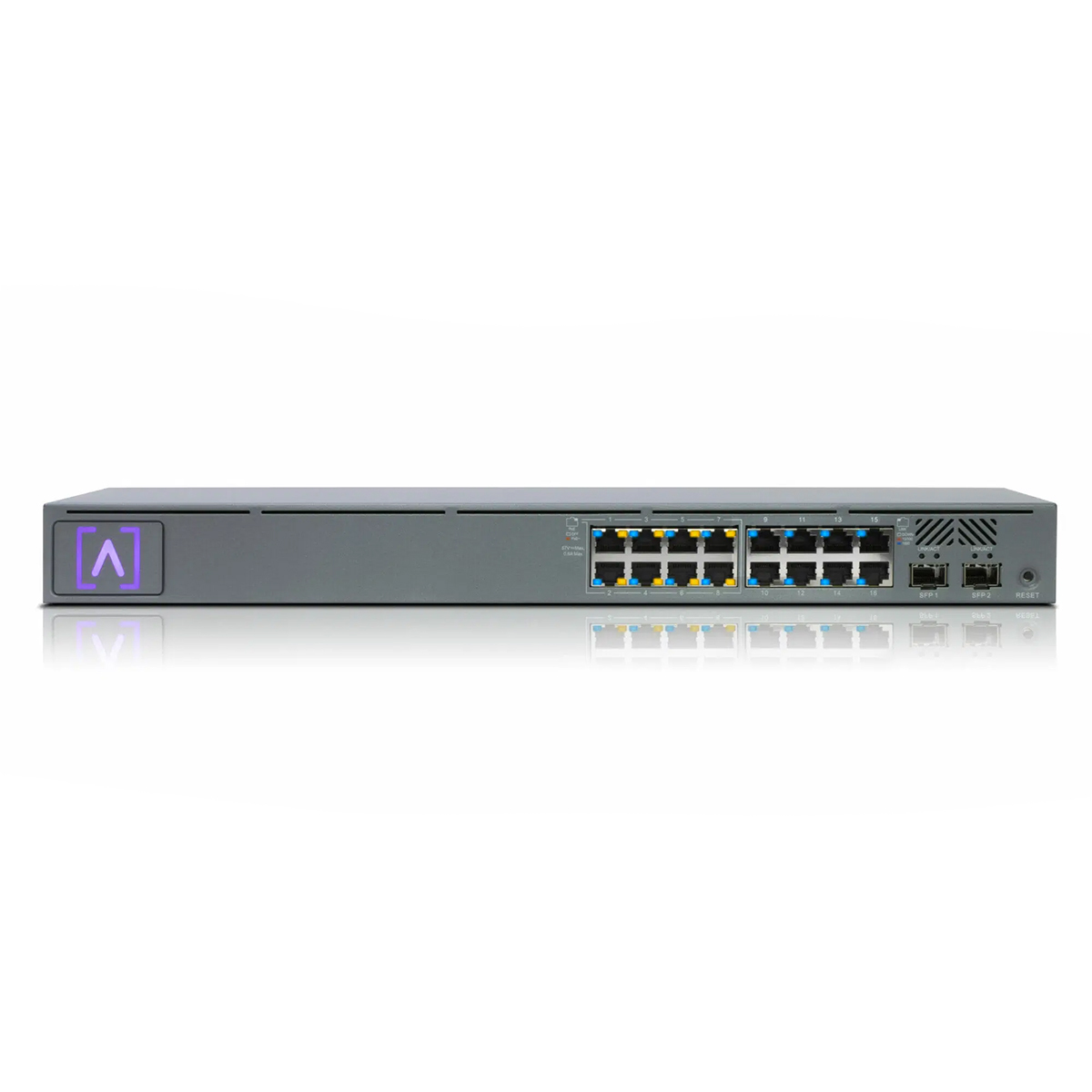

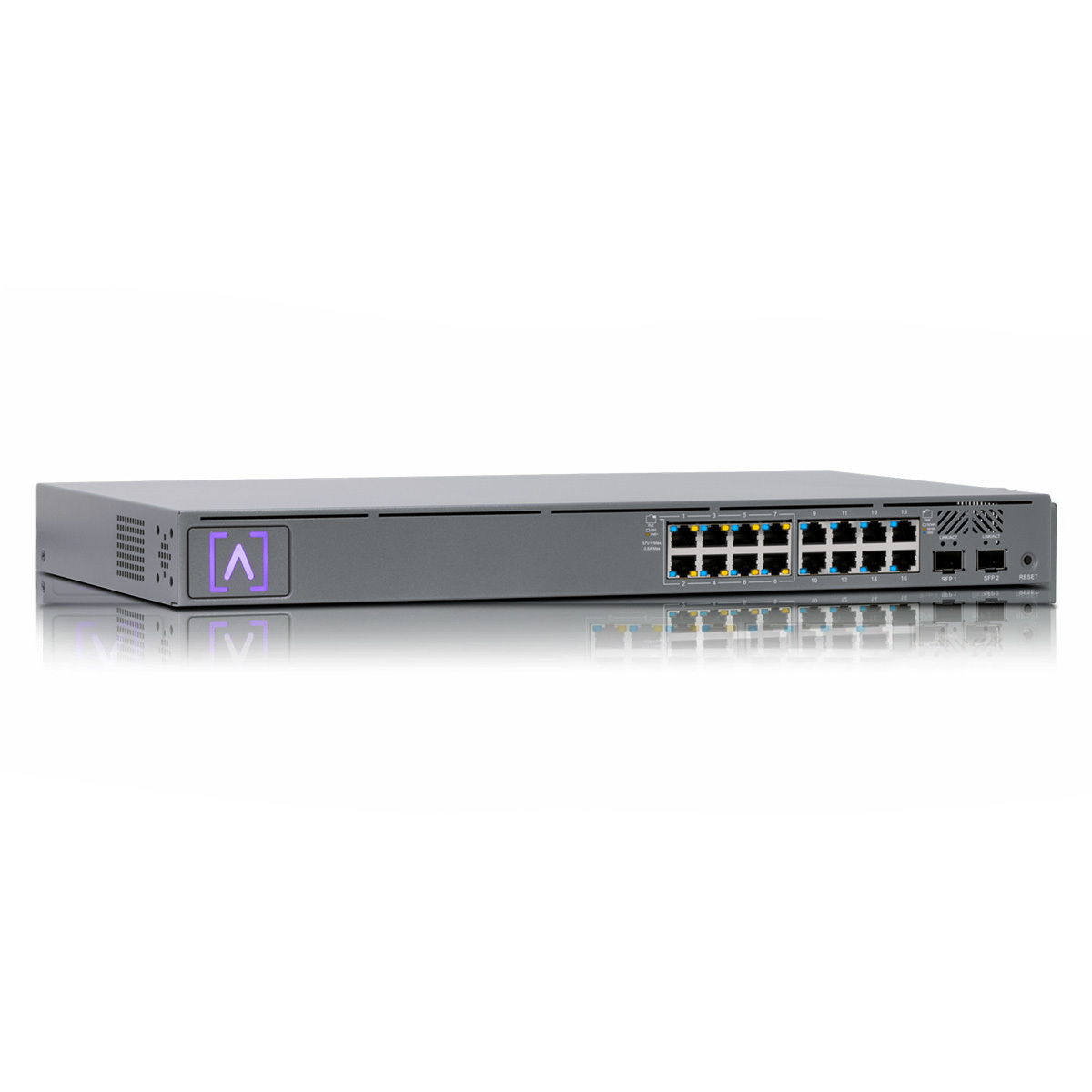

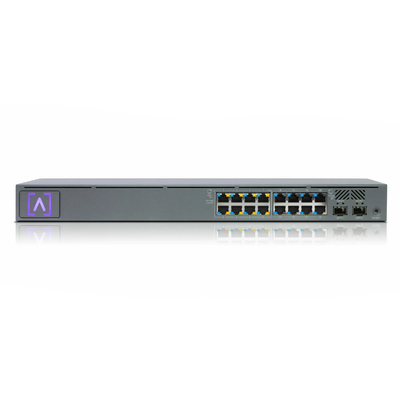

Alta Labs 16-Port Enterprise Network Switch, Layer 2, 120W PoE

The Alta Labs 16-Port Enterprise Network Switch represents a leap forward in networking technology, combining Layer 2 functionality with 120W of Power over Ethernet (PoE) to deliver a comprehensive, high-performance networking solution. Designed for enterprise environments, this switch facilitates seamless data transfer, efficient power distribution, and superior network management capabilities, making it an indispensable tool for modern businesses.

Key Features:

  • Layer 2 Functionality: Offers advanced Layer 2 switching capabilities, enabling efficient communication and data transfer across the network. This feature supports enhanced traffic management and network segmentation, optimizing performance and security.
  • 120W PoE Support: Equipped with a generous 120W PoE budget, it powers PoE-enabled devices directly through network cables, streamlining the installation of wireless access points, IP cameras, and VoIP phones while eliminating the clutter of additional power supplies.
  • Gigabit Ethernet Ports: Features 16 Gigabit Ethernet ports, providing ample connectivity for a variety of devices and applications, ensuring high-speed data transfer rates and minimal latency across the network.
  • Advanced Security: Incorporates robust security measures including Access Control Lists (ACLs) and port security to protect against unauthorized access and ensure the integrity of sensitive data.
  • Energy Efficiency: Adheres to IEEE 802.3az Energy-Efficient Ethernet (EEE) standards, automatically reducing power consumption during periods of low data activity, thereby lowering operational costs.
  • Intuitive Network Management: Offers an easy-to-use web interface for streamlined network configuration, performance monitoring, and traffic prioritization, simplifying network administration tasks.
  • Durable Construction: The switch's robust metal chassis and fanless design ensure silent operation and enhanced durability, making it suitable for various operational environments.

General Specifications:

Feature Detail
Network Ports 16 Gigabit Ethernet Ports
PoE Power Budget 120W
Switching Capacity Layer 2 Functionality
Security Features ACLs, Port Security
Energy Efficiency IEEE 802.3az Energy-Efficient Ethernet (EEE)
Management Interface Web-Based Management
Build Quality Metal Chassis, Fanless Design

The Alta Labs 16-Port Enterprise Network Switch is a strategic investment in your business's future, providing the foundation for a reliable, scalable, and secure network infrastructure.

Specification S16-POE S24-POE
Total Ports 16 24
PoE Ports 8 16
Uplink Ports 2 SFP 2 SFP+
Power Budget 120 W 240 W
Interface Ports Speed 10/100/1000 Mbps 10/100/1000 Mbps
Switching Capacity 36 Gbps 88 Gbps
Non-blocking Throughput 18 Gbps 44 Gbps
Forwarding Rate 26.8 Gbps 65.5 Gbps
PoE Budget/Max 120 Watts 240 Watts
PoE Supply per Port 30 Watts 30 Watts
Per Port PoE (8) 802.3at PoE+ (16) 802.3at PoE+
Non-PoE Ports 8 8
PoE Indicator Orange Orange
Network Speed Indicator Orange: 10/100 Mbps, Blue: 1000Mbps Orange: 10/100 Mbps, Blue: 1000Mbps
SFP/SFP+ Indicator Blue - Link/Activity (1000 Mbps) Blue - Link/Activity (1000 Mbps, 2500 Mbps, 5000Mbps), White - Link/Activity (10 Gbps)
Packet Buffer 4.1Mbit 12Mbit
MAC Table Size 8K 16K
Energy Efficient Ethernet Yes Yes
Management Factory reset button Factory reset button
Dimensions 44mm x 254 mm x 441.5 mm 44mm x 254 mm x 441.5 mm
Material Type SGCC SGCC
Material Finish Powder coat - Matte Powder coat - Matte
Color Metallic gray Metallic gray
Mounting Options Rack mount Rack mount
Operating Temperature -5 to 50° C -5 to 50° C
Operating Humidity 10 - 90% Non-condensing 10 - 90% Non-condensing
IP Rating None None
EMI Rating EMI Class-A with 3dB margin EMI Class-A with 3dB margin
Cooling Fan None Yes
Chipset Realtek Realtek
Bluetooth Yes - Setup Yes - Setup
Power Consumption w/o PoE 23 Watts 53 Watts
Power Consumption Full PoE 143 Watts 295 Watts
Power Supply Universal AC, 100-240VAC 50/60Hz Internal Universal AC, 100-240VAC 50/60Hz Internal
RJ45 Port Surge Protection 12kV for ESD - contact, 25kV for ESD - Air 12kV for ESD - contact, 25kV for ESD - Air
Certifications FCC, CE, IC FCC, CE, IC
SKU ALT.S16-POE
Model # S16-POE
Brand Alta Labs
Shipping Weight 3.6000kg
Shipping Width 0.044m
Shipping Height 0.442m
Shipping Length 0.254m
Shipping Cubic 0.004940000m3
