Arco Marine Zeus High Energy Alternator Regulator, Bluetooth, 12V, 24V, 36V, 48V
Revolutionize your energy system with Arco Marine Zeus Regulator, featuring Bluetooth, app control, dual shunt monitoring, and generator mode for 12-48V systems.
SKU: ARC.ZEUS-1
SAVE $49.00 (4%)
Currently Unavailable for Purchase
Please keep an eye on the website when this product will be available again.
Arco Marine Zeus High Energy Alternator Regulator for Marine and RV applications. Configuration via Bluetooth Connectivity. Suitable for 12V, 24V, 36V and 48V systems.
The Arco Marine Zeus High Energy Alternator Regulator represents a leap forward in marine and RV power management technology. With the fusion of Bluetooth connectivity and a dedicated app available for both iOS and Android, Zeus sets a new standard for convenience and control in energy system regulation. Suitable for Lithium (LiFePo4) batteries to lead-acid Deep Cycle batteries and features pre-set battery libraries and configurable menus to optimize your charging profiles.
Zeus also takes into consideration the power of your engine and allows you to configure the alternator’s power take off from the engine by managing the field, or duty. An advanced feature of Zeus is that it can turn your engine into a dedicated generator with a press of the button, whereby it focuses the alternator’s performance to the creation of energy in replenishing your battery bank quickly.
Smart Connectivity and Control:
- Bluetooth Integration: Direct connection without additional equipment, facilitating wireless communication and configuration.
- Dual Shunt Reading: Unique ability to monitor both battery and alternator shunts, responding to real-time temperature and current changes.
- ARCO Zeus App: Offers a user-friendly interface with automated data logging, remote troubleshooting, and configuration import capabilities.
Versatile Charging Optimization:
- Adaptable Voltage Systems: Compatible with 12V, 24V, 36V, and 48V setups, accommodating a wide range of energy requirements.
- Advanced Battery Support: Pre-configured for various battery types, including Lithium (LiFePo4) and lead-acid Deep Cycle, with customizable charging profiles.
- Generator Mode: An innovative feature that transforms your engine into a dedicated generator, maximizing alternator efficiency for rapid battery replenishment.
Installation and Value:

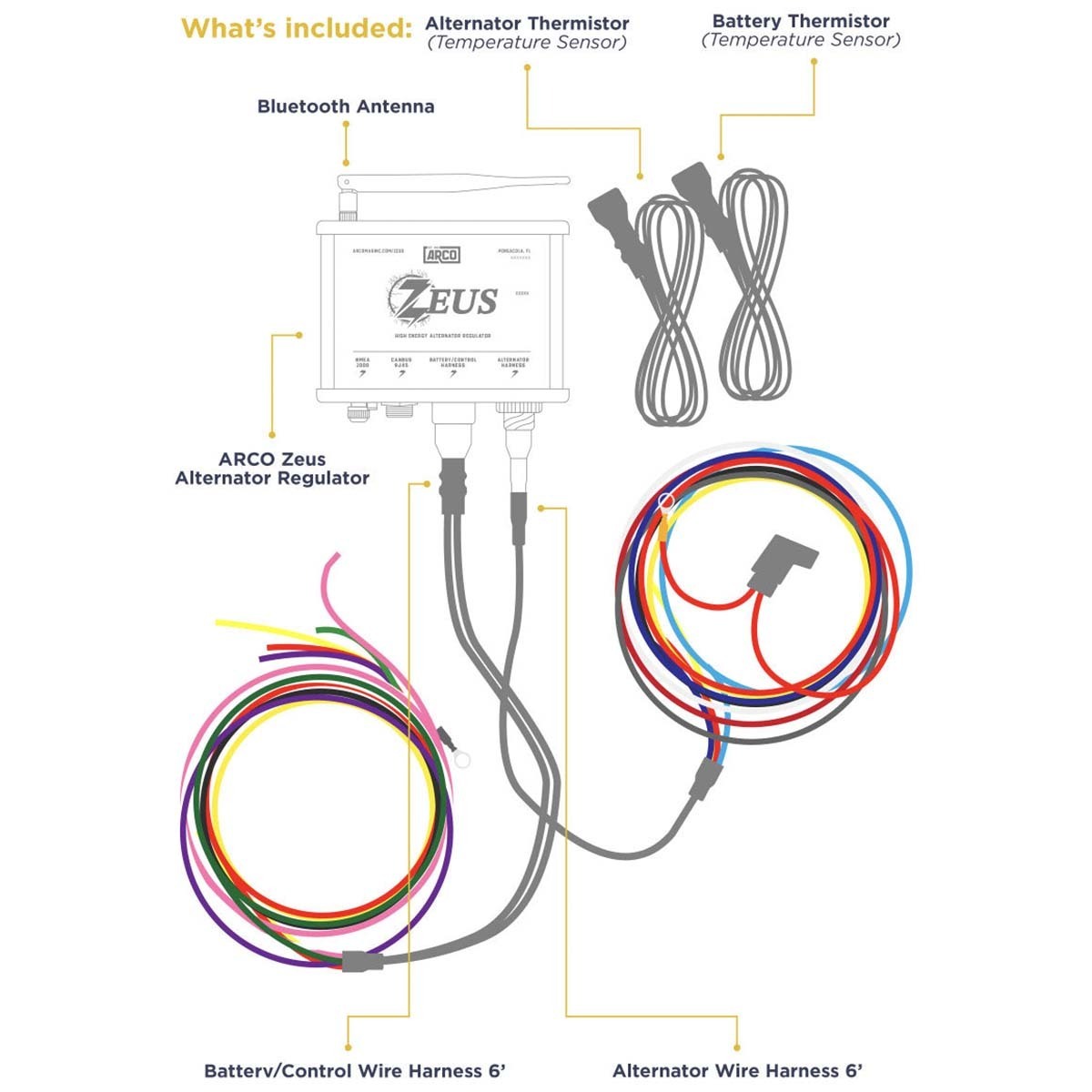

- Easy Installation: Comes complete with battery and alternator harnesses, plus 2 thermistor harnesses, offering significant savings and ease of setup.
- Comprehensive Kit: Includes an NMEA 2000 kit, further enhancing connectivity and integration with existing on-board systems.
Technical Advancements:
- State of Charge Monitoring: Inbuilt State of Charge monitoring removes the need for additional devices, streamlining your system.
- Fuel-Efficient Design: Emphasizes sustainability by optimizing fuel consumption when driving energy to the alternator.
- CAN bus and NMEA 2000: Seamless integration into RV and marine networks, transmitting essential data to navigation systems and displays.
- Victron Energy GX Device Support: Includes monitoring the alternator output and status out locally on the display of the GX device as well as logging and monitoring it remotely on the Victron VRM Portal.
Arco Zeus operating temperature: -20°C to 80°C
The Arco Marine Zeus High Energy Alternator Regulator is not just a component; it's a complete power management solution offering unparalleled control and protection for your energy systems.

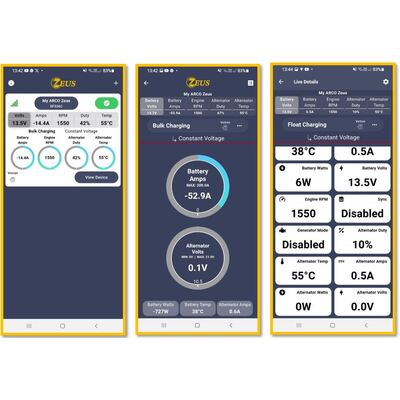

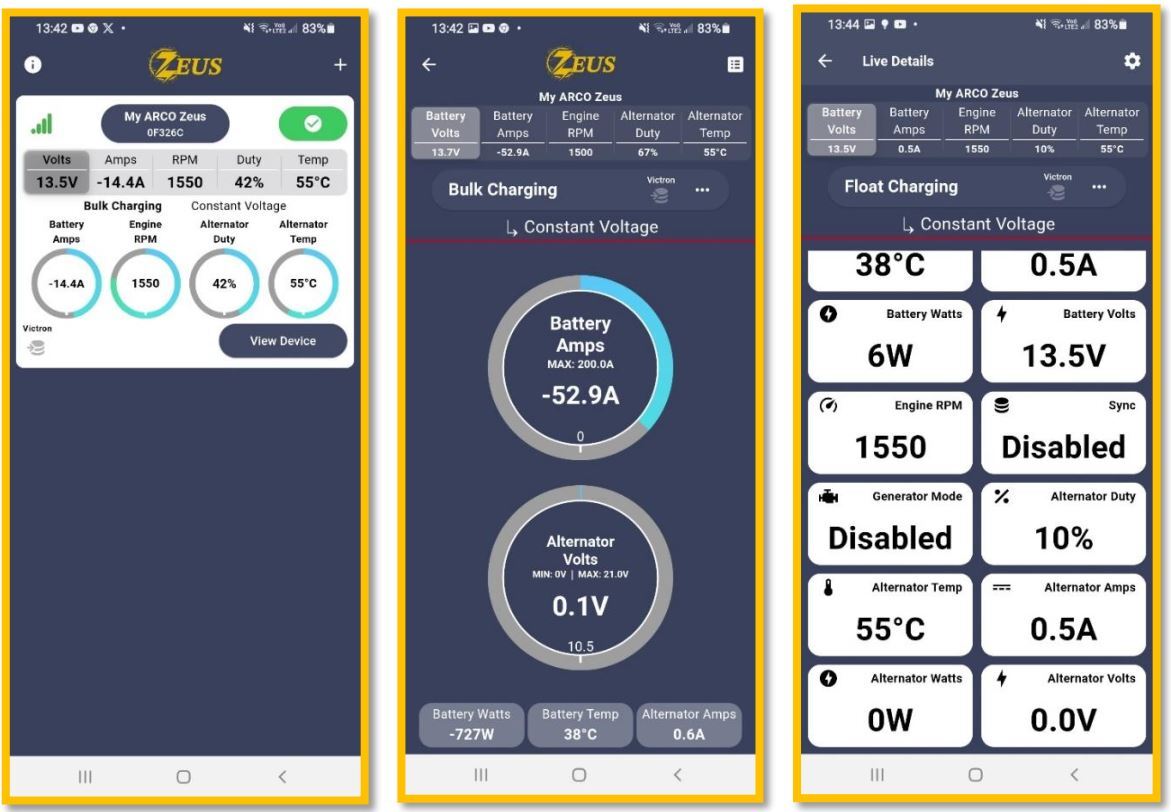

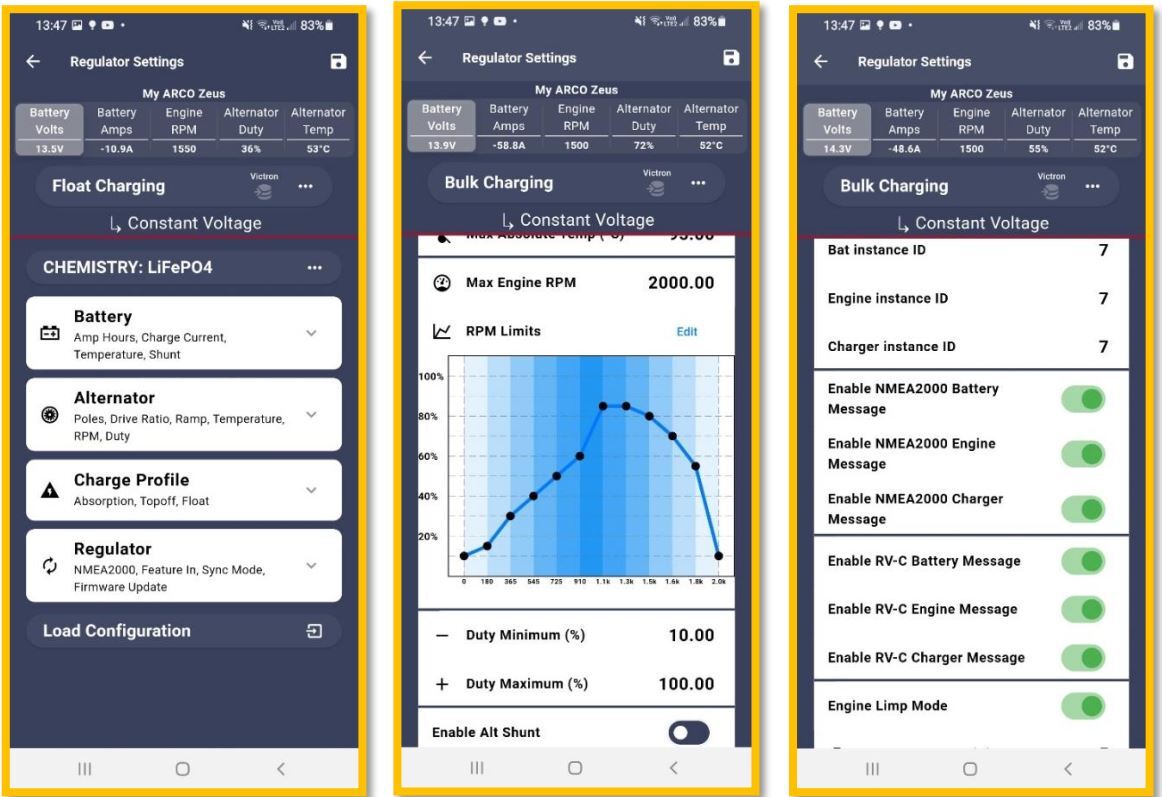

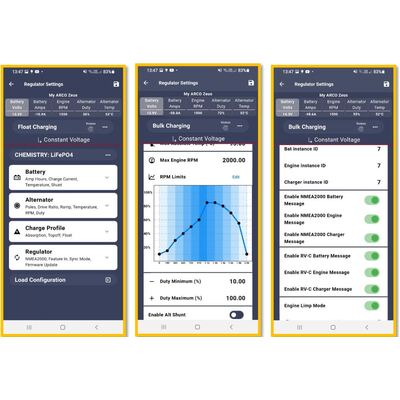

ARCO Zeus App

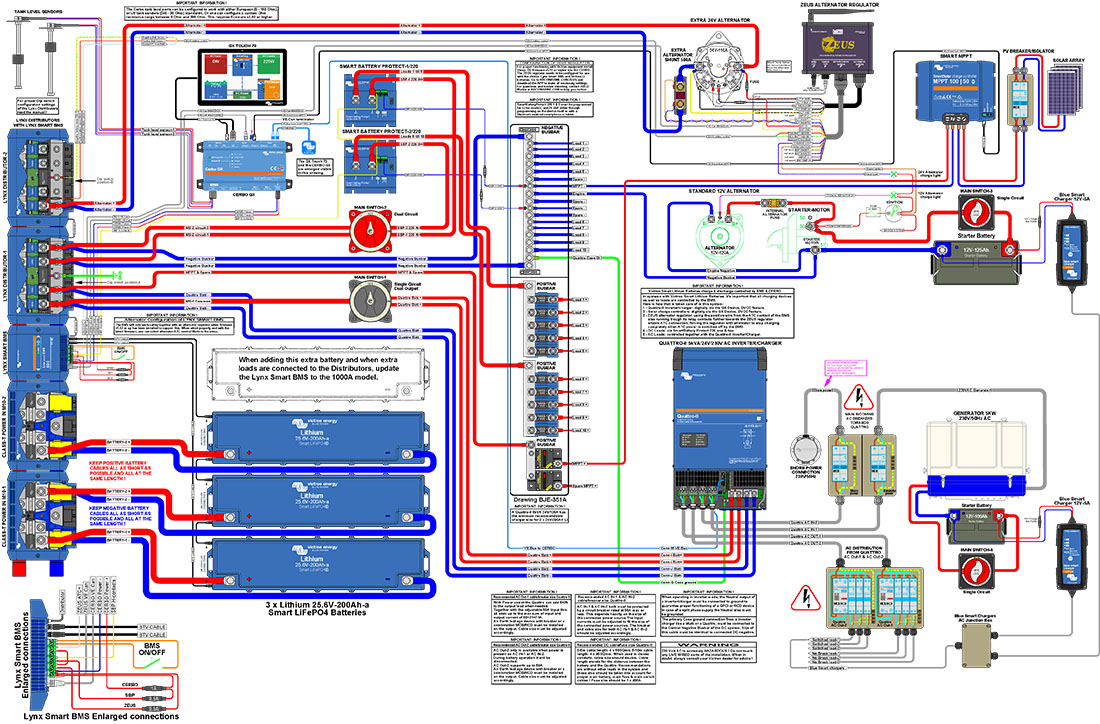

System schematics featuring Victron Energy and Arco Zeus
ARCO Zeus, the Fastest and Safest Way to Charge Your Batteries and Optimize Your Alternator
Technical Introduction to ARCO Zeus High Energy Alternator Regulator

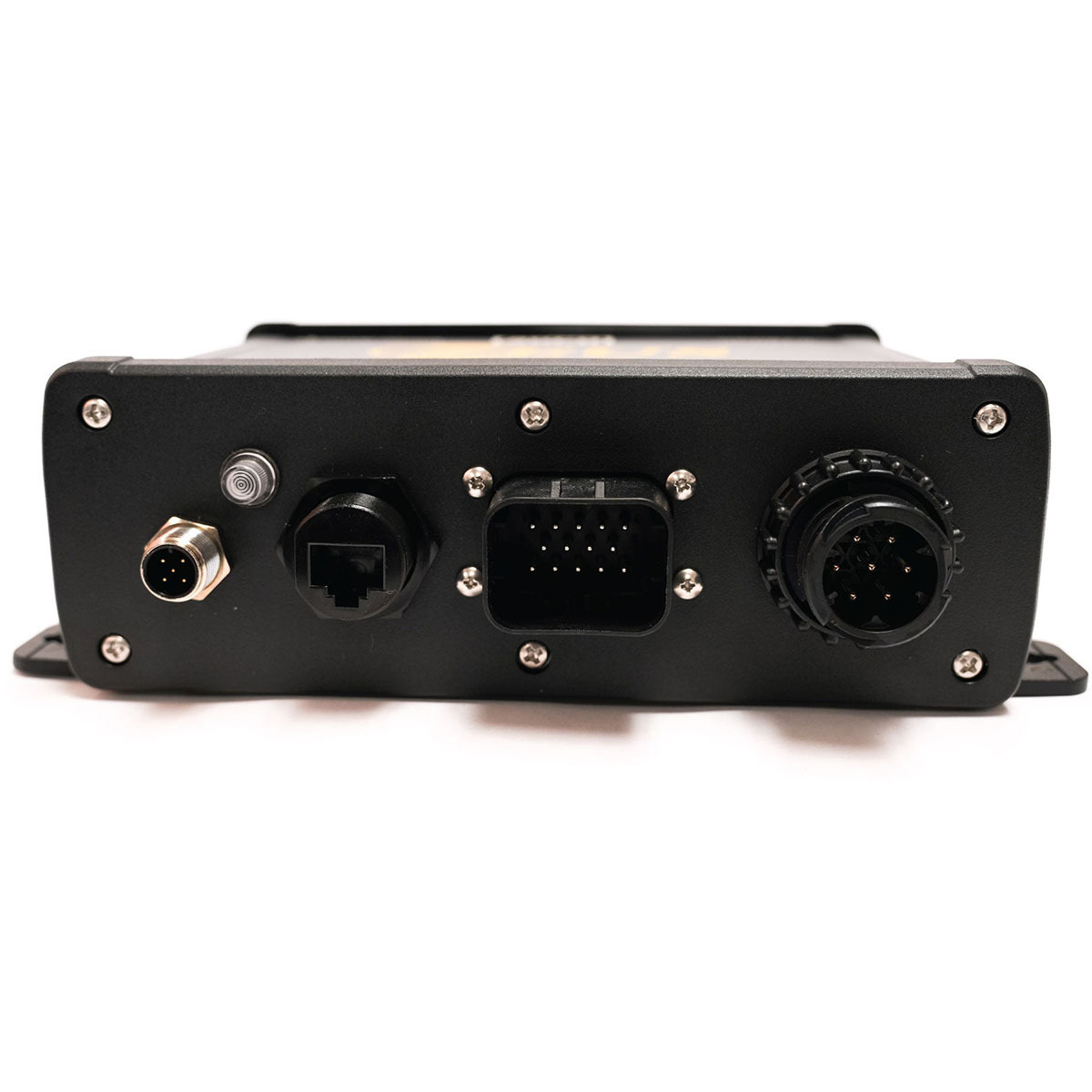

Connections | |
Bluetooth | Yes (Password Protected) |
2 Feature-in ports | To physically control user selectable options |
1 Feature-out ports | For lamp or control relay for multiple user options |
RJ45 | Yes |
NMEA 2000 | Yes |
2 CAN connections | Yes |
Dedicated Signal Wire | To disable charging from an external source such as BMS |
Management | Native Application built and managed by ARCO allows users to wirelessly install, monitor, system diagnose, and adjust settings. |
System Voltage | 12V, 24V, 36V, 48V |
State of Charge | Yes (SOC) |
CE mark | Yes |
Generator Mode™ | While in neutral and using less fuel, the alternator will maximize the engine’s power and put 100% of the field into charging batteries. |
P-Type (B-Circuit) and N-Type (A-Circuit) Compatible | Yes, with wiring harness included. |
Waterproof | Yes, IP 66/67 rating. |
Regulator Optimization | Only alternator regulator that measures and reacts to inputs from the Battery current and temperature and the Alternator current and temperature. |
Consistent Performance | Operates at maximum performance within safety limits set by the user - Once the battery bank is full, it will continue to maintain and supply house loads while maintaining the full capacity of the battery bank. |

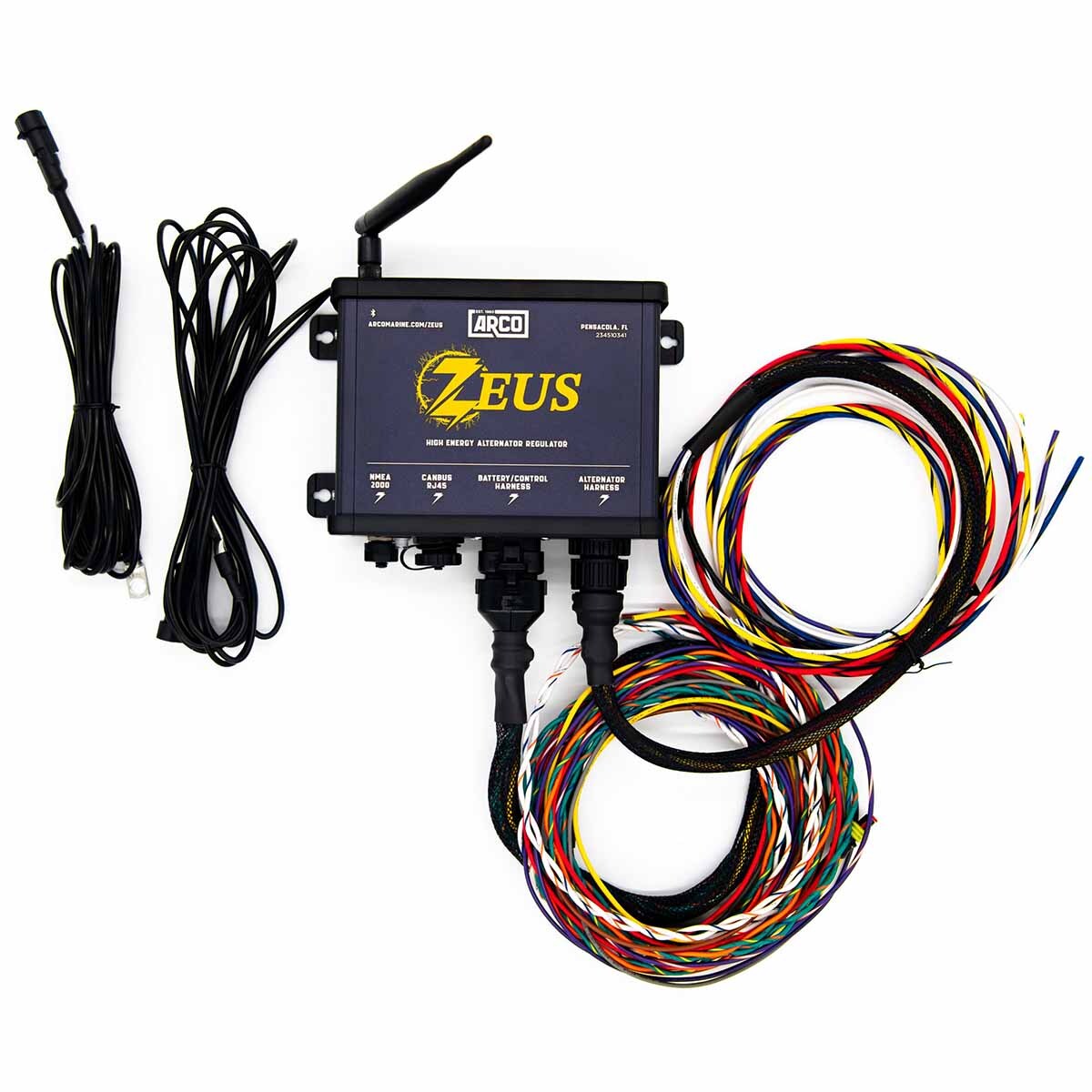

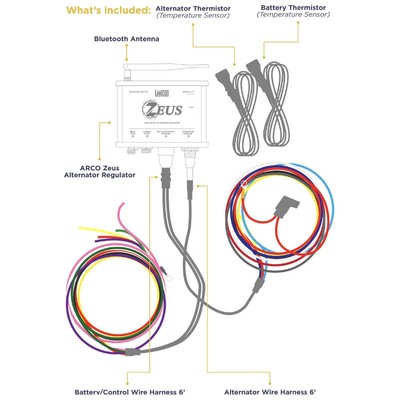

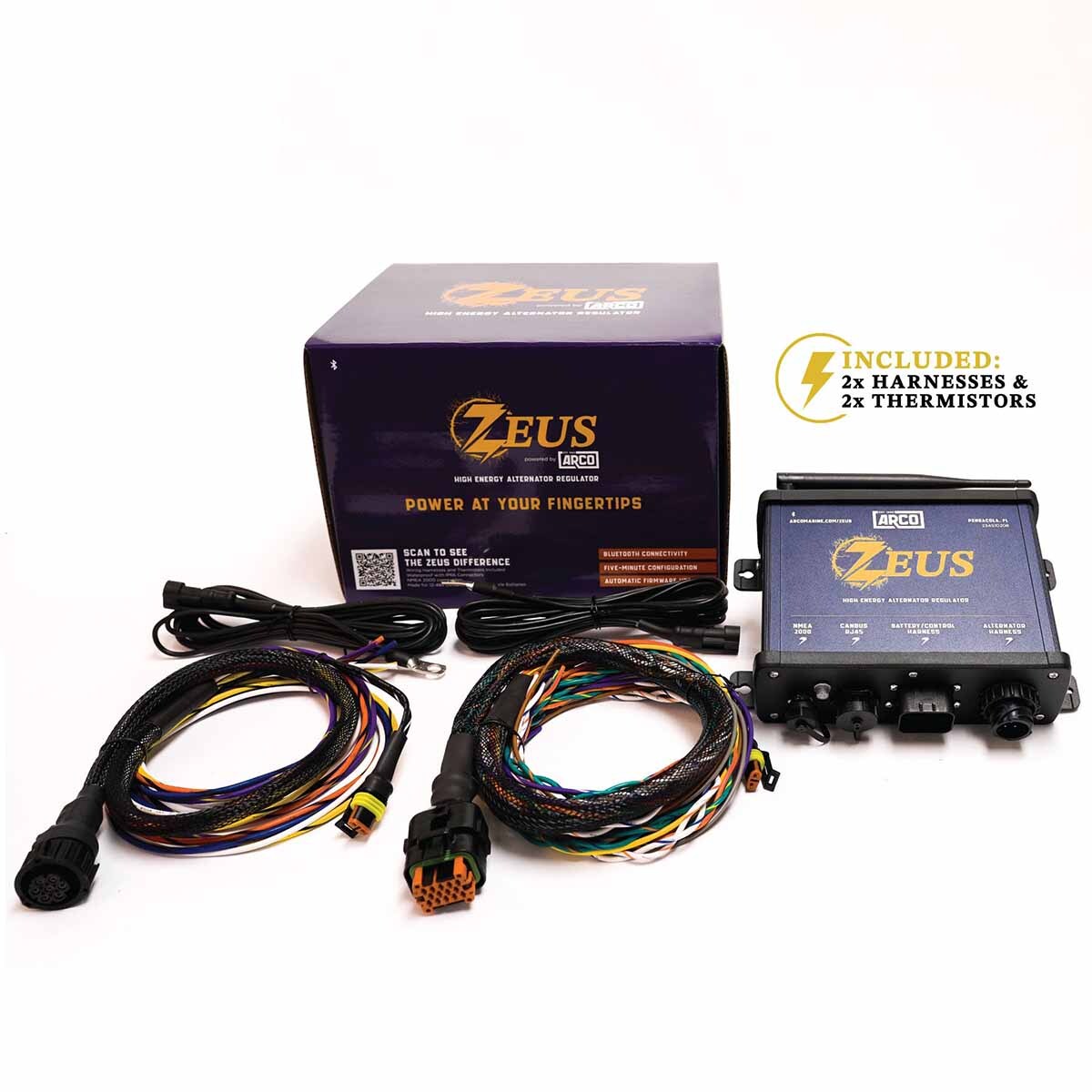

Included | Zeus High Energy Alternator Regulator, battery wiring harness, alternator wiring harness, 2 thermistors. |
Enclosure Dimensions | Without antenna: 208.28 mm x 149.86 mm x 60.96 mm (8.2" x 5.9" x 2.4") With antenna: 208.28 mm x 190.5 mm x 60.96 mm (8.2" x 7.5" x 2.4") |
Warranty | 2 Years |
Weight | 770g (1.7 lb) |
Operating Temperature | -20°C to 80°C |
SKU | ARC.ZEUS-1 |
Brand | Arco Marine |
Shipping Weight | 1.0000kg |
Shipping Width | 0.208m |
Shipping Height | 0.060m |
Shipping Length | 0.190m |
Shipping Cubic | 0.002371000m3 |
