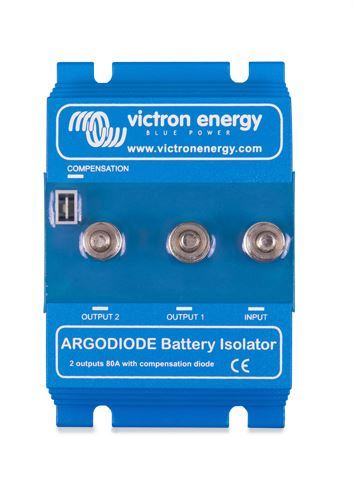

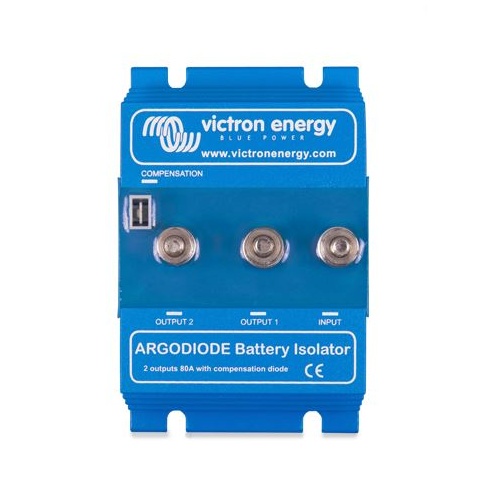

Argodiode Battery Isolators allow simultaneous charging of two batteries from one alternator, without connecting the batteries together. Discharging the accessory battery for example will not result in also discharging the starter battery.

The ArgoDiode battery isolators feature a low voltage drop thanks to the use of high-efficiency Schottky diodes: at low current, the voltage drop is approximately 0.3 V and at the rated output approximately 0.45 V

This Argodiode Battery Isolator is fitted with a compensation diode that can be used to slightly increase the output voltage of the alternator. This compensates for the voltage drop over the diodes in the isolator.



Argodiode Battery Isolator Specifications

80-2SC
Maximum charge current (A) 80
Maximum alternator current (A) 80
Number of batteries 2
Alternator Energize Input No
Connection M6 Studs
Compensation diode and
Energize connection		 6.3 mm
Faston
Weight kg 0.5
Dimensions h x w x d in mm 60 x 120 x 75



SKU VIC.ARG080202000
Model # ARG080202000
UPC/EAN 8719076018995
Brand Victron Energy
Shipping Weight 0.5800kg
Shipping Width 0.140m
Shipping Height 0.080m
Shipping Length 0.110m
Shipping Cubic 0.001232000m3
