To be used exclusively with the MC-620-H regulator with a 12V supply to the regulator.

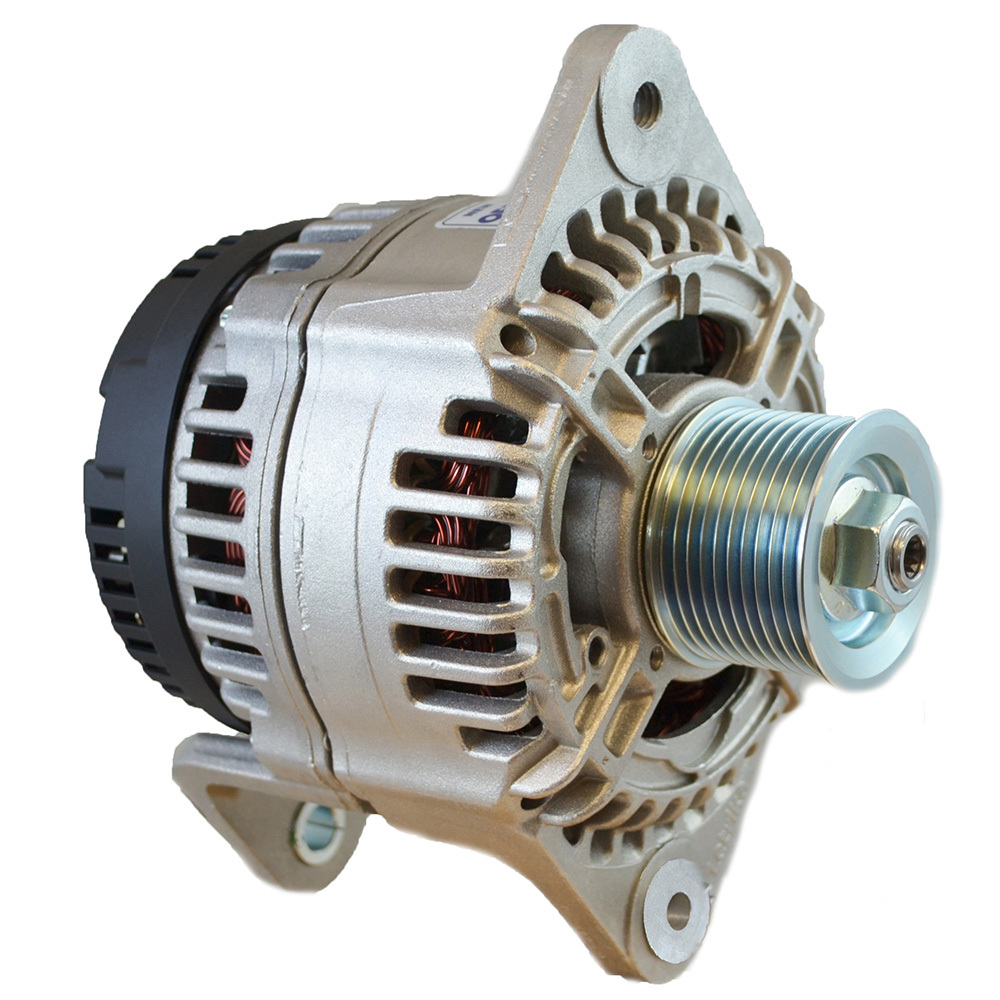

96-Series Alternator Specifications

  • Alternator Style: Large Case, Positive Field Excitation (P-Type)
  • AC/Stator Output: 12 Poles Stator Output Wire included in Pigtail Plug
  • Regulation: External P-Type (MC-620) The Alternator Will Not Operate without the MC-620 External Regulator. 12V Supply to Regulator Required
  • B+ Positive Output: Threaded Stud, M8 x 1.25”
  • B- Terminal: Threaded Stud, M6 x 1.0”
  • L Terminal: Threaded Stud, M5 x 0.8”
  • Cooling: Dual Internal Fans
  • Grounding: Case Ground
  • Bearings: Sealed Bearings, Heavy Duty Radial (front & rear)
  • Mounting Style: 4” Dual Foot Saddle (J-180)
  • Case Construction: Ventilated Cast Aluminum
  • Diodes +/-: 6 Positive, 6 Negative; 50A Rated
  • Finish: Clear Anodize Weight: 9kg (19.8 pounds)
  • Tensioning Arm Mount: 13mm (1/2”)
  • Mounting Foot Bore: 13mm (1/2”)
  • Normal Operating Temperature: 180oF / 82oC
  • Max Operating Temperature: 225oF / 108oC
  • Low RPM Cut-In: 60A: 1,325 rpm, 100A: 2,250 rpm
  • Max Alternator RPM: 12,000 rpm
  • Ignition Protection Ratings: TBD
SKU BAL.96-48-100-K8
Model # 96-48-100-K8
Brand Balmar
Shipping Weight 10.0000kg
Shipping Width 0.300m
Shipping Height 0.300m
Shipping Length 0.300m
Shipping Cubic 0.027000000m3
Unit Of Measure ea
