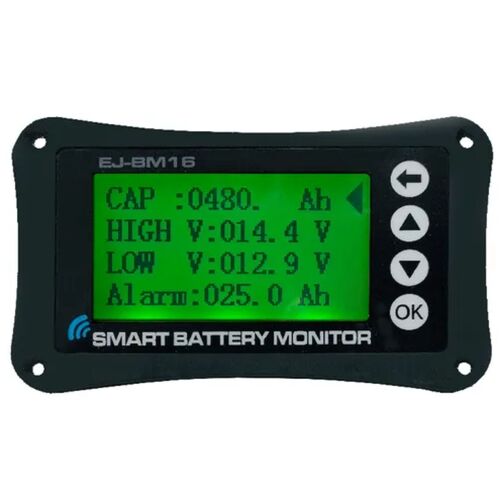

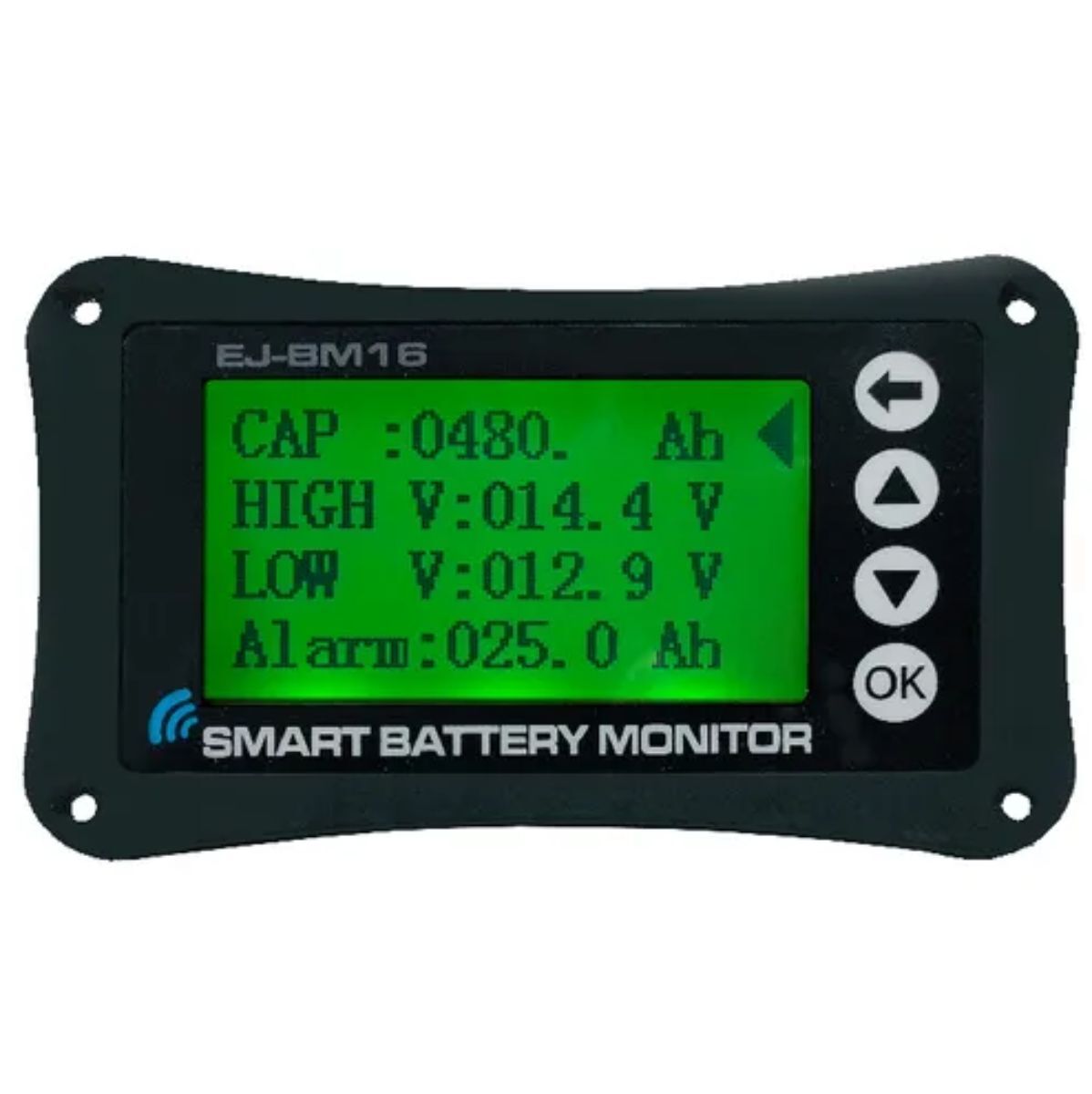

Battery Monitor, Bluetooth, Rectangle 500A
SKU: EJ.BM16-500 | MPN: BM16-500
SAVE $11.14 (5%)
Special OrderSpecial Order from Supplier
Non Returnable/Non Refundable
The BM16-500 Smart battery monitor is an advanced meter designed for accurate battery status monitoring. You can conveniently assess your battery's condition either via the display or through your Smartphone using the dedicated smart battery monitor App.
Utilizing a 500A current shunt, this monitor accurately gauges both discharge and recharge currents, providing precise calculations of Ampere-hours (Ah) entering and exiting the battery.
Real-time, high-precision voltage readings are obtained using a field-installed sense wire. The BM16-500 battery monitor is versatile and compatible with various battery types, including lithium and LiFePO4 batteries.
Features:
- Battery Monitoring: The BM16-500 allows you to monitor the voltage, current, and overall health of your battery.
- Bluetooth Connectivity: It comes equipped with Bluetooth technology, enabling wireless communication between the battery monitor and your smartphone.
- Real-time Data: The battery monitor provides real-time data on the battery's performance, allowing you to stay informed about its status at all times.
- Voltage Measurement: You can measure the battery's voltage accurately, helping you determine if it's fully charged or if it requires charging.
- Current Measurement: The device can measure the current flowing into or out of the battery, helping you assess the battery's usage and charging status.
- Capacity Monitoring: It allows you to monitor the remaining capacity of the battery, giving you an estimate of how much charge is left.
- Health Analysis: The battery monitor analyzes the battery's health and provides information on its overall condition, such as the state of charge, state of health, and internal resistance.
- Alerts and Notifications: You can set up customizable alerts and notifications to receive warnings when the battery voltage is too low, the current exceeds a certain threshold, or other relevant conditions are met.
- Historical Data: The device stores historical data, allowing you to review and analyze the battery's performance over time.
- User-Friendly Interface: The battery monitor features an intuitive interface, making it easy to navigate through the settings, view data, and customize preferences.
- Compact and Portable: With its rectangle shape and compact design, the battery monitor is easy to install and carry around.
- High Amperage Support: The device can handle high currents of up to 500A, making it suitable for monitoring batteries in various applications, such as automotive, marine, or industrial.
- Compatibility: The battery monitor is compatible with a wide range of battery types, including lead-acid, lithium-ion, AGM, gel, and more.
- App Integration: It integrates with the Smart Battery Monitor app, allowing you to access and control the battery monitor's functions conveniently from your smartphone.
- Data Logging: The battery monitor can log data over extended periods, enabling you to track long-term trends and identify any issues or patterns.
Contents:
- 1 x Smart Bluetooth LCD Display. ApproX 110 X 70mm
- 1 x 350 Amp (Cont.) - 500 Amp (Peak) Shunt
- 1 x 1m Extension Cable
- 1 x 1m Fused Battery sense wire
Displayed Data:
- Battery Capacity - Indicator
- Battery Voltage - Indicator
- Battery Current - Indicator
- Battery Power - Indicator
- Battery State of Charge (SOC)% - Indicator
- Charge & Discharge - Indicator
- Remaining Time
- Battery Alarm
500A Shunt Specs:
Specs | Min | Type | Max | Unit |
Working Voltage | 8.0 | 80.0 | Volts | |
Working Disspation | 10.0 | 12.0 | mA | |
Standby Dissipation | 0.5 | 0.8 | mA | |
Sleep Dissipation | 50.0 | 60.0 | uA | |
Capacity Accuracy | +/- 1.0 | % | ||
Voltage Accuracy | +/- 1.0 | % | ||
Current Accuracy | +/- 1.0 | % | ||
Backlight On Current | 40.0 | 50.0 | mA | |
Backlight Off Current | 40.0 | 40.0 | mA | |
Capacity Setting Value | 0.1 | 999 | Ah | |
Sampler Working Current | 50.0 | 500. | A | |
Temperature Range | 0 | 20 | 35 | Degree C |
Weight | 65.0 | grams | ||
Size | 59x20 | mm |
SKU | EJ.BM16-500 |
Model # | BM16-500 |
Shipping Weight | 0.0750kg |
Shipping Width | 0.113m |
Shipping Height | 0.017m |
Shipping Length | 0.068m |
Shipping Cubic | 0.000131000m3 |
Unit Of Measure | ea |
