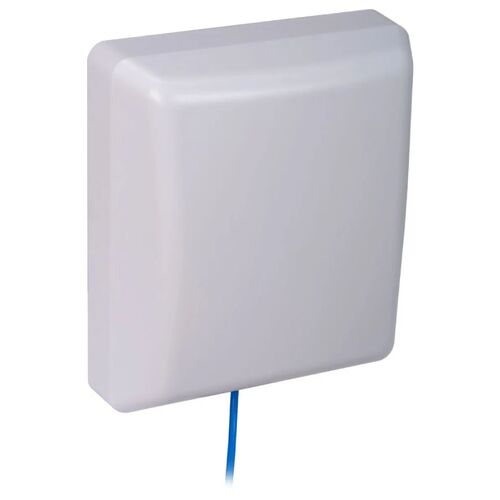

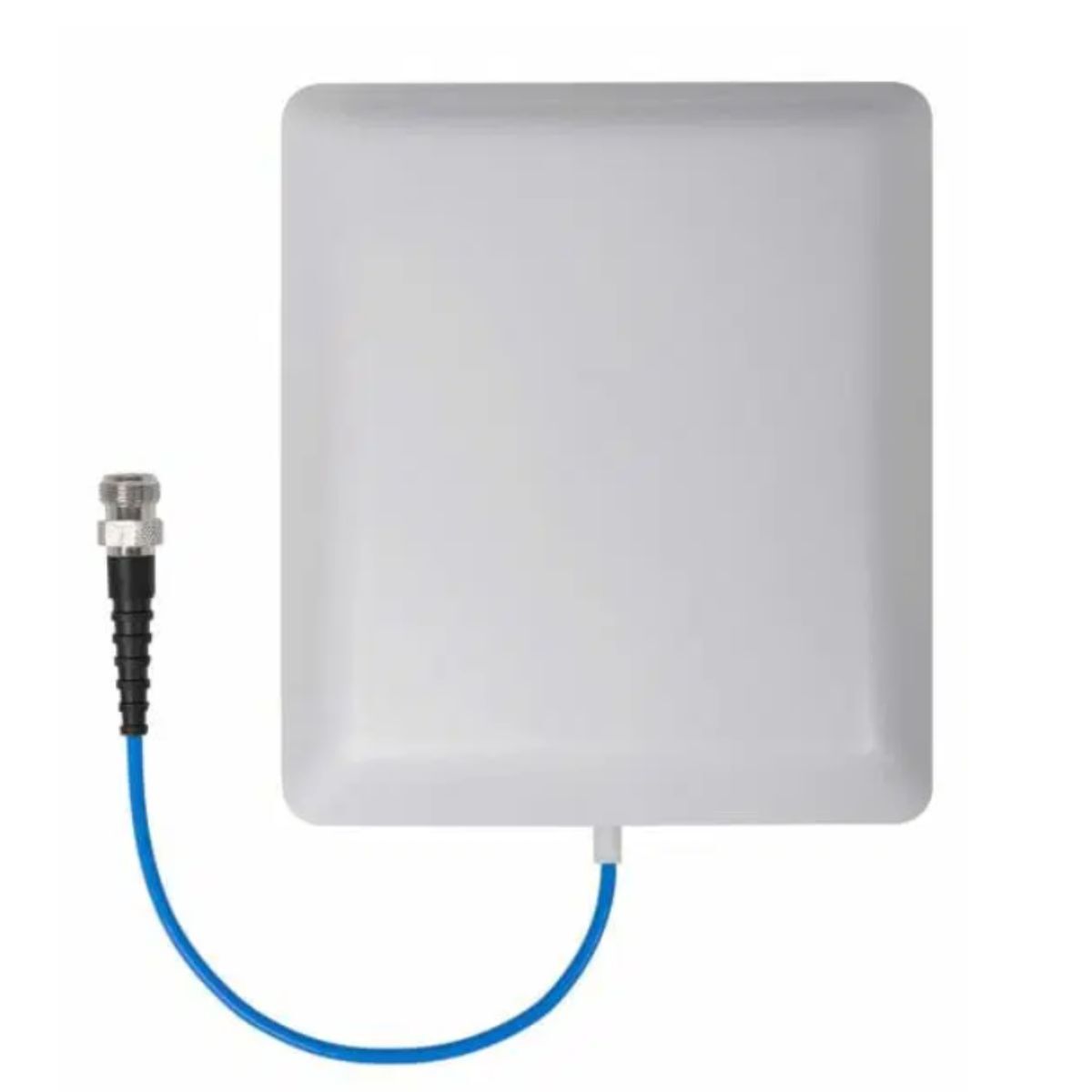

The Blackhawk Indoor Wall Mount Antenna is designed to provide mobile coverage inside a building when connected to a cellular repeater system. Indoor panel antennas are a lightweight and highly cost effective means of projecting mobile coverage in a forward direction. An example may be placing the panel antenna facing down a hallway or on the rear wall of a supermarket.

Indoor panel antennas are considered “semi-directional”, where they aim to provide a moderate 5 to 7 dBi gain, which makes sure coverage is transmitted in a wide arc (between 60 and 90° depending on frequency band).

The antenna supports all major 4G and 5G mobile networks globally and has a low-PIM design to broadcast multiple carriers from the one antenna.

FEATURES:

  • Provides a 5 dBi gain for 698 to 960 MHz
  • Provides a 7 dBi gain for 1710 to 4000 MHz
SKU PWT.ANT-BH-WAL
Brand Blackhawk Antennas
Shipping Weight 0.4000kg
Shipping Width 0.210m
Shipping Height 0.070m
Shipping Length 0.180m
Shipping Cubic 0.002646000m3
Unit Of Measure ea
