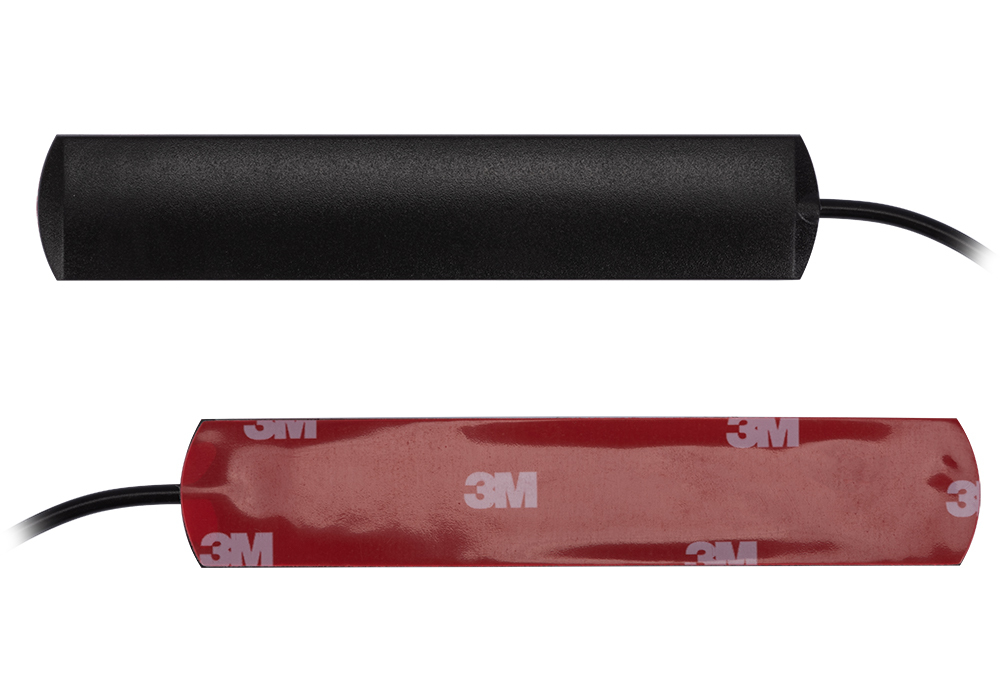

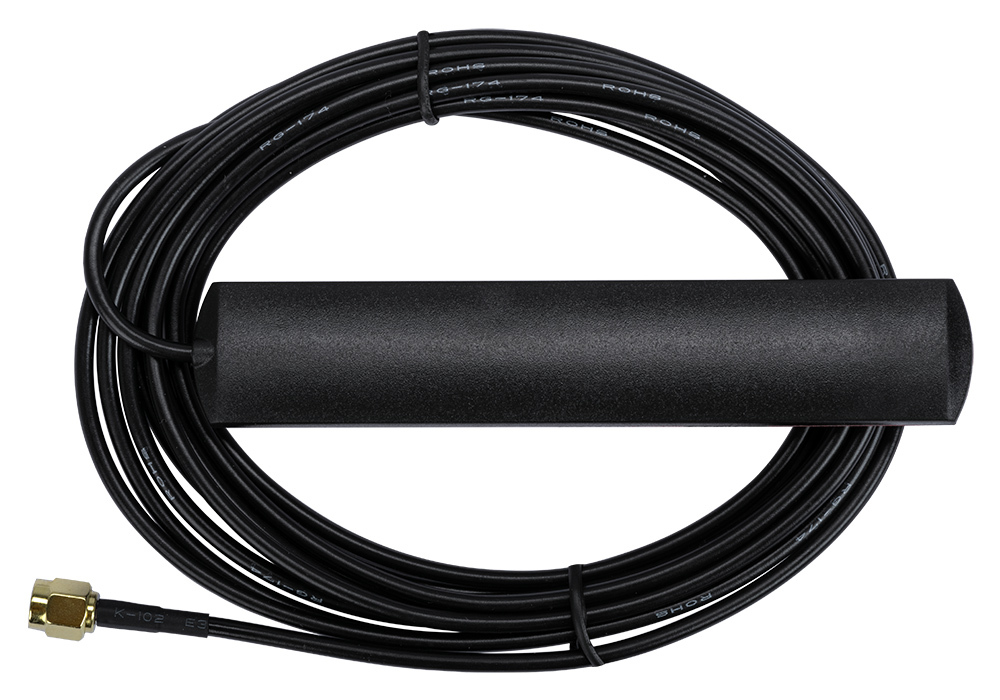

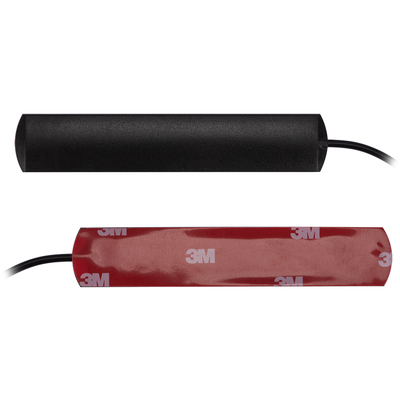

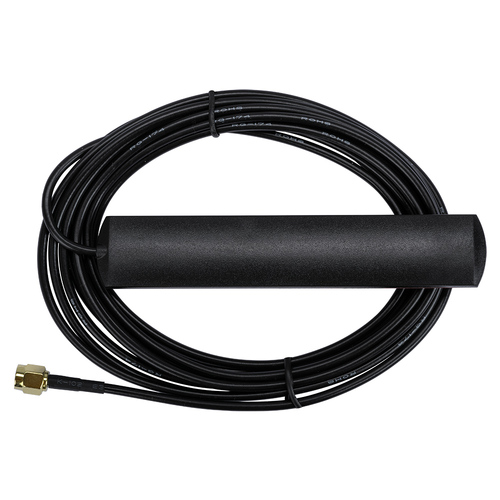

The Blackhawk 4G & IoT adhesive mount antenna is a modest performing mobile antenna that covers most worldwide 4G cellular bands between 700 and 2700 MHz. It is commonly used to improve 4G signal strength in metering and telemetry.

Adhesive antennas are compact in design which allows unobtrusive and convenient installation in vehicles, machinery, and electronic signage. This type of antenna design contains a simple PCB microstrip element which has been shaped to transmit across the entire wide operating frequency range with high efficiency. While peak gain is not an important consideration in this type of antenna, the model provides a stable gain of around 3 dBi which is quite typical of this design.

Outside of its use in IoT and telemetry, the antenna is a very popular choice as the service antenna for Cel-Fi GO repeaters installed in vehicles.

Antenna Feautres:

  • 3 dBi gain across lower bands 698 to 960 MHz
  • 3 dBi gain across upper bands 1710 to 2700 MHz
  • Mounting by 3M Adhesive
  • SMA Male connector
  • Cable length 3 metres
ELECTRICAL SPECIFICATIONS
Frequency Range (MHz) 698-960 / 1710-2700 MHz
Input Impedance 50 Ω
VSWR ≤3.0:1
Gain 3 dBi
Polarisation Type Linear
Radiation Direction Omnidirectional
Maximum Input Power 10 W

MECHANICAL SPECIFICATIONS
Antenna Length 115 x 21 x 3 mm
Cable 3000 mm
Connect Type SMA Male
Mounting 3M Adhesive
Radome Color Black
Cable RG174
Suction 70 g



SKU PWT.ANT-BH-00045
Brand Blackhawk Antennas
Shipping Weight 0.1000kg
Shipping Width 0.170m
Shipping Height 0.020m
Shipping Length 0.060m
Shipping Cubic 0.000204000m3
