This premium-grade cellular antenna will satisfy 3G and 4G capabilities for all major networks in Australia and can be used for commercial and industrial 3G and 4G applications.

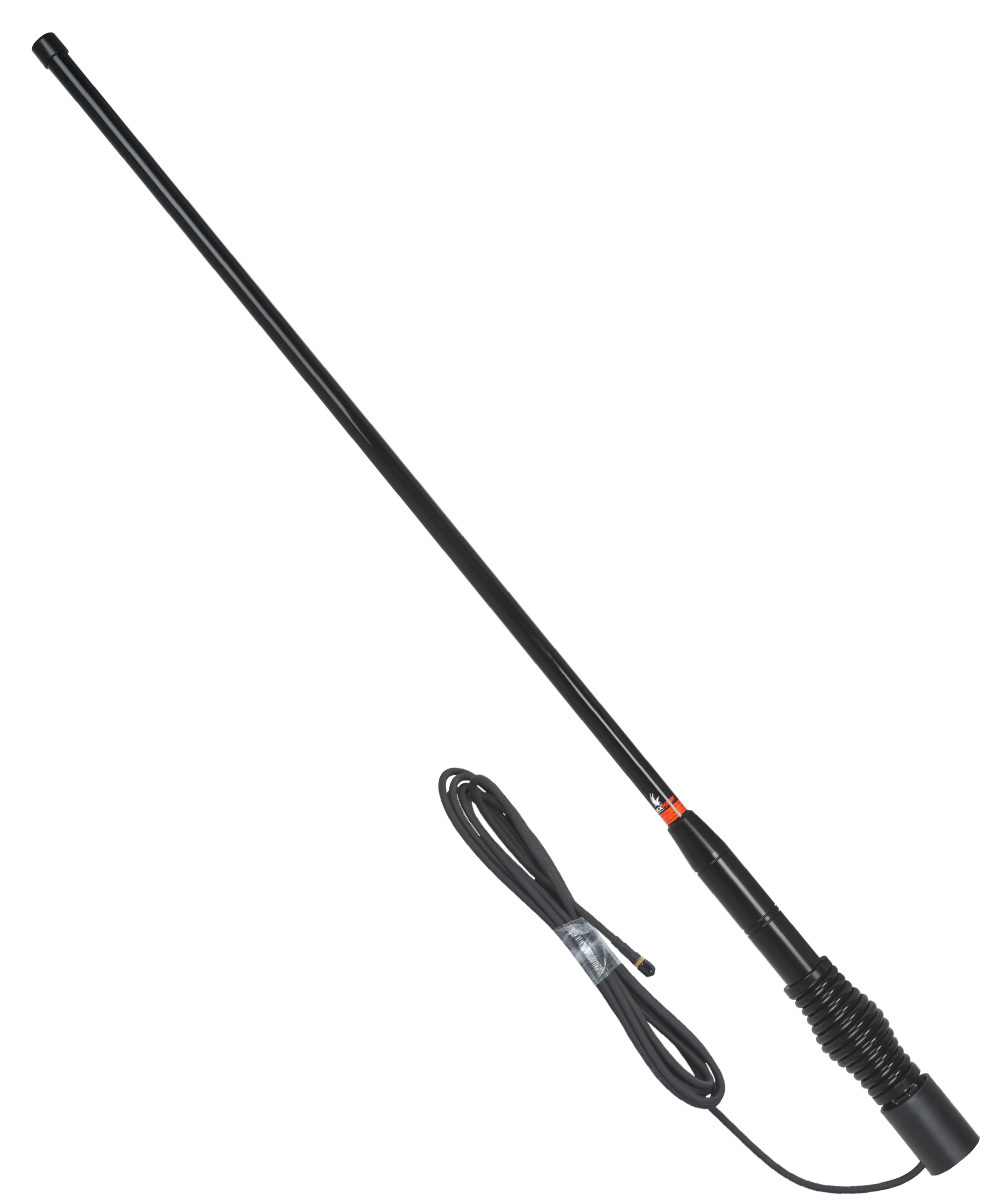

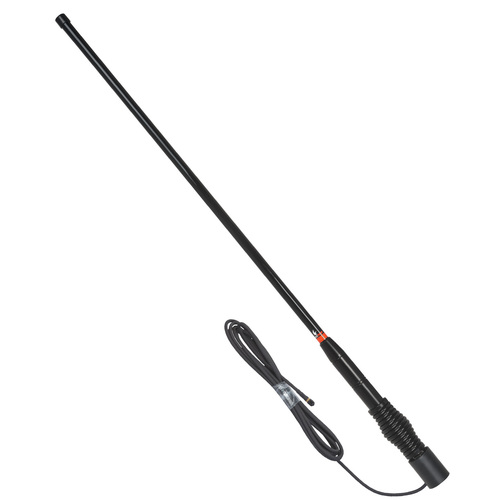

The Blackhawk Trucker Edge Antenna (950mm) will provide the perfect solution for voice and data applications where high gain antennas are required while on the move. Combine with Cel-Fi applications to never be out of contact when away from home.

FEATURES

  • 6 dBi gain across lower bands 698-960 MHz
  • 8 dBi gain across upper bands 1695-2200 MHz
  • Ruggedised construction for extreme conditions
  • Extra heavy-duty spring stainless steel base ideal for bull bar mount
  • Included are 4.5 metres of L-240 Ultra-Flex cable fitted with SMA Male connector
  • Futureproof for low-band 5G (NR850)
  • No tuning necessary

ELECTRICAL SPECIFICATIONS

Frequency Range 698-960 MHz / 1695-2200 MHz
Input Impedance 50 Ω
Peak Gain 6 / 8 dBi
VSWR ≤3.0:1 / ≤2.0:1
Polarisation Vertical
Horizontal Beamwidth 360° (omni-directional)
Vertical Beamwidth 22 / 12°
Maximum Input Power 50 W

MECHANICAL SPECIFICATIONS

Height 950 mm (925 mm bullbar mounted)
Weight 1.8 kg
Operating Temperature -40 to +65 °C
Termination 4.5 metre LMR-240, SMA Male
Material Fibreglass, Aluminium, Steel
Dimensions 950 x Ø20 mm
Antenna Colour Black
Rated Wind Velocity 210 km/h
SKU PWT.ANT-BH-OM-202TB-2
Brand Blackhawk Antennas
Shipping Weight 2.0000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 1.070m
Shipping Cubic 0.010700000m3
