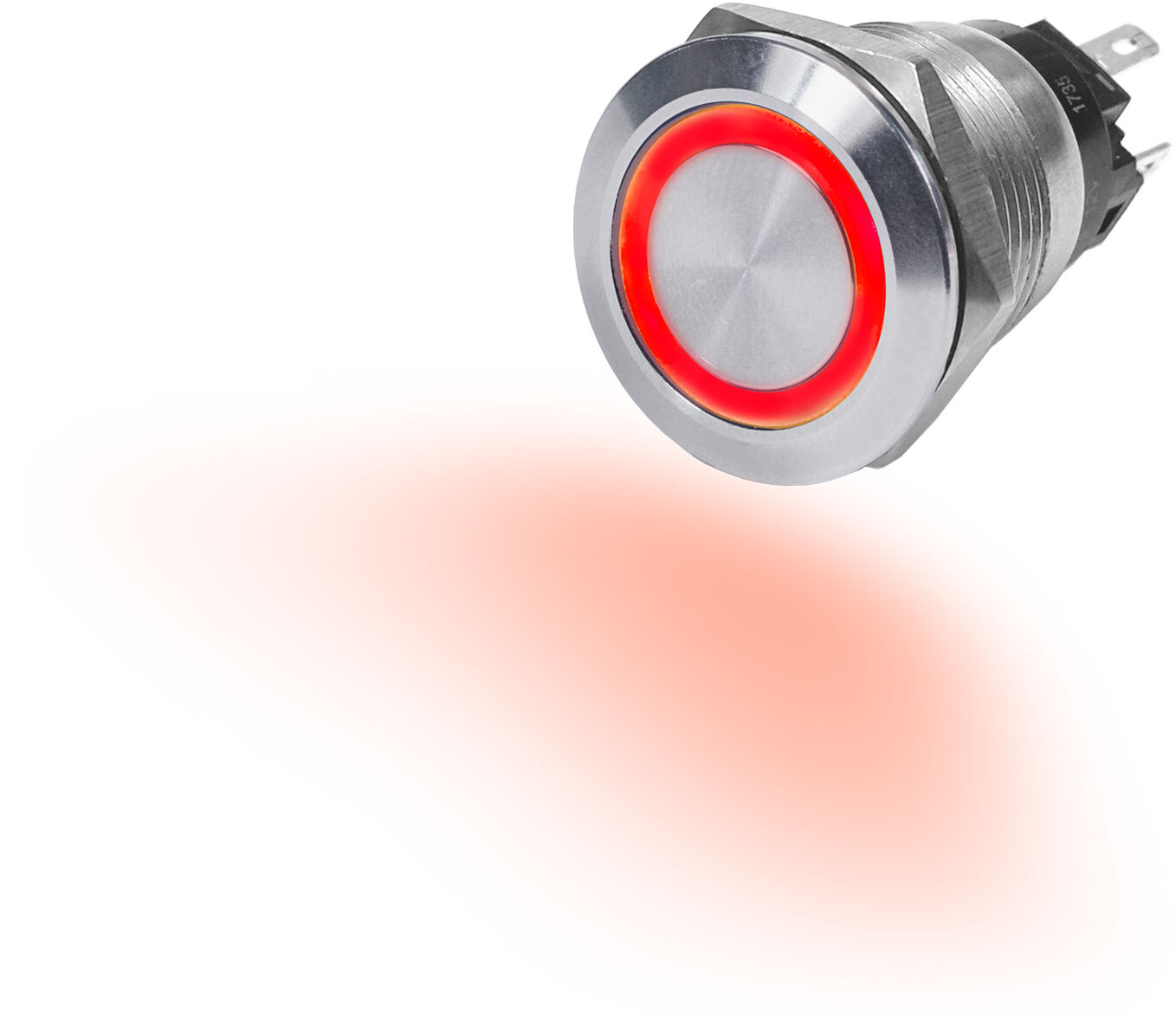

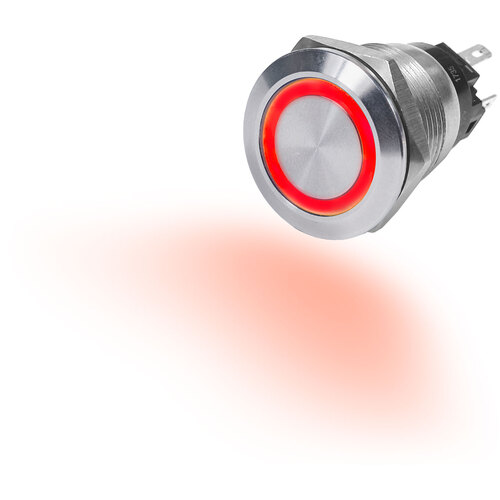

Red OFF-(ON) Momentary LED Ring Switch Features:

  • 10A Continuous
  • Single Pole Double Throw or Single Pole Single Throw
  • Can be wired for normally open or normally closed
  • Stainless Steel
  • Installs with .110inch quick connects (included)
  • Meets ISO 8846 Marine



Specifications
Action  OFF-(ON) Momentary
Amperage 10A @ 12V DC Resistive
3A @ 12V Inductive
Nominal Voltage 12V DC
Maximum LED Operating Current 20mA
Minimum Operating Temperature -30° C
Maximum Operating Temperature 70° C
Minimum Storage Temperature -55° C
Maximum Storage Temperature 85° C
Illumination Independent – Separate contacts for LED power
Max Panel Thickness 7.87 mm (0.31in)
Mounting Hole 19mm (¾” )
Switching Cycles 40,000
Termination 5 – 0.110inch Quick Connect terminals
Weight 0.09 kg (0.20lb)



Typical wiring diagram for normal ON-OFF function with the LED used as ON indication.
Typical wiring diagram for normal ON-OFF function with the LED used as ON indication.

Pin Descriptions
NC - Normally Closed ON when the switch is OFF
NO - Normally Open ON when the switch is ON
C - Common C is generally used as the power input connector
+ - LED Positive DC + input for the switch LED
- - LED Negative DC - input for the switch LED

Dimensioned Drawing

SKU BSS.4163
Model # 4163
Brand Blue Sea Systems
Shipping Weight 0.1000kg
Shipping Width 0.050m
Shipping Height 0.100m
Shipping Length 0.050m
Shipping Cubic 0.000250000m3
Unit Of Measure ea
