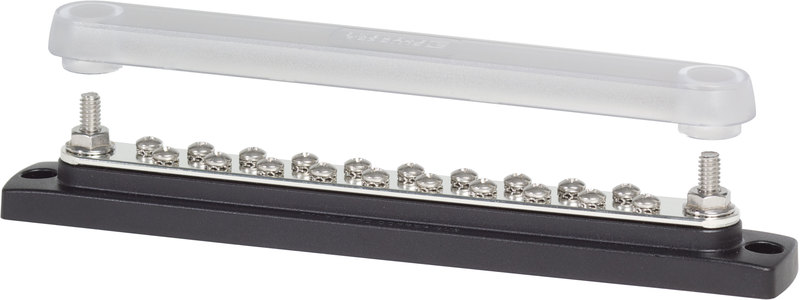

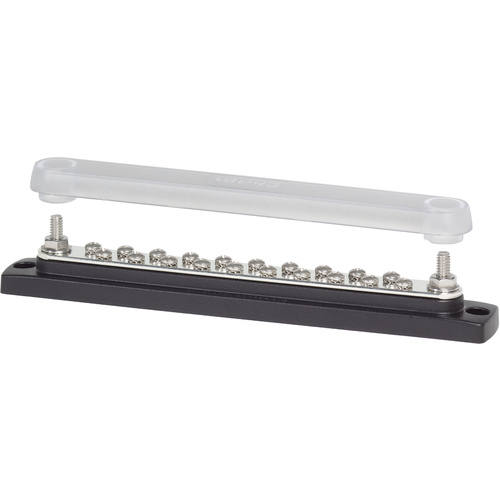

Common 150A BusBar - 20 Gang with Cover

The industry standard busbar for the collection of negative or AC ground circuits.

Insert-molded stainless steel stud eliminates need for securing nut and allows high torqueing for excellent electrical contact.

Specifications
Maximum Voltage 300V AC
48V DC
Number of Screw Terminals 20
Number of Terminal Studs 2
Terminal Type 1/4" Stud
#8-32 Screw
Continuous Rating  130A AC
150A DC
Base Material UL 94-V0 Rated, Glass Reinforced Thermoplastics
Bus Material Tin-Plated Copper CDA 110 / UNS 11000
Cover Material Clear Polycarbonate
Screw Terminal Torque 15 in-lb (1.69 Nm)
Stud Torque 60 in-lb (6.78 Nm)
Weight 0.57lb (0.26 kg)



SKU BSS.2312
Model # 2312B
UPC/EAN 632085023126
Brand Blue Sea Systems
Shipping Weight 0.2600kg
Unit Of Measure ea
