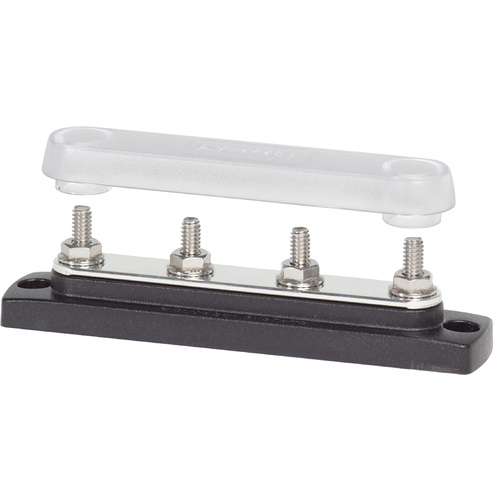

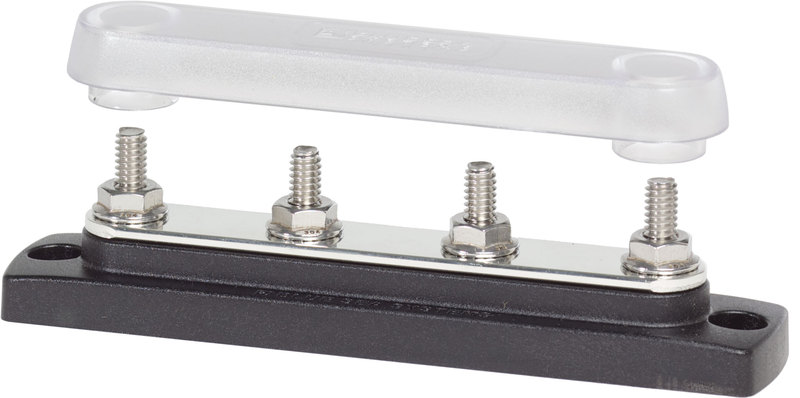

Common 150A BusBar - Four 1/4"-20 Studs with Cover

The industry standard busbar for the collection of negative or AC ground circuits.

Insert-molded stainless steel stud eliminates need for securing nut and allows high torqueing for excellent electrical contact.

Specifications
Maximum Voltage 300V AC
48V DC
Number of Terminal Studs 4
Terminal Type 1/4" Stud
Continuous Rating  130A AC
150A DC
Base Material UL 94-V0 Rated, Glass Reinforced Thermoplastics
Bus Material Tin-Plated Copper CDA 110 / UNS 11000
Cover Material Clear Polycarbonate
Stud Torque 60 in-lb (6.78 Nm)
Weight 0.39lb (0.18 kg)



SKU BSS.2307
Model # 2307B
UPC/EAN 632085023072
Brand Blue Sea Systems
Shipping Weight 0.1800kg
