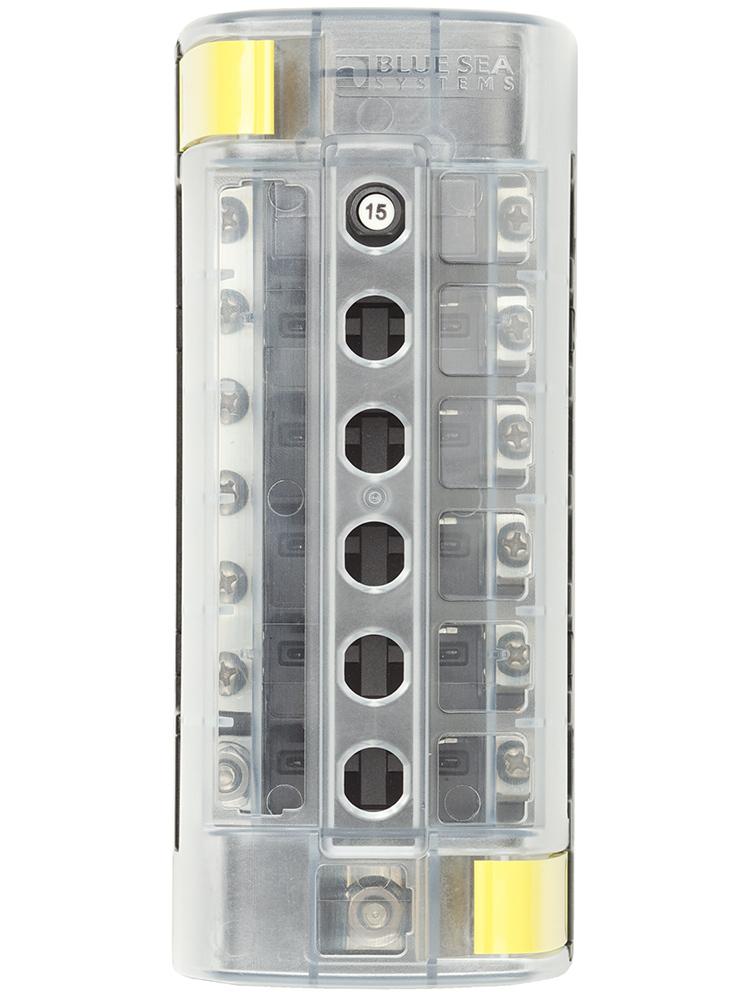

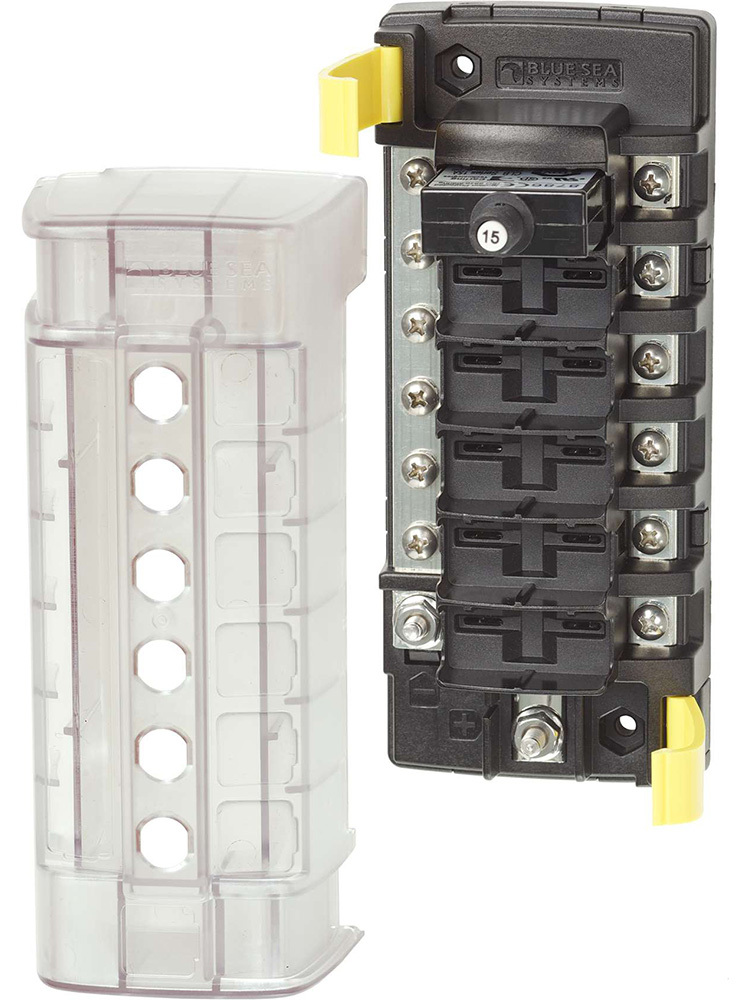

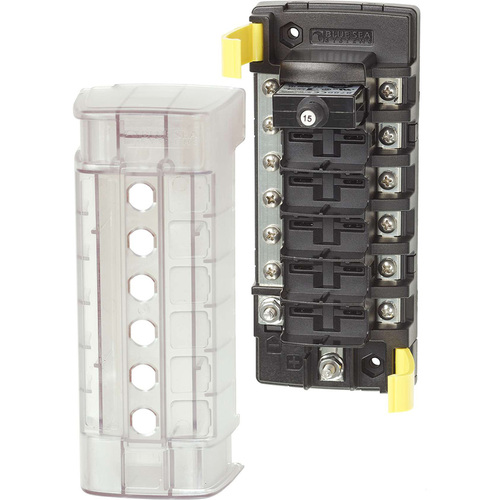

The advantage of a resettable circuit breaker over a fuse is well known however people find circuit breakers more expensive and difficult to install. The ST CLB Circuit Breaker Block solves this issue by using the compact, snap-in-place CLB resettable circuit breaker which makes breakers as easy to install as a fuse.


ST CLB Circuit Breaker Block Features

  • Quick connect clips allow circuit breakers to snap easily into place
  • Tin-plated copper busses and screw terminals
  • Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
  • Easy to open clip on cover
  • Breakouts allow wire access in two directions
  • Accepts ring terminals
  • Optional push button waterproof boots or dress nuts can be installed over cover
  • Accepts square labels



*Note: Fuses and Labels sold separately



Specifications
Circuits 6
Maximum Amperage 100A (per block)
32A (per circuit)
Maximum Voltage 32V DC
Mounting #8 Screw (M4) or #8 Nut
Negative Bus #10-32 Stud
Positive Bus #10-32 Stud
Source Common Source
Minimum Operating Temperature -10° C
Maximum Operating Temperature 60° C
Mounting Centers 5.63in (143 mm)
Screw Terminal Type #8-32 Screws with Captive Star Lock Washer
SKU BSS.5052
Model # 5052B
UPC/EAN 632085050528
Brand Blue Sea Systems
Shipping Weight 0.3400kg
