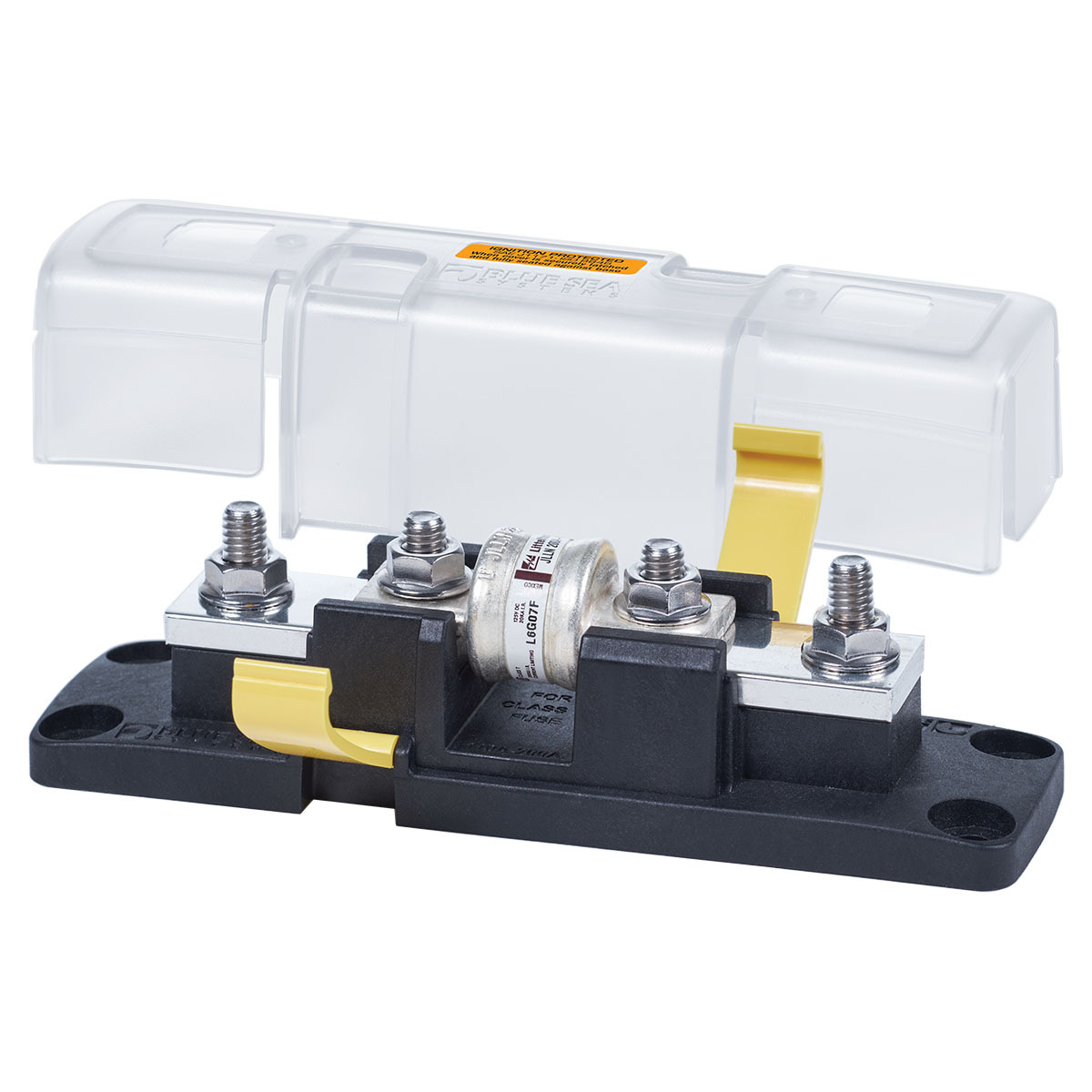

Class T Fuse Block with Insulating Cover - 110 to 200A

  • Permits the use of Class T fuses for rapid circuit protection of inverters and electronics.
  • Four-stud design allows ample access around connecting stud for easy installation of large cable lugs without obstruction from the fuse.
  • Insulating cover meets ABYC/USCG insulation requirements.
  • Cover breakouts provide wire access in any direction.
  • Stud design ensures secure fuse mounting, even in high-heat conditions.
  • Stainless steel studs resist corrosion and handle high torque.
  • One-piece stainless flange nuts for safe and secure connections.
  • UL 94-V0 base resists high heat.
  • Ignition Protected.

Optional Accessories

  • 5112 Fuse A3T / Class T 110 Amp
  • 5113 Fuse A3T / Class T 125 Amp
  • 5114 Fuse A3T / Class T 150 Amp
  • 5115 Fuse A3T / Class T 175 Amp
  • 5116 Fuse A3T / Class T 200 Amp
Specifications
Cable Size Up to 4/0 AWG
Ignition Protected Yes
Maximum Amperage 160A
Maximum Voltage 160V DC
Fuse Mounting Blocks Tin-Plated Copper
Maximum Torque 190 in-lb (21.47 Nm)
72 in-lb (8.13 Nm)
Mounting Fastner Size 1/4" or M6 Hardware
Terminal Stud Size 1/4"-20 (M6)
Weight 1.10lb (0.5 kg)
SKU BSS.5007100
Model # 5007100
Brand Blue Sea Systems
Shipping Weight 0.5000kg
3 years
