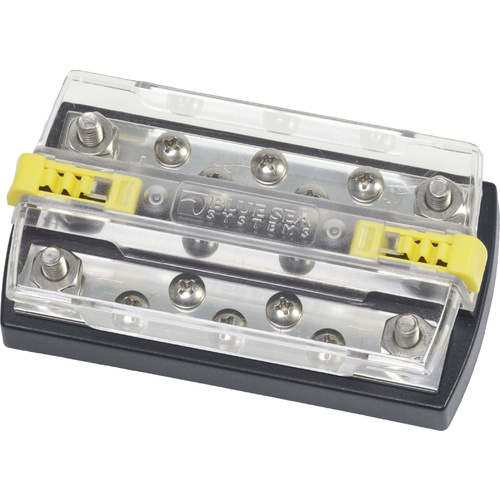

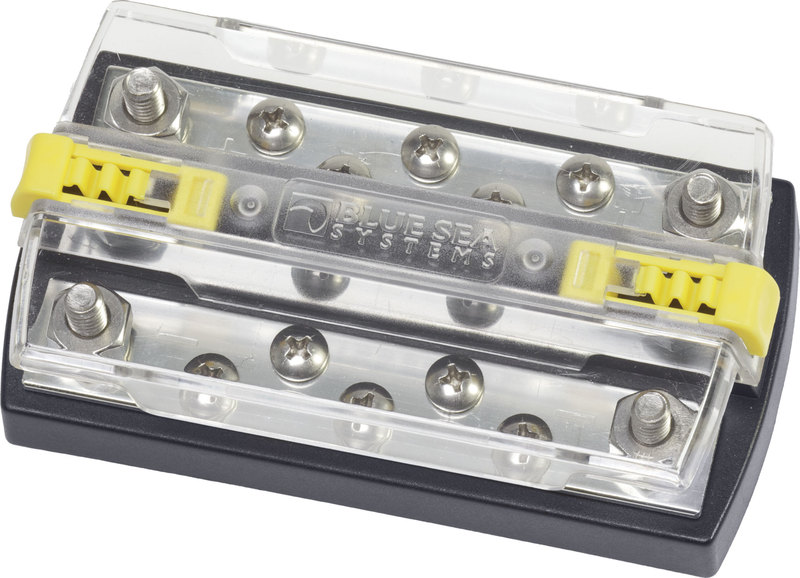

• Combines negative and positive buses on one block
  • Clear polycarbonate cover snaps on to meet Coast Guard and ABYC insulation requirements





Specifications
Maximum Voltage 300V AC
48V DC
Number of Screw Terminals 5 per bus
Number of Terminal Studs 2 per bus
Terminal Type #10-32 Screw
1/4" Stud
Continuous Rating 130A AC
150A DC
Base Material UL 94-V0 Rated, Glass Reinforced Thermoplastics
Bus Material Tin-Plated Copper CDA 110 / UNS 11000
Cover Material Clear Polycarbonate
Mounting Screw #10 (M5)
Screw Terminal Torque 18 in-lb (2.03 Nm)
Stud Torque 60 in-lb (6.78 Nm)
Weight 0.61Lb (0.28 Kg)
Weight 0.66lb (0.3 kg)
SKU BSS.2722
Model # 2722B
UPC/EAN 632085027223
Brand Blue Sea Systems
Shipping Weight 0.3000kg
