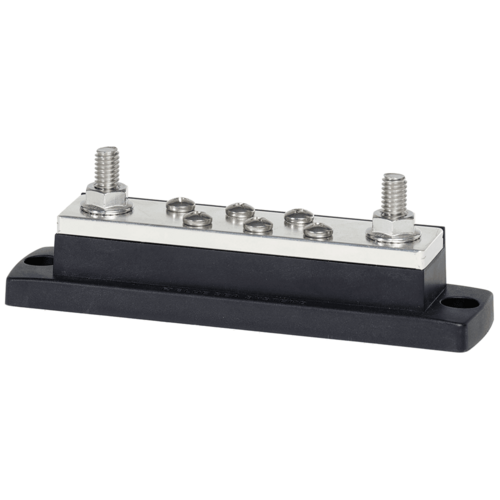

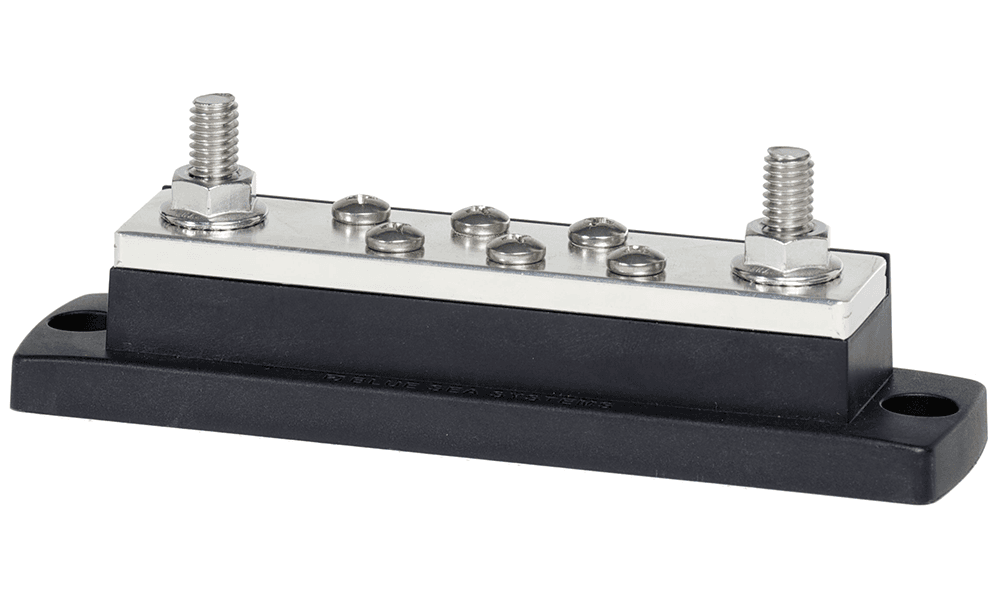

MaxiBus 250A BusBar - Two 5/16"-18 Studs and Six #10-24 Screws

Busbars are used to consolidate multiple wires or feed multiple circuits

  • Insert molded stainless steel studs eliminate need for securing nut and allow high torquing for excellent electrical contact
  • Raised bus provides easy access to multiple wires on a single stud
  • UL 94-V0 rated base material resists high heat
  • Recessed mounting holes eliminate accidental shorts to aluminum and steel mounting surfaces



Specifications
Maximum Voltage 300V AC
48V DC
Number of Screw Terminals 6
Number of Terminal Studs 2
Terminal Type #10-24 Screw
5/16"-18 Stud
Continuous Rating 250A
Base Material UL 94-V0 Rated, Glass Reinforced Thermoplastics
Bus Material Tin-Plated Copper CDA 110 / UNS 11000
Recommended Screw Torque 23 in-lb (2.6 N·m)
Recommended Stud Torque 132 in-lb (14.91 N·m)
Weight 0.80lb (0.36 kg)



SKU BSS.2128
Model # 2128B
UPC/EAN 632085021283
Brand Blue Sea Systems
Shipping Weight 0.3600kg
3 years
