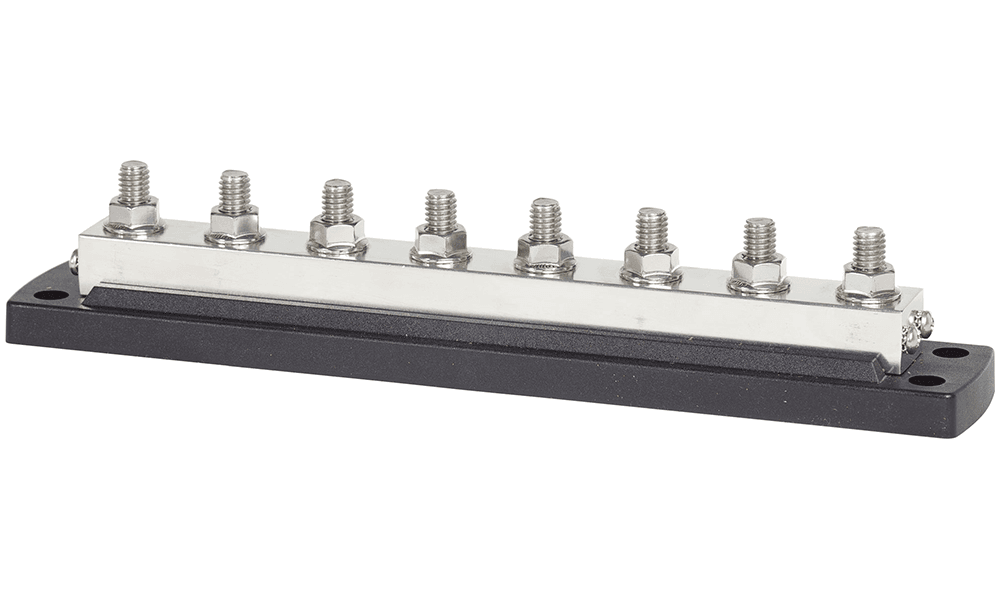

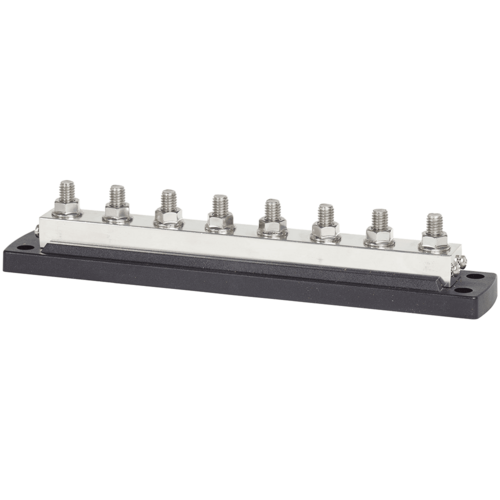

PowerBar 600A BusBar - Eight 3/8"-16 Studs

Provides compact high-amp busing.

Specifications
Maximum Voltage 300V AC
48V DC
Number of Terminal Studs 8
Terminal Type 3/8"-16 Stud
Terminal Stud Torque 140 in-lb (15.82 Nm)
Continuous Rating 545A AC
600A DC
Base Material UL 94-V0 Rated, Glass Reinforced Thermoplastics
Bus Material Tin-Plated Copper CDA 110/UNS11000
Screw Terminal Torque 15 in-lb (1.69 Nm)
Stud Torque 140 in-lb (15.82 Nm)
Weight 2.75Lb (1.25 Kg)
Weight 2.75lb (1.25 kg)



SKU BSS.2107
Model # 2107B
UPC/EAN 632085021078
Brand Blue Sea Systems
Shipping Weight 1.2500kg
