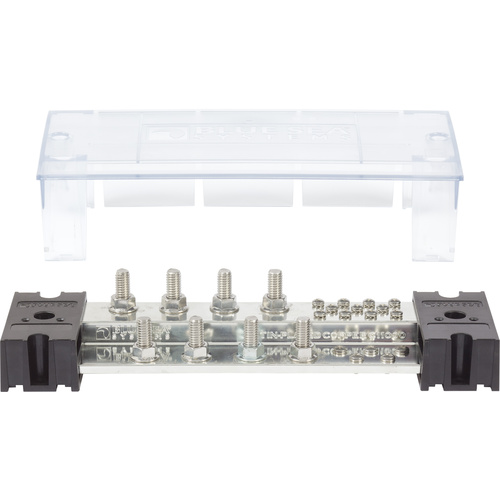

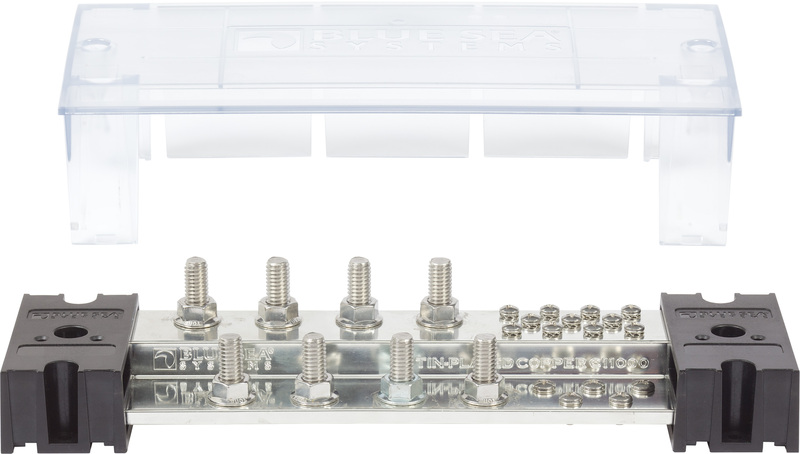

Complex wiring systems require a single point to consolidate large and small conductors. The PowerBar 1000 offers a 1,000 Amp busbar with various size studs and screws to connect conductors and fuse blocks.

  • 1,000 Amp busbar for large complex wiring systems
  • Tin plated pure electrical copper for maximum conductivity
  • Stepped bus design offers two elevations for conductors which doubles
  • the density of the wire loom compared to traditional bus bars
  • Busbar and fuse block elevations match common fuse blocks allowing for multiple fuse block attachment, eliminating the need for connecting cables
  • One-piece serrated flange nuts ensure correct and secure connections
  • Stainless steel 8-32 screws with captive lock washers for securing smaller gauge wires
  • Busbar may be cut to a shorter length to accommodate constricted spaces
  • Bi-directional busbar end caps allow the ganging of additional busbars
  • Snap on insulating cover meets ABYC and USCG requirements and includes label recess

Specifications Maximum Voltage 150V Number of Terminal Studs 8 Terminal Type 3/8" - 16 Stud Terminal Stud Torque 140 in-lb (15.82 Nm) Continuous Rating The maximum current a switch is designed to conduct for an indefinite period. 1000A Base Material UL 94-V0 Rated, Glass Reinforced Thermoplastics Bus Material Tin-Plated Copper C11000 Mounting Holes Accepts #10 (M5) Screws Screw Terminal Torque 15 in-lb (1.69 Nm) #8-32 18 in-lb (2.03 Nm) #10-32 Terminal Screws #10-32 #8-32 Weight 6.00lb (2.72 kg)

SKU BSS.1990
Model # 1990
UPC/EAN 632085019907
Brand Blue Sea Systems
Shipping Weight 2.7200kg
3 years
