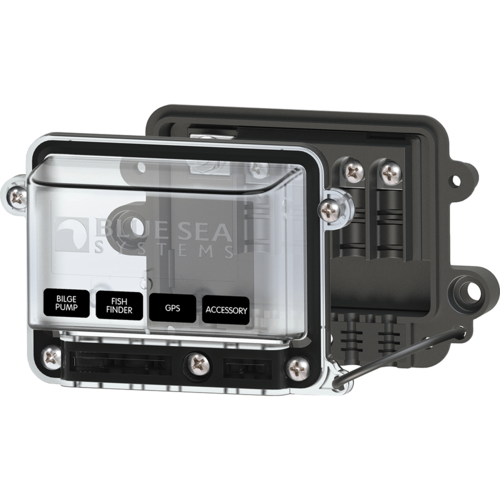

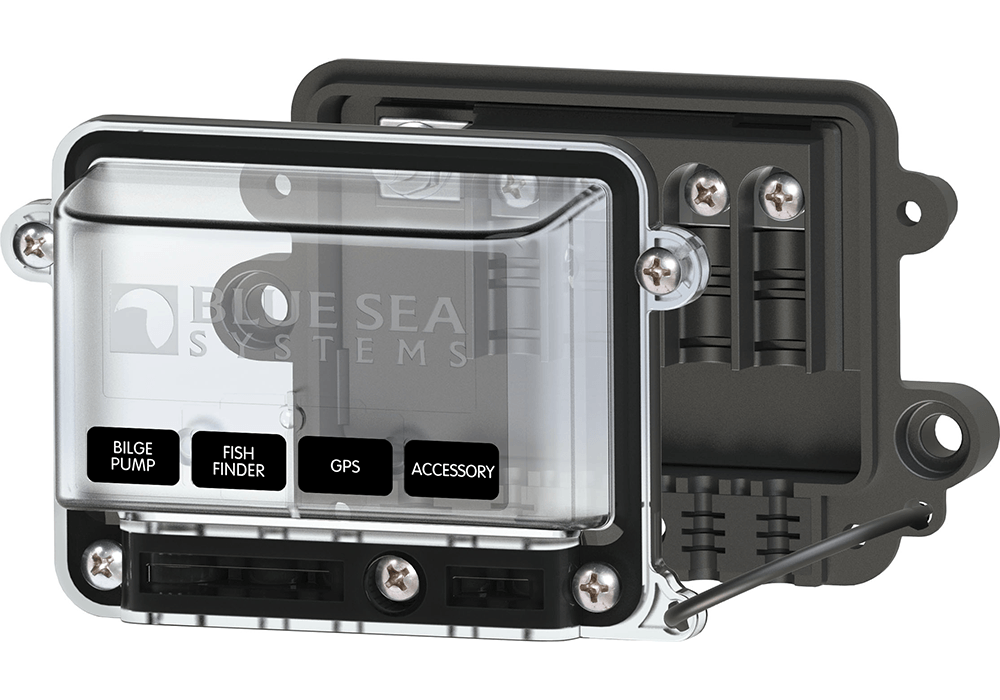

Provides secure water-resistant bussing for harsh environments. The single side nesting design allows for wire entry from one side to maximise space.

  • Water-resistant design with standard ring or fork type terminals allows for simple wiring with standard tools.
  • Accepts a wide range of wire sizes
  • Includes 3 wire plugs to maintain water-resistant rating if less than 4 wires are used
  • Nests with other Water-Resistant 100A Common BusBars and ST-Blade Water-Resistant Fuse Block for space saving wiring
  • Ideal for positive distribution and for the collection of negative or AC ground circuits
  • Insulating cover meets ABYC/USCG insulation requirements
  • Tin-plated copper busses and fuse clips
  • Small format standard labels available

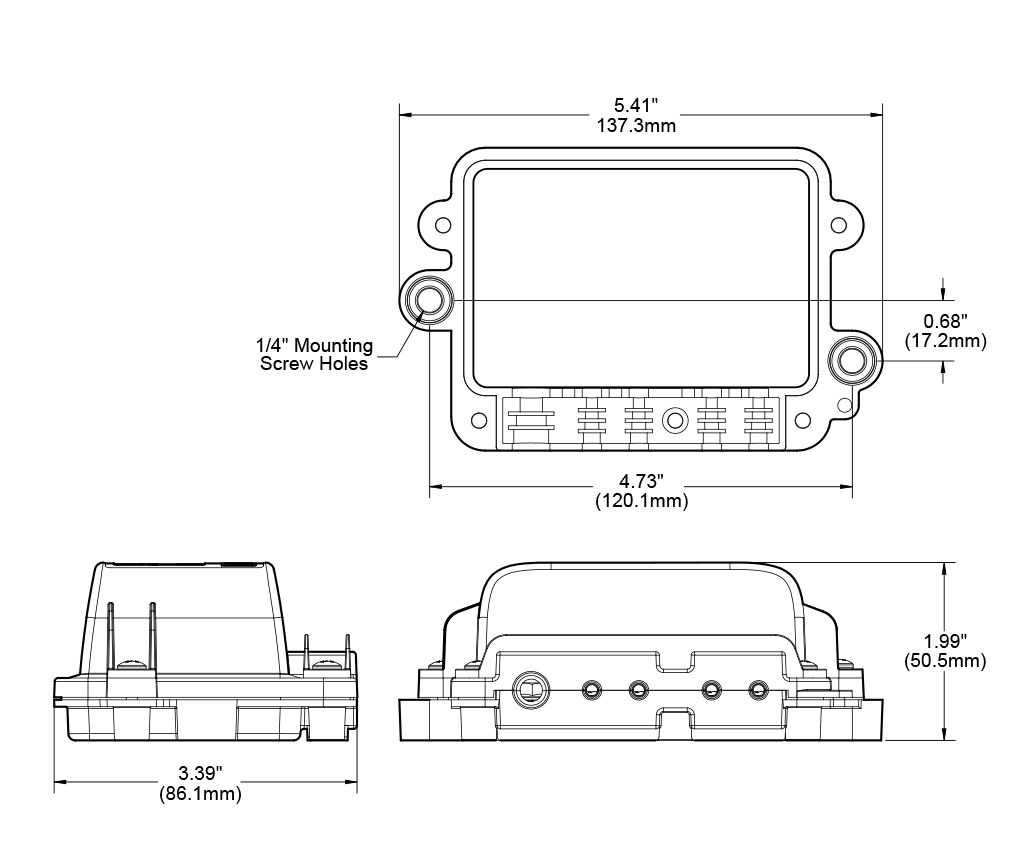

Specifications
Cover Yes
Maximum Voltage 300V AC
48V DC
Continuous Rating 100A AC
100A DC
Bus Material Tin-Plated Copper C11000
Mounting Holes Accepts 1/4" (6mm) Screws
Terminal Screws 4 x #8-32
Terminal Stud 1 x #10-32
Wire Size (1) 8 AWG to 4 AWG - Input
(4) 16 AWG to 10 AWG - Load
SKU BSS.2356
Model # 2356
UPC/EAN 632085023560
Brand Blue Sea Systems
Shipping Weight 0.2500kg
Unit Of Measure ea
3 years
