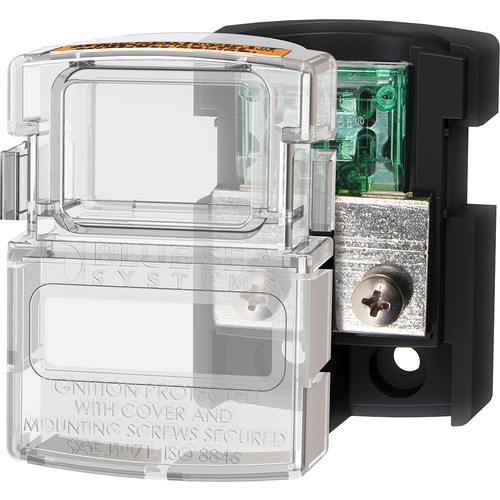

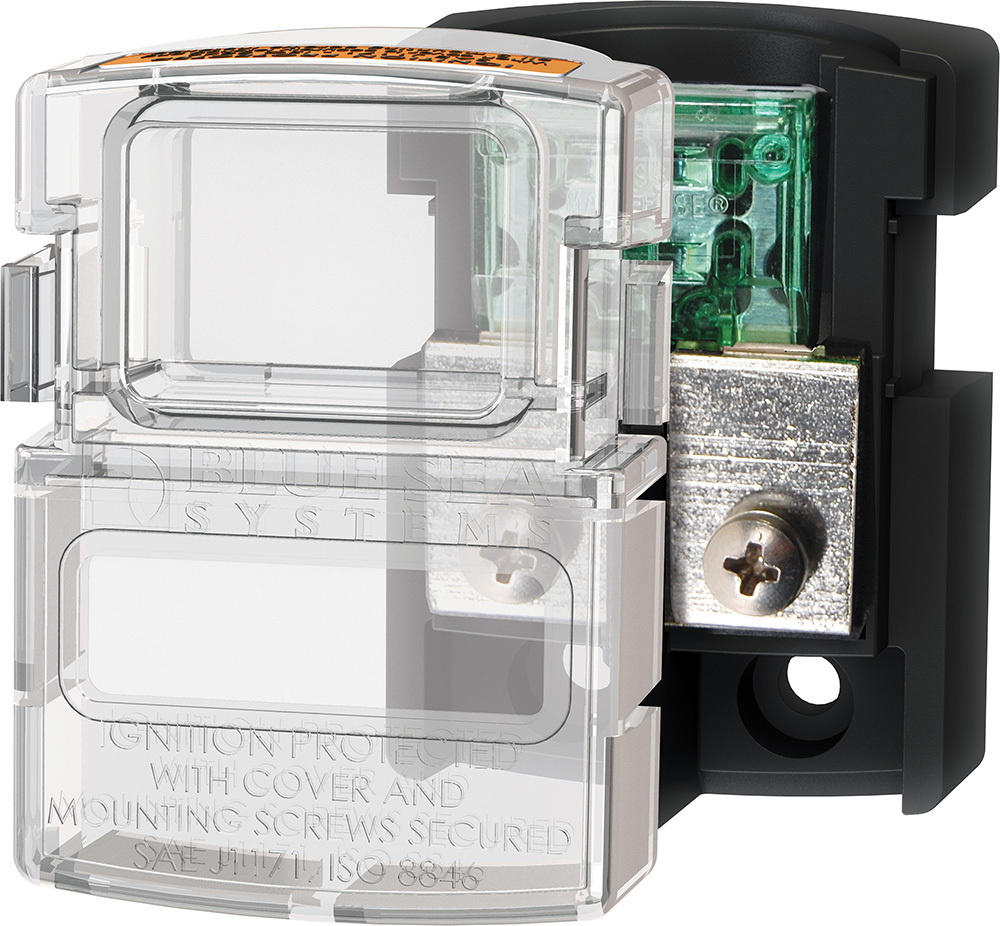

MAXI Fuse Block Holder Features:

  • Snap-on terminal cover insulates all conductive parts, satisfying ABYC/USCG requirements
  • Cover breakouts allow wires from sides or bottom
  • Terminal screws compress fuse blades within blocks for low resistance connections
  • Ignition Protected
  • Label recess accepts large format label (sold separately)
  • MAXI Fuses sold separately



Specifications

  • Maximum Amperage: 80A
  • Maximum Voltage: 32V DC
  • Mounting: #10 Screws
  • Screw Terminal Torque: 2.82 Nm (25 in-lb)
  • Wire Size: 14 - 4 AWG
  • Weight: 0.11 kg (0.25lb)
  • Dimensions: 52.4mm x 71.1mm x 36.8mm



SKU BSS.5006100B
Model # 5006100B
UPC/EAN 632085500610
Brand Blue Sea Systems
Shipping Weight 0.1500kg
Unit Of Measure ea
