Victron BlueSolar Controlles require the V.E.Direct Bluetooth Smart dongle. For in-built Bluetooth please view the SmartSolar range.

MPPT controllers operate solar panels at their Maximum Power Point improving efficiency up to 30% by adjusting input voltage to harvest the maximum power from the solar panels. It then manages this power to supply the varying voltage requirement of the battery plus load.

The Victron MPPT BlueSolar senses when to adjust the output that it is being sent to the battery and will shut down for a few microseconds, calculate and make relevant adjustments. The principle of MPPT is to extract the maximum possible power from a solar panel by setting the most efficient combination of voltage and current - maximum power point.

The BlueSolar supports Advanced Maximum Power Point Detection. Unlike the conventional MPPTs which tend to lock to a local MPP when shady conditions occur, [which may not be the optimum MPP], Advance Maximum Power Point Detection will harvest maximum energy by locking to the optimum MPP. In addition the unit is configured for optimal Three Step Charging.



With the V.E.Direct Bluetooth Smart dongle, programming, real-time data and history display is available on your smart device.

Inbuilt additional electronic protection provides

  • PV short circuit and PV reverse polarity protection.
  • PV reverse current protection.



Three Stage Charging

  • Stage One - Bulk or Boost - As much current as possible is delivered in order to rapidly recharge the batteries to about 80%.
  • Stage Two - Absorption - When the battery reaches its final charging voltage, known as its absorption voltage the charge allows the current to taper off as the battery nears a full charge.
  • Stage Three - Float - At this stage float voltage is applied which is enough to retain a full charge but controlled to prevent overcharging.

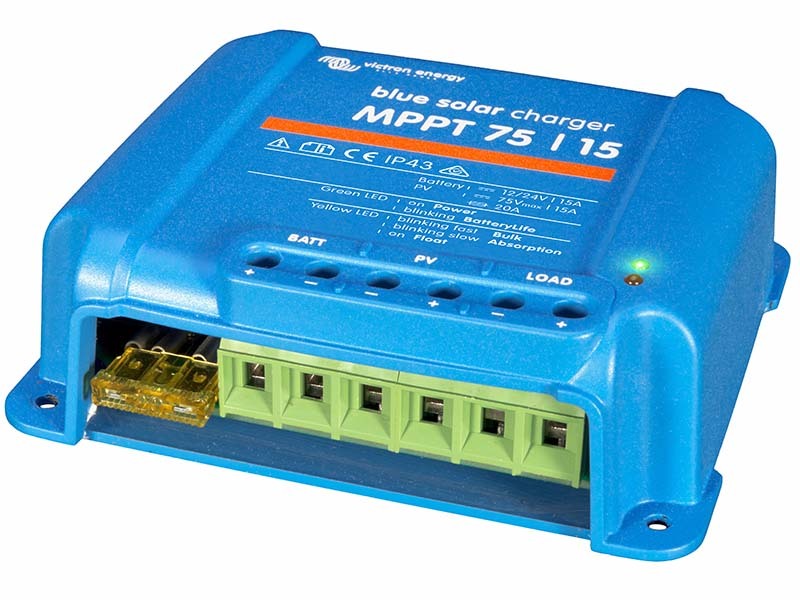

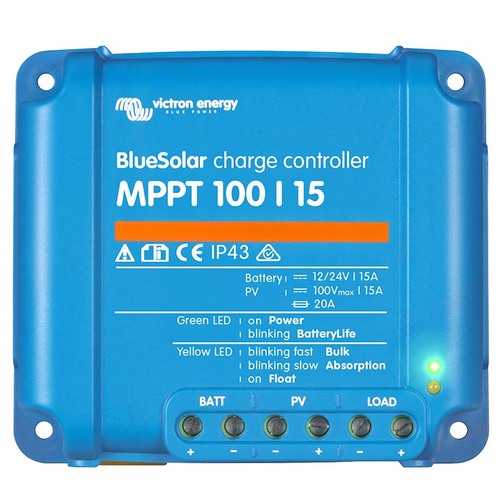

MPPT 75/10, 75/15 & MPPT 100/15 Specifications

MPPT 75/10, 75/15 & MPPT 100/15 specifications

SKU VIC.SCC010015200R
Model # SCC010015200R
UPC/EAN 8719076025337
Brand Victron Energy
Shipping Weight 0.7700kg
Shipping Width 0.210m
Shipping Height 0.050m
Shipping Length 0.150m
Shipping Cubic 0.001575000m3

Purchase with confidence knowing your product is covered by the Victron 5-year manufacturer warranty.
