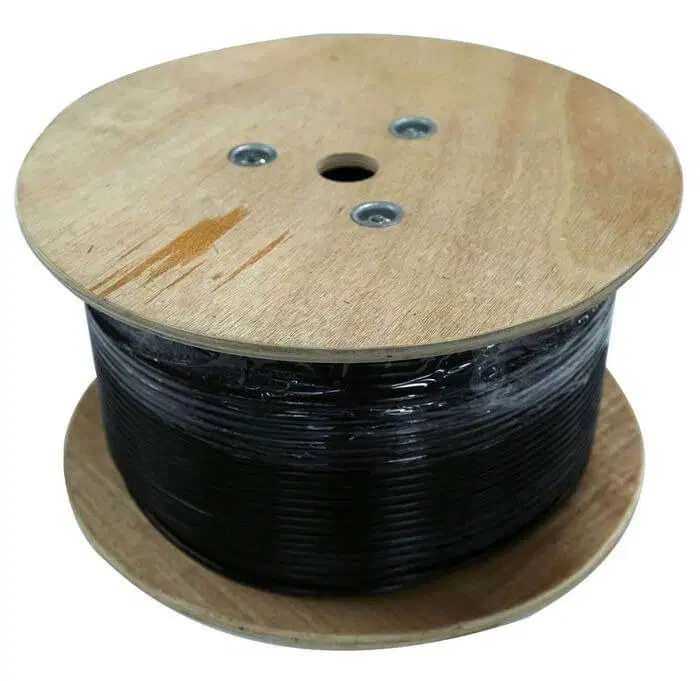

305M Cat6A S/FTP Shielded External Cable Roll

  • 100% Bare Copper Cable
  • 23AWGx4P
  • PE Jacket
  • AS/CA S008:2010 Approved
  • 4K UHD Ready


SPECIFICATIONS

Cable Type: S/FTP

Jacket Material: PE

Conductor Material: Bare Copper Cable

Insulation Material: Skin Foam Skin PE

Cable Length: 305m

Cable Weight: 14.8kg/305m

Cable Diameter: 0.56

Cable Gauge: 23AWG

Jacket Thickness: 0.55±0.05mm

DC Resistance Unbalanced (Max.): in pair ≤2.0%, pair to pair≤4.0%

DC Resistance (Max.): ≤9.38Ω/100m

Dielectric Strength (Max.): DC 1000V 1min No Breakdown

Mutual Capacitance at Frequency: ≤5.8nF/100m

NVP: 74%

Operating Frequency: 500MHz

Flame Test Method: No

Installation Temperature: -20 ~ +60 degrees celcius

Operating Temperature: -40 ~ +75 degrees celcius

Packaging: Wooden Drum

SKU PWT.CPE-CL-00036
Model # PC-C6AODF-20
Shipping Weight 14.8000kg
Shipping Width 0.380m
Shipping Height 0.250m
Shipping Length 0.380m
Shipping Cubic 0.036100000m3
