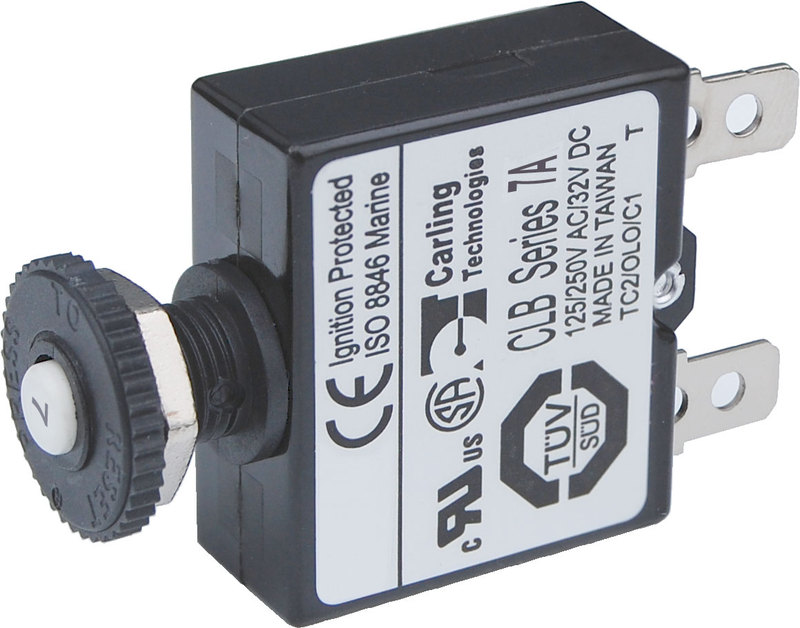

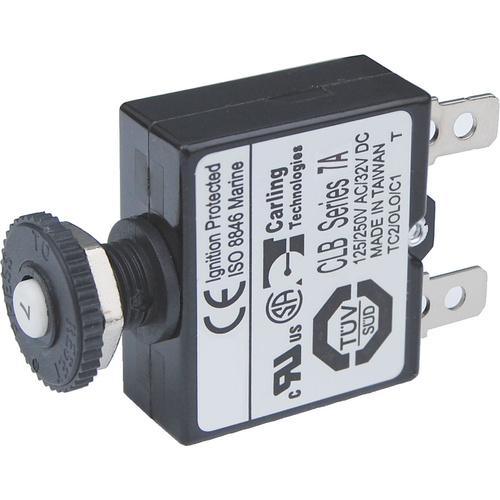

Push Button Reset Only Quick Connect Circuit Breaker Features:

  • Branch circuit breakers (can also be used for 24-hour circuit protection)
  • Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels
  • Compact design enables high-density circuit protection configurations
  • Push-to-reset operation
  • “Trip Free” design cannot be held “ON” during fault current condition
  • Ignition protected - Safe for installation aboard gasoline powered boats
  • Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discolouration and cracking



Specifications
Amperage 7A
Maximum Voltage 32V DC
Mounting Panel Mount 3/8-27 UNS
Circuit Breaker Type Thermal trip, manual push-button reset only
Terminal Type 1/4 Male Quick Connect
Interrupt Capacity 3000A @ 14.7V
2500A @ 28V
Minimum Operating Temperature -10° C
Maximum Operating Temperature 60° C
Screw Terminal Torque 6 in-lb (0.68 Nm)
Weight 0.06Lb (0.03 Kg)
Weight 0.06lb (0.03 kg)



Trip Delay Curve



SKU BSS.7053
Model # 7053B
UPC/EAN 632085070533
Brand Blue Sea Systems
Shipping Weight 0.0300kg
