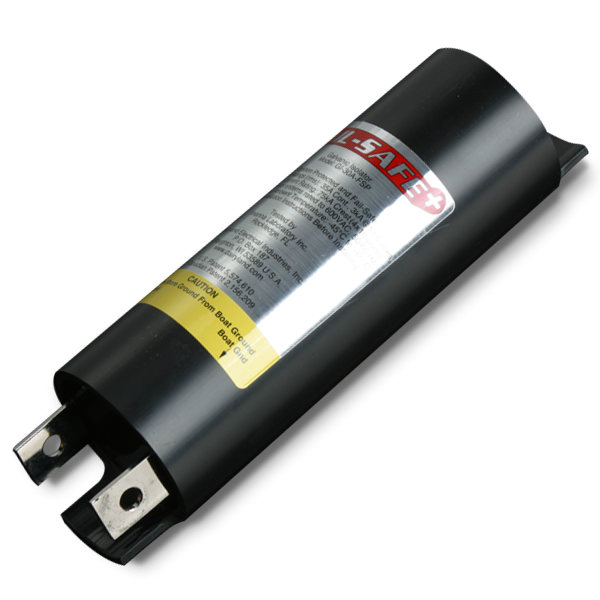

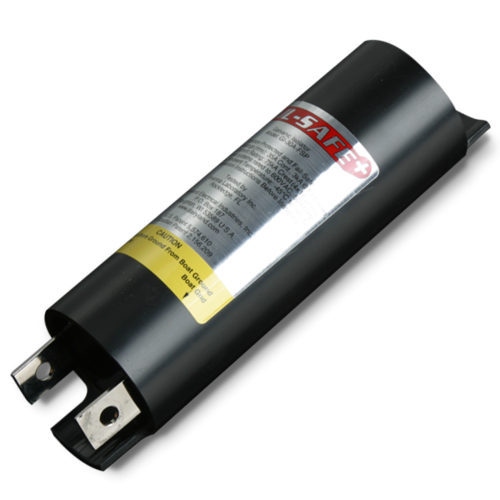

All Dairyland (Formerly knopwn as DEI) Galvanic Isolators (GI) are fail-safe, solid-state DC isolation/AC coupling devices with ratings and characteristics that significantly exceed those of all known galvanic isolators designed for marine applications. The proven fail-safe construction assures that the galvanic isolator never compromises the integrity of the grounding conductor, even in the unlikely case of the product failing.

Features and Characteristics

  • Rated to 50/60A (suitable for 50A and dual 30A shore power services)
  • Fail-safe construction featuring Fail-Safe Plus™ and Fail-Safe Max™ technology
  • Certified to ABYC A-28 July 2008 publication
  • Australian approved to AS/NZS3004.2:2008
  • CE Marine - ISO 8846
  • No monitoring system required
  • Highest AC fault current ratings available
  • Ignition protected
  • Maintenance-free solid-state design
  • Rated for high levels of lightning current
  • Very low DC leakage current allowed

Note: When fitted, a galvanic isolator should be connected into the shore supply protective earthing conductor before it connects to the boat’s earth system. It should be installed in an accessible location as close as practical to the shore power inlet.

Vessel AC Earthing

SKU DEI.GI-5060A-FSP
Model # GI-5060-FSP
Brand DEI
Shipping Weight 2.0000kg
Shipping Width 0.130m
Shipping Height 0.340m
Shipping Length 0.110m
Shipping Cubic 0.004862000m3
