Ultra-light

Glass-free module weighs 7.2 kg, 70% lighter than conventional glass modules.

Fast Installation

Through "Quick-Bonding" installation, eArc requires no penetration, reduces time on a roof by 40% and eliminates the use of mounting hardware.

Aesthetic

Seamless integration with underlying installation surface.

Durable

eArc is the first glassless module to pass the same durability tests as conventional glass modules, including IEC 61215:2016, IEC61730:2016 and UL1703 (USA). eArc has also passed PID, salt mist and ammonia corrosion tests.



Electrical Characteristics

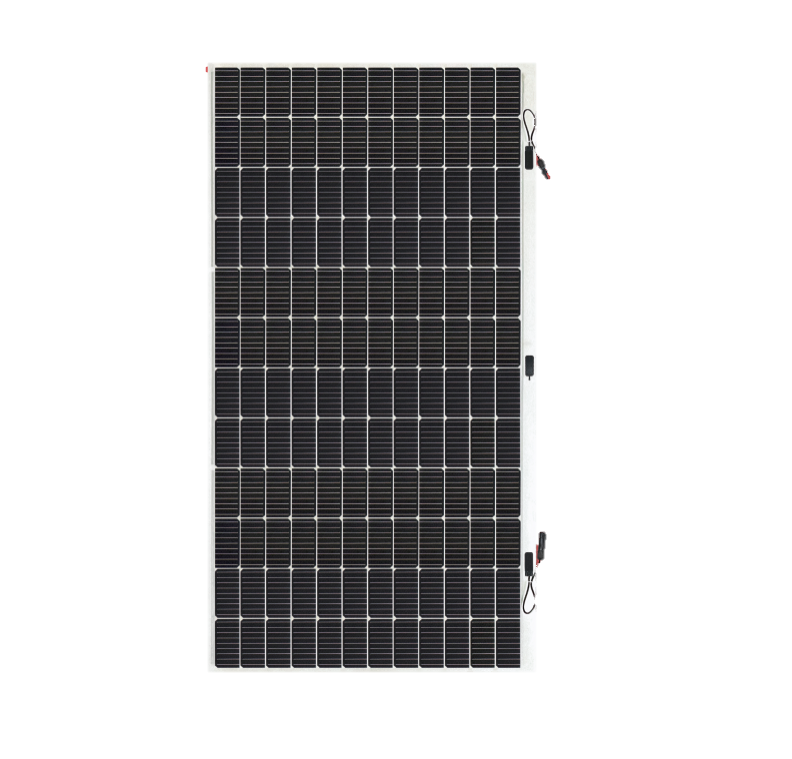

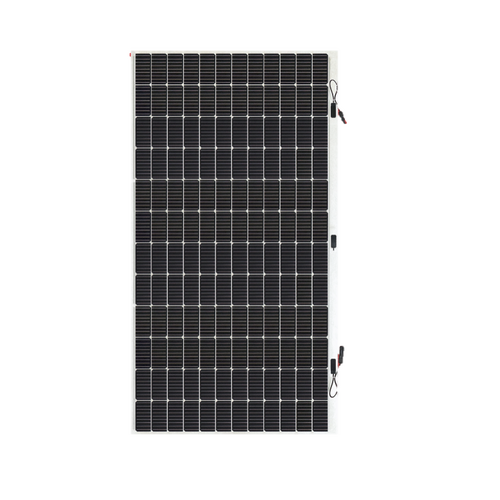

STC SMF430F-12X12UW
Maximum Power (Pmax) 430
Maximum Power Voltage (Vmp) 42.0
Maximum Power Current (Imp) 10.24
Open-circuit Voltage (Voc) 49.8
Short-circuit Current (Isc) 10.74
Module Efficiency (%) 19.4
Operating Temperature (℃) -40 ℃ to 85 ℃
Maximum System Voltage 1000 V DC (IEC)
Maximum Series Fuse Rating 20 A
Application Class Class A
Power Tolerance 0/+5 W
STC: Irradiance 1000W/m2 , Cell temperature 25℃, AM=1.5.



Mechanical Characteristics

Solar Cell Monocrystalline silicon (166mm half cell)
No. of Cells 144 (12 x 12)
Module Dimensions 2054 x 1080 x 2 mm
Weight 7.2 kgs
Backsheet White
J-box IP 68 rated
Frame Frameless
Output Cables Photovoltaic technology cable 4.0 mm2 , (+)150 / (-)450 mm
Connector MC4 compatible
SKU SNM.SMF430F-12X12UW
Model # SMF430F-12X12UW
Brand Sunman
Shipping Weight 7.2000kg
Shipping Width 2.100m
Shipping Height 0.100m
Shipping Length 1.100m
Shipping Cubic 0.231000000m3
Unit Of Measure ea

430 watt panels

By: on 5 February 2024
Happy with the panels. Happy with the installation. Outback were vary helpful. Lifted 6 mm on thin strips for air flow under them. Only disappointment is crap wiring cover strips. Fixed by cable ties at each end. Shouldn’t have to do this type of jury rig with a premium priced pfoduct.
(4)
