Features

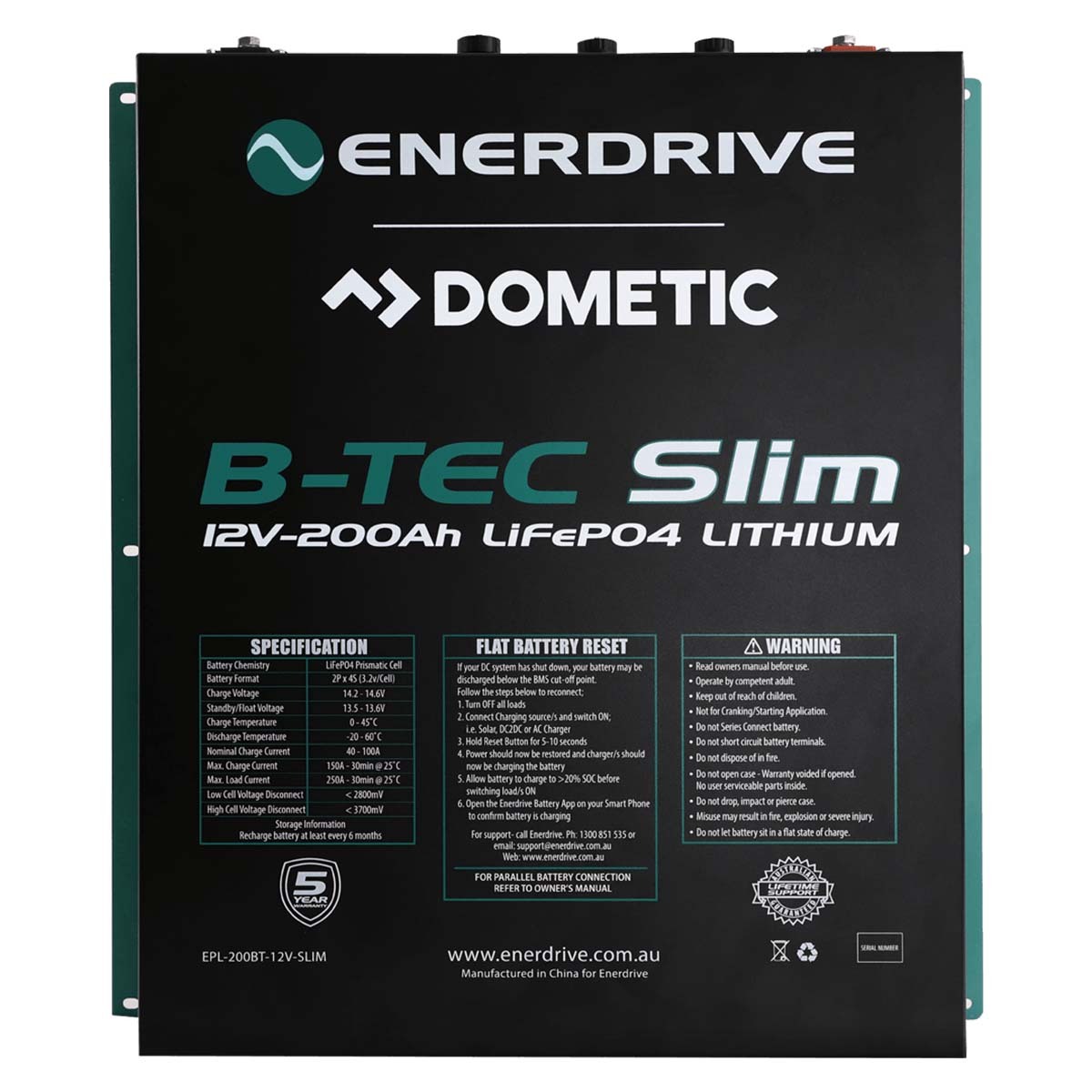

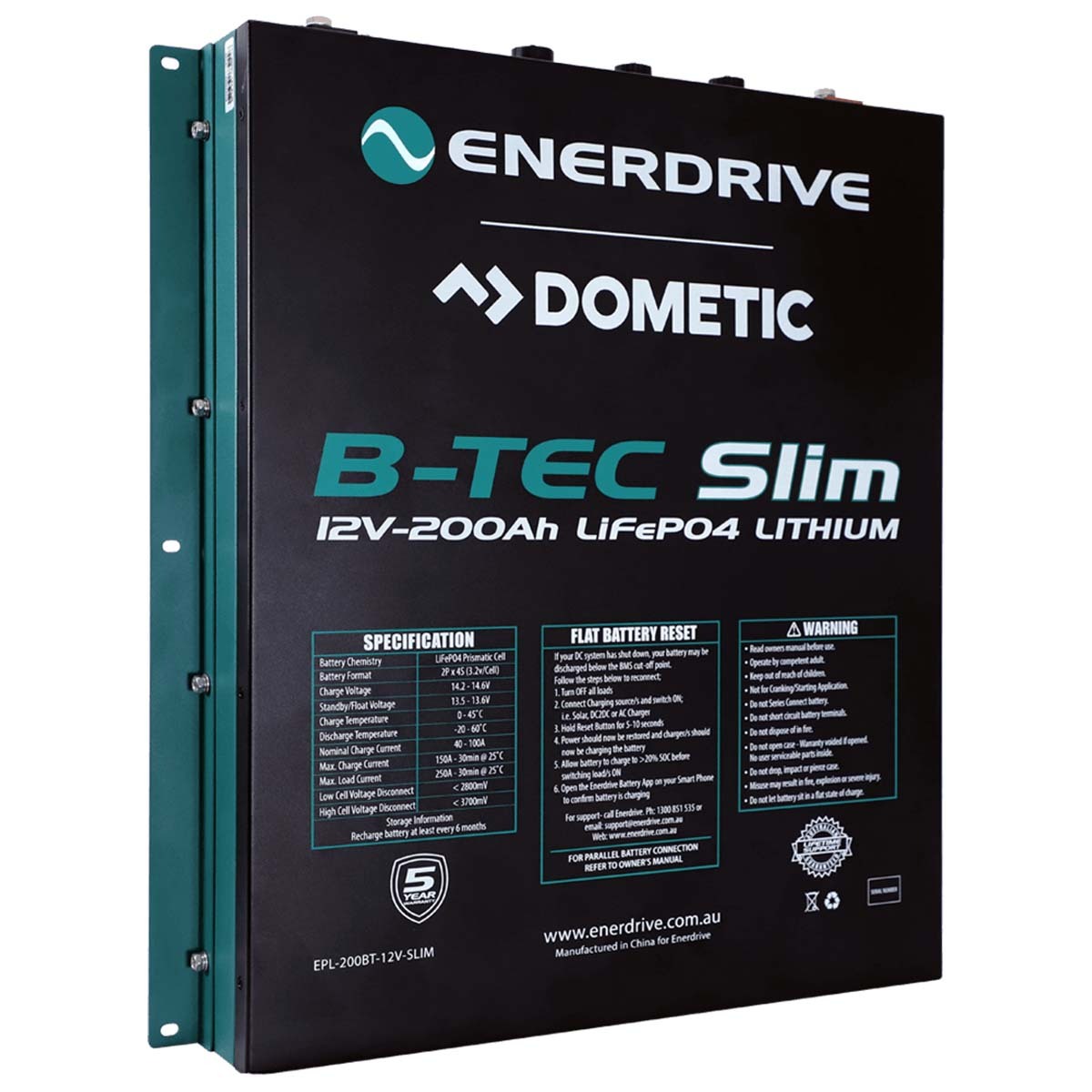

Enerdrive B-TEC LiFeP04 12v 200Ah Slimline Lithium Battery

The new 200Ah ePOWER B-TEC Slimline lithium battery is designed and intended for use in deep cycle applications where a single battery is required that meets the amp hour capacity.

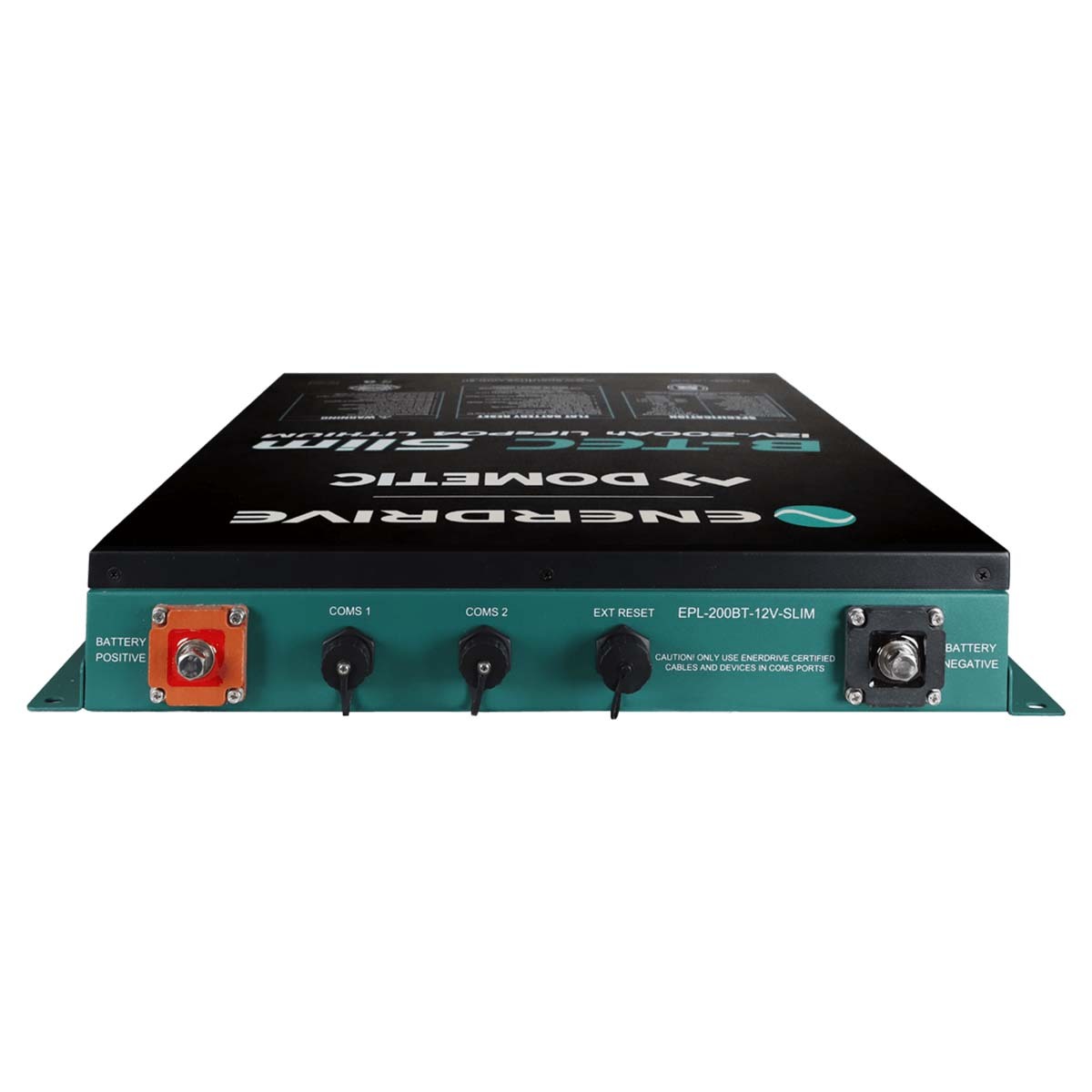

• Extremely compact size W 530 x H 600 x D 83 mm. All connection points for the battery are at one end including all Comms Ports and Reset Port.
• The reset button is not included on the battery itself, we have opted for a button that can be remotely mounted elsewhere in the install. This allows for a much easier restart process for customers and also keeps the battery more water-tight with less chance of water ingress.
• Comms Ports are both RJ45 remote ports with CAN output. Both are reserved for future integration and functionality.
• Water-resistant metal casing meeting IP52 rating and all external bolts and fittings are blind limiting the chance for water to travel from external to internal. Rubber-style seals between all metal framing. Frames overlap as well to help avoid water ingress.

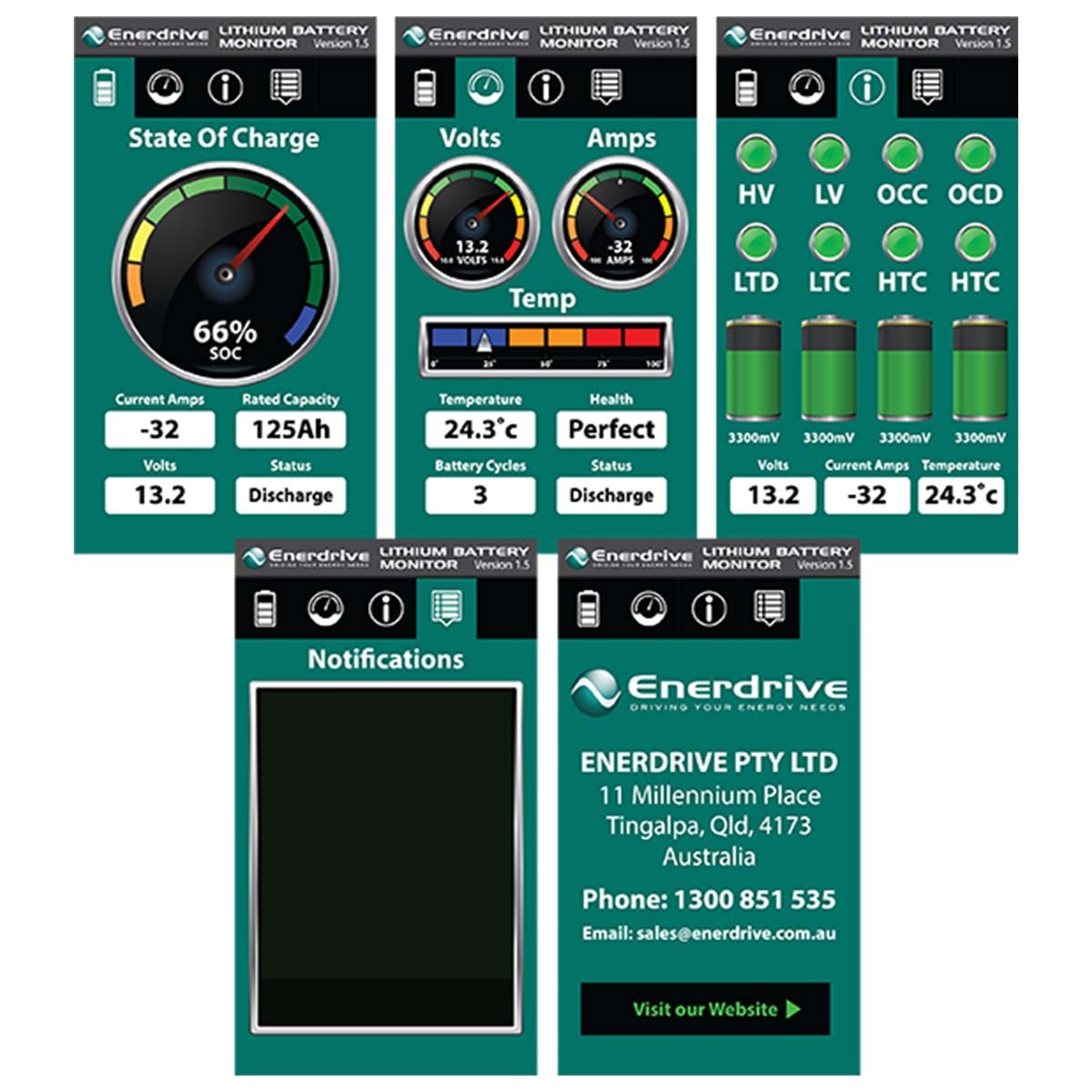

Smart Phone Monitoring System

The Enerdrive Enerdrive B-TEC  Slimline battery incorporates wireless Battery Monitoring Technology. By downloading the Android™ or Apple® app to your smartphone or tablet device, you can monitor the following information;

• Battery Capacity
• Battery Voltage
• Battery Current (Amps)
• Battery State of Charge (SOC)
• Battery State of Health (SOH)
• Battery Status
• Individual Cell Voltage
• Battery Temperature
• Battery Cycles
• Battery Alarms
• Battery Event Information

Battery Management System

The battery is also equipped with an internal Battery Management System that can monitor and optimise each Prismatic cell within the battery during normal operation. It will protect the battery pack from overcharge, over-discharge, over-temperature & short circuit. The BMS helps to ensure a safe and accurate operation of the battery. Please note that a fully discharged battery (BMS is off) requires charging within 14 days to avoid cell damage.

Size & Weight Savings

Lithium v AGM Capacities;

• 100Ah Lithium = 160Ah AGM
• 125Ah Lithium = 200Ah AGM
• 200Ah Lithium = 320Ah AGM
• 300Ah Lithium = 480Ah AGM

(Based on the standard depth of discharge for both Lithium (80%) and AGM (50%).

The Enerdrive B-TEC battery provides 60% more usable power than its equivalent lead acid cousin and being nearly 50% lighter and 30% smaller makes for a superior alternative.

The Enerdrive B-TEC Slimline battery is perfect for camper trailers, 4WD’s (AUX battery), caravans, small watercraft, low-power communication sites, or any other application that requires the use of a single deep cycle battery that meets the amp hour capacity.

With over 7 years of researching, designing, and testing lithium batteries and the associated charging systems, Enerdrive is at the forefront of lithium battery systems in Australia. Enerdrive is the only Australian company that can supply a fully integrated self-branded energy system to suit your setup.

With over 4000 complete systems in operation Australia-wide, Enerdrive is regarded as the leader in the field of lithium batteries and energy systems for Mobile, Marine, and Remote applications.

Please Note; The B-TEC Slimline battery is capable to be paralleled to a second B-TEC 12V 200Ah Slimline Lithium Battery. For maximum performance and lifespan of your B-TEC Slimline battery, no more than 4 batteries should be connected to increase your overall capacity. Overall loads when paralleled should not exceed the current limits of a single battery’s BMS.

The 200Ah Slimline battery can accept a maximum inverter capacity of 3000W only. Exceeding the maximum inverter capacity can damage the BMS Management within the battery.

If you require a battery system larger than the Enerdrive B-TEC battery, please look at the Enerdrive Pro Series Power Pack Systems which can offer multiple parallel and series connections with Active Cell Balancing Protection across the entire pack.

Please note that B-TEC batteries must not be installed –
• In vehicle engine bays or in high-heat environments, refer to Section 10 – Battery Specifications of the manual.
• In wet areas such as caravan chassis mounts, open ute trays, or boat deck areas.
• Inside compartments dedicated to carrying gas.

This product is not suitable to mount anywhere with the possibility of being exposed to the elements. It is an electronic product designed for internal use ONLY.

2023 Standards Update: With some confusion regarding the upcoming standards changes and how they will affect battery fitments for future builds including upgrades to existing builds, ENERDRIVE | DOMETIC has created a fitment guide. This guide is specific to our e-LITE and B-TEC range of batteries and has been designed to cover all portions of the battery installation requirements within the new standard. Please note this guide is specific to Enerdrive batteries and does not apply to any other manufacturer.
