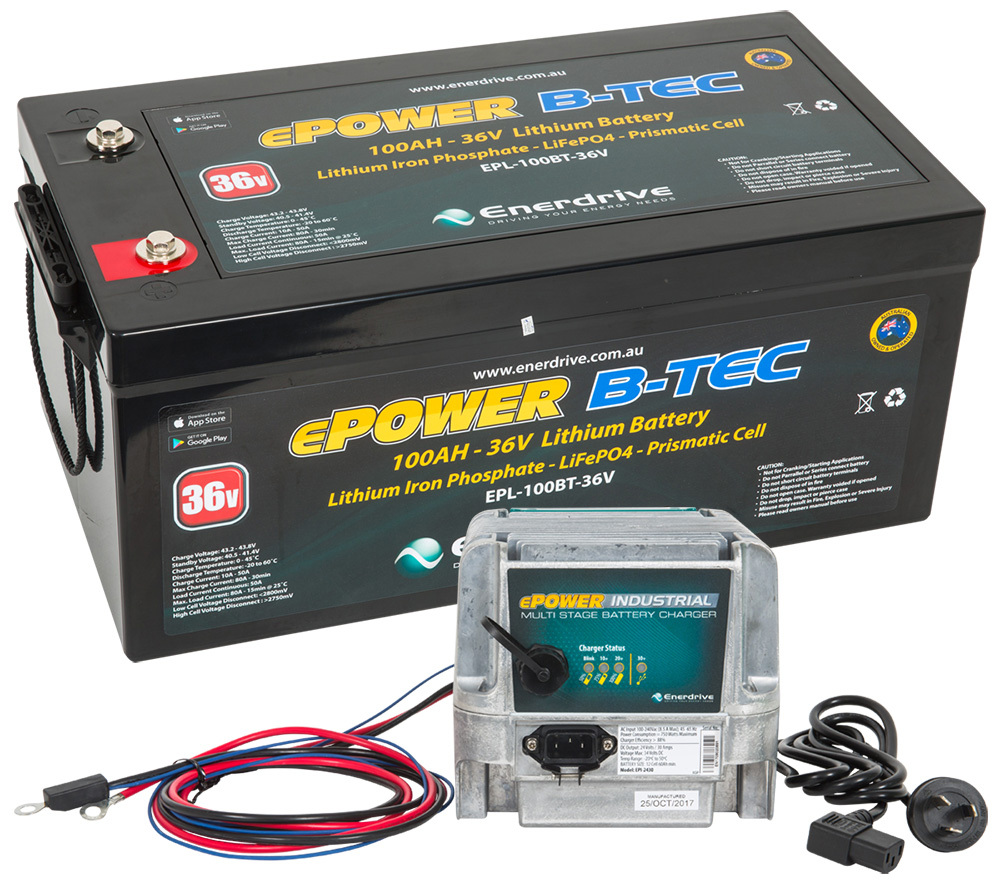

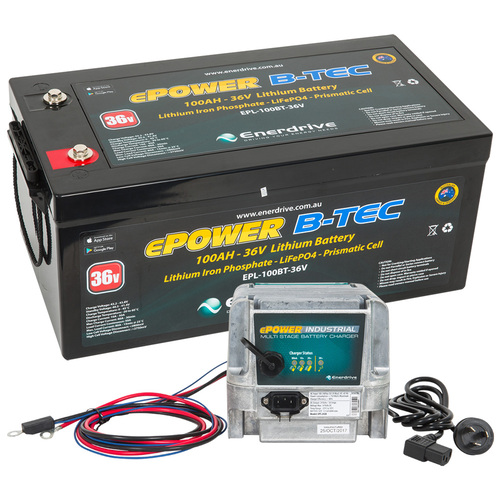

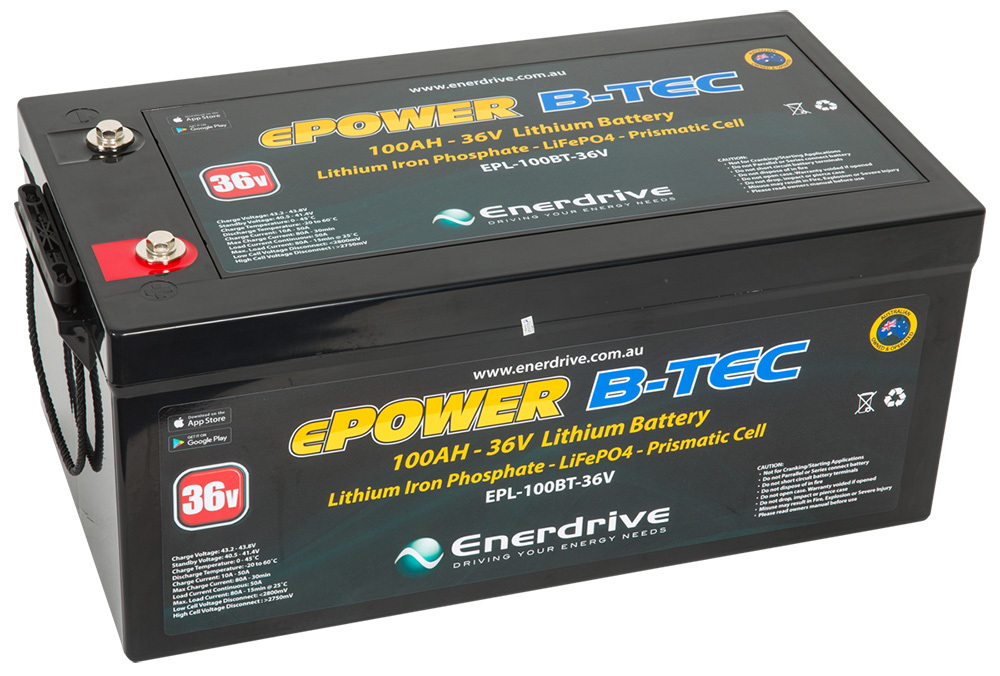

ePOWER B-TEC LiFeP04 36v 100Ah Lithium Battery with 36V ePOWER Industrial Battery Charger

The ePOWER B-TEC lithium battery is designed and intended for use in deep cycle applications where a single battery is required that meets the amp hour capacity.
Smart Phone Monitoring System

The Enerdrive ePOWER B-TEC battery incorporates wireless Battery Monitoring Technology. By downloading the Android™ or Apple® app to your smartphone or tablet device, you can monitor the following information:

  • Battery Capacity
  • Battery Voltage
  • Battery Current (Amps)
  • Battery State of Charge (SOC)
  • Battery State of Health (SOH)
  • Battery Status
  • Individual Cell Voltage
  • Battery Temperature
  • Battery Cycles
  • Battery Alarms
  • Battery Event Information


Battery Management System

The battery is also equipped with an internal Battery Management System that can monitor and optimise each Prismatic cell within the battery during normal operation. It will protect the battery pack from over charge, over discharge, over temperature & short circuit. The BMS helps to ensure safe and accurate operation of the battery.


Size & Weight Savings

Lithium v AGM Capacities

    100Ah Lithium = 160Ah AGM
    125Ah Lithium = 200Ah AGM
    200Ah Lithium = 320Ah AGM

(Based on standard depth of discharge for both Lithium (80%) and AGM (50%).

The ePOWER B-TEC battery provides 60% more usable power than its equivalent lead acid cousin and being nearly 50% lighter and 30% smaller makes for a superior alternative.

The ePOWER B-TEC battery is perfect for camper trailers, 4WD’s (AUX battery), caravans, small water craft, low power communication sites or any other application that requires the use of a single deep cycle battery that meets the amp hour capacity.

Please Note; The ePOWER B-TEC battery is capable to be paralleled to a second ePOWER B-TEC battery of the same size. For maximum performance and lifespan of your ePOWER B-TEC battery, no more than 2 batteries should be connected together to increase your overall capacity. Overall loads when paralleled should not exceed the current limits of a single batteries BMS.

The 100Ah battery is able to accept a maximum inverter capacity of 1000W only. Exceeding the maximum inverter capacity can damage the BMS Management within the battery.

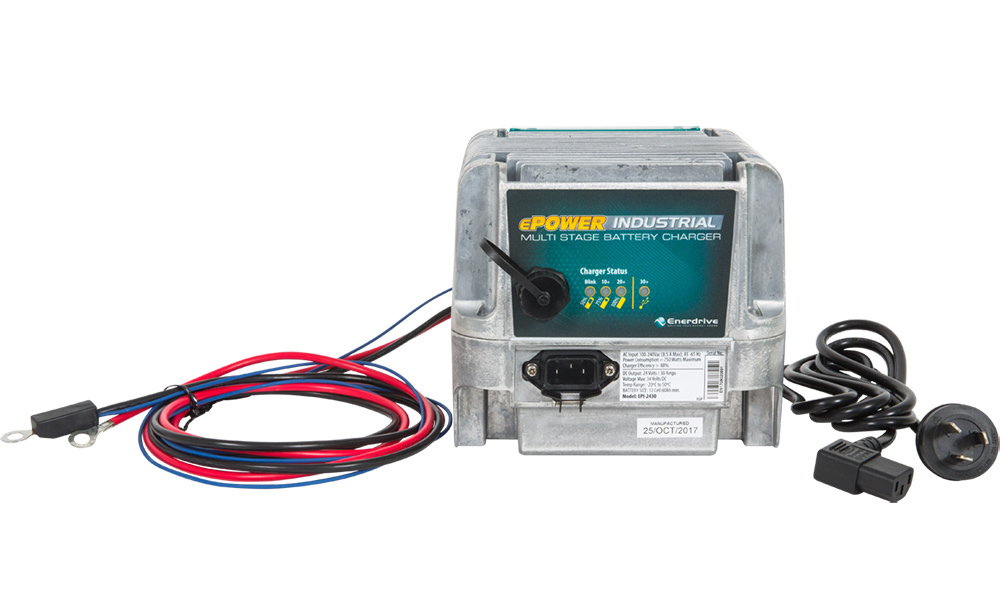

36V/20A ePOWER Industrial Battery Charger Included

Extremely Durable.

A fully sealed die cast aluminum enclosure protects the charger from fluids and other contaminants. The design of the charger enclosure mirrors the internal components, protecting against shock and vibration. (IP67 if using AC input seal).

ePOWER Industrial Battery Charger User Manual Rev: 1.4

Enerdrive B-TEC 36v Lithium Battery Technical Data

Normal Specification EPL-100BT-36V
Nominal Voltage 38.4V
Nominal Capacity 100Ah
Cycle Life (DOD – 80% under controlled conditions) ≥ 2000 Cycles
Standard Charge Specification (Lithium profile charger required)
Battery Charge Temperature 0 ̴ 45°C
Normal Charge Voltage CV/CC* 43.20 ̴ 43.80V
Standby (Float) Voltage 40.5 ̴ 41.40V
Maximum Charge Current 50A @ 25°C for 30mins
Recommended Charge Current for Maximum Life ≤33A
Standard Discharge Specification
Battery Discharge Temperature -20 ̴ 60°C
Battery Output Voltage Range 33.00 ̴ 43.80V
Maximum Discharge Current 100A @ 25°C ± 5°C for 30mins
Pulse Discharge Current 450A for 1.0s
Discharge Cut-off Voltage ≤33.60V
Circuit Protection The battery is supplied with a LiFePO4 Battery Management System BMS that can monitor and optimize each single prismatic cell during charge & discharge, to protect the battery pack from overcharge, over discharge & short circuit. Overall, the BMS helps to ensure safe and accurate operation of the battery.
Over-Charge Protection
Over-charge Protection Per Cell 3.90V ± 0.03V
Over-charge Release Per Cell 3.60V ± 0.05V
Over-charge Release Method Discharge below release voltage
Over-Discharge Protection
Over-discharge Protection Per Cell 2.80V ± 0.05V
Over-discharge Release Per Cell 3.20V ± 0.05V
Over-discharge Release Method Apply Charge/Voltage ≥38.4V
Over Current Protection
Discharge Over Current 110A for 30s – 450A for 1s
Protection Reset Time 5s Auto Release
Over Current Release Method Disconnect Load
Over Temperature Protection
Battery Discharge Over Temperature Protection to 65°C ± 5°C
Release at 50°C ± 5°C
Battery Charge Over Temperature Protection to 55°C ± 5°C
Release at 45°C ± 5°C
Short Circuit Protection Auto release after 5s
Mechanical Characteristics
Dimensions Length 519mm
Width 273mm
Height 222mm
Weight Approx 37.7 Kg
Storage Information
Temperature & Humidity Range ≤ 30 days -20°C ̴ 35°C, 45 ̴ 75% RH
≥ 30 days -10°C ̴ 30°C, 45 ̴ 75% RH
Self-discharge Rate ≤ 3% Per Month

Note: Specifications subject to change without notice.

SKU ENE.EPL-100BT-36V
Model # K-100-04
UPC/EAN 9342616019672
Brand Enerdrive
Shipping Weight 38.0000kg
Unit Of Measure ea
