Enerdrive have created many different layouts and dimensional sizes to fit nearly every possible application. Designed for the DIY handyman with basic electrical knowledge through to the professional looking to save installation time. From small kits with AC & DC charging and battery monitoring up to kits with 2000w inverters and individual charge/load monitoring.

These kits are all pre-wired by Enerdrive where possible to keep the kits simple to install. All boards have a full wiring diagram showing each circuit and where to connect your loads, battery and inverter cabling. All items are mounted on a 12mm Black plastic (water & rot resistant) board for simple mounting into the application.

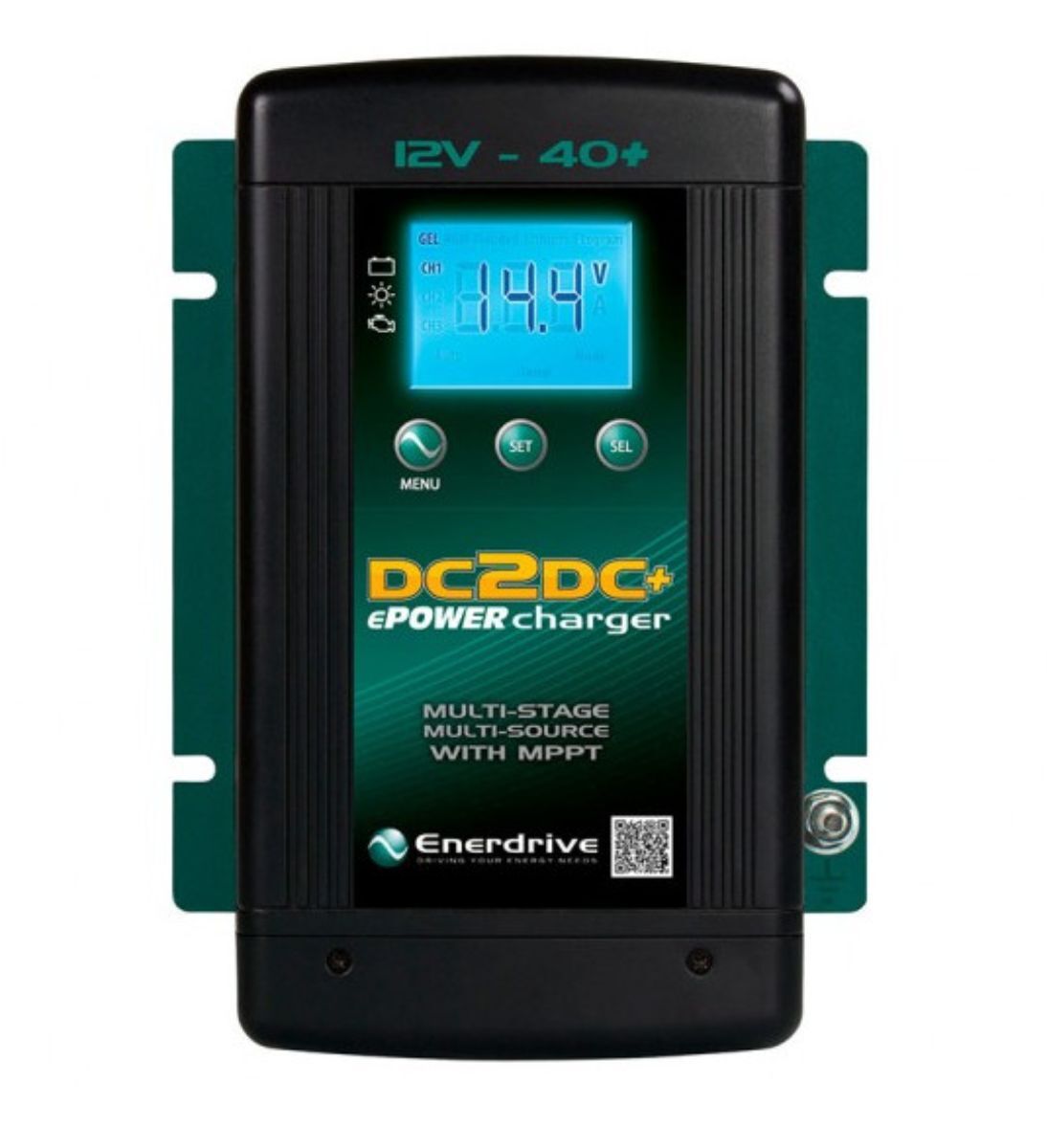

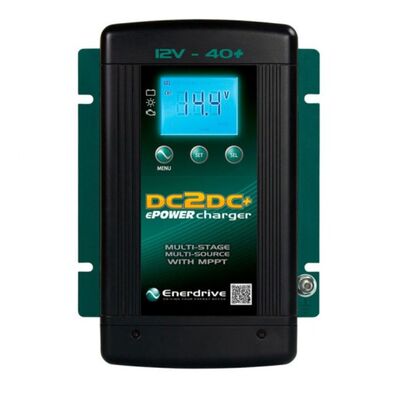

Enerdrive ePOWER 12V 40A DC to DC Battery Charger is designed to meet the rugged demands of Australian conditions and delivering multiple source charging for DC systems.

The Enerdrive ePOWER DC2DC Battery Charger is a fully automatic multistage, multi input battery charger with the ability to charge from either an alternator linked to a battery; or via solar power with the in built Maximum Power Point Tracking (MPPT) Solar Controller.

The Enerdrive ePOWER 40A Battery Charger is a fully automatic, “set and forget” charger. It is designed to quickly and accurately recharge your batteries using algorithms that help maximise service life. Multistage smart charging technology enables the charger to be connected to your battery banks permanently.

As dictated by battery manufacturer’s recommendations, batteries require a multistage charge sequence for perfect, fast and accurate charging.

The Enerdrive ePOWER charger can be programmed for Lithium batteries. This setting delivers the full rated output of the charger constantly with the charger switching to power supply mode once the voltage peak is met (indicating a full battery bank).

12V 40A DC2DC Battery Charger Features

  • Two totally independent DC Inputs for both engine and solar regulation charging one house battery bank output
  • DC M6 screw terminals that will allow for large battery cable connection between all sources
  • A dedicated Maximum Power Point (MPPT) solar regulator
  • The same battery algorithms as included in our AC mains ePOWER battery charger including a specific lithium charging profile
  • 40A output up to 40+°C with thermo controlled fan cooling
  • Fully programmable LCD display to show which source is charging the battery along with charger status, voltage and amperage
  • Temperature sensor included in charger for more accurate battery charging

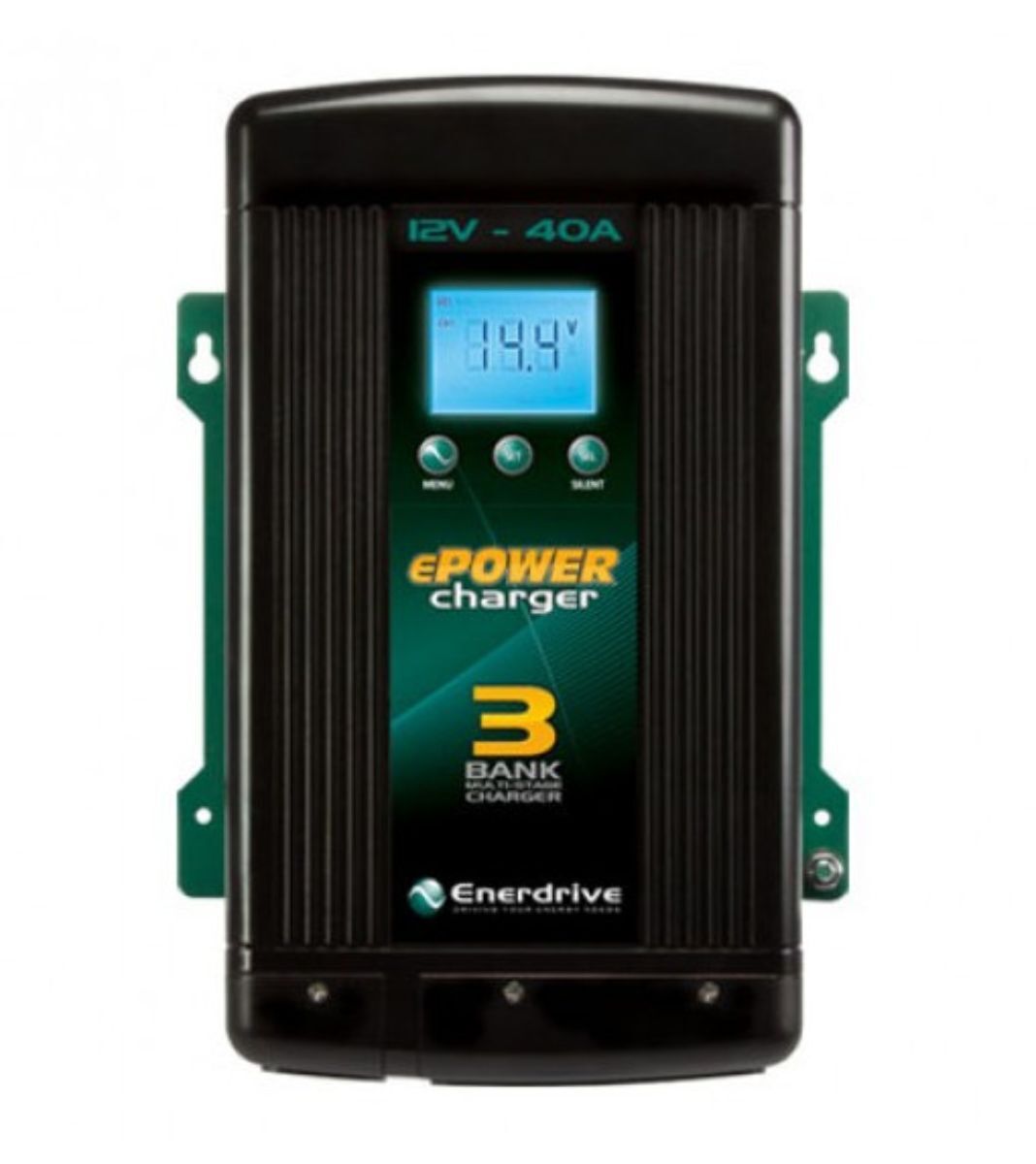

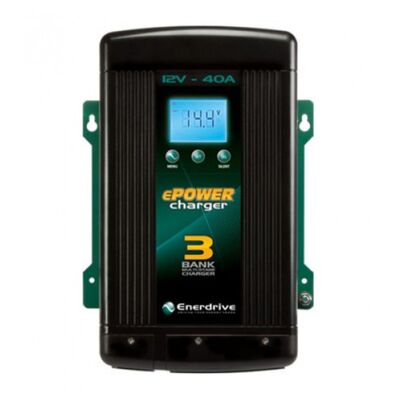

40A Battery Charger Features:

  • Multistage Charging: Fully automatic multistage battery charger with the ability to charge 3 separate battery banks.
  • Separate Battery Banks: Isolated charging design where battery bank one is separate from battery bank two and three.
  • Programmable: Battery bank 1 can be programmed with a different charge algorithm over banks 2 and 3.
  • Current Control: User adjustable current output (e.g. Dial the 60amp unit back to run off a 1kVA generator).
  • Smart Charging: The ePOWER 40A battery charger will regulate its output based on the loads connected to your battery banks.
  • Wide AC Input Range: Operates on both 110V / 60Hz and 240V / 50Hz.
  • LED Display: Easy to use “set and select” menu along with scrolling charger status.
  • Silent Mode: Disables the cooling fan for total silent operation at night or whenever required. Activation reduces charge output by half and locks out fan for 12 hours.
  • Temperature Sensor: Battery temperature sensor included with 3 meter cable.

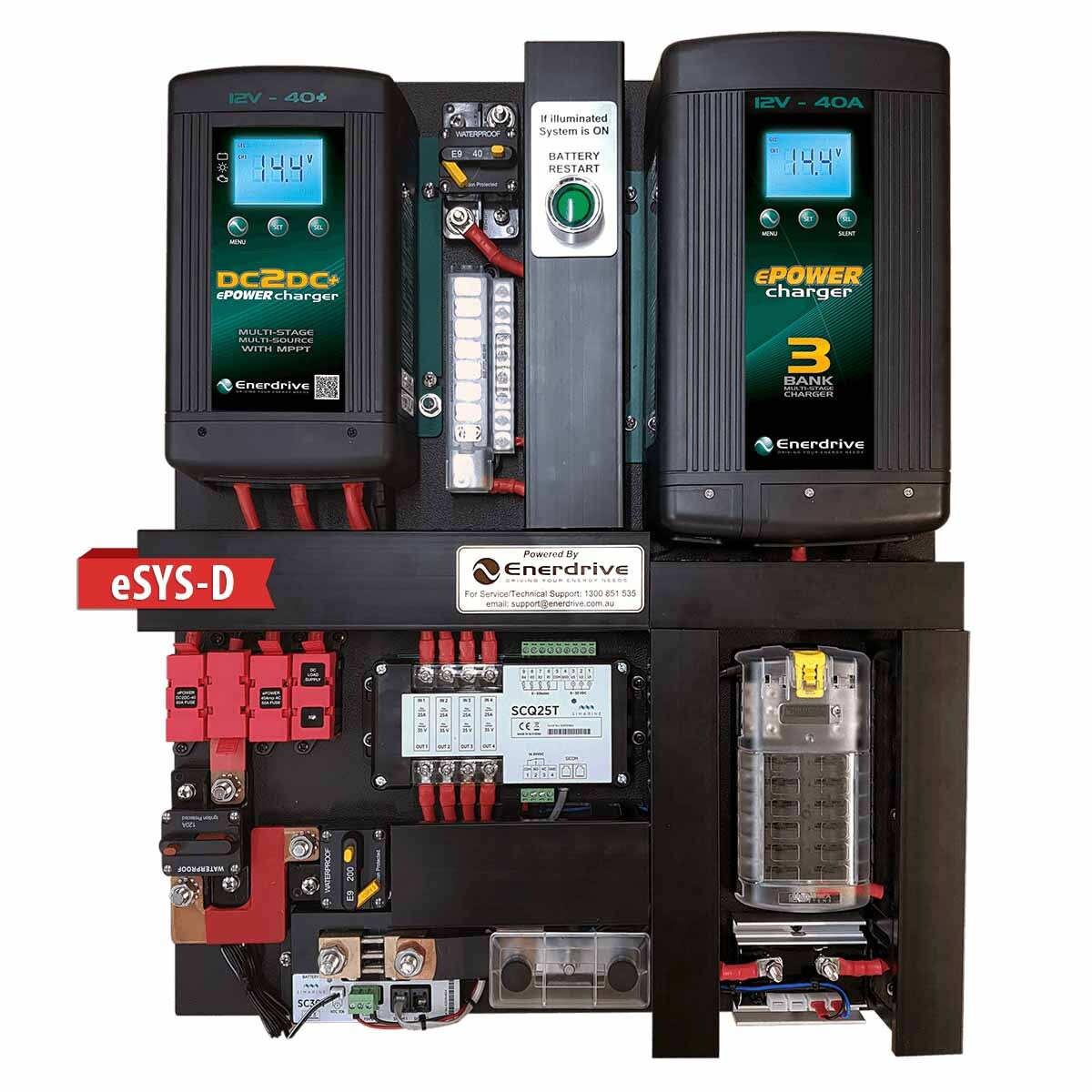

eSYS-D Board Includes:

  • Enerdrive ePOWER 12V 40A DC to DC Battery Charger   EN3DC40+
  • Enerdrive ePOWER 12V 40A Battery Charger   EN31240

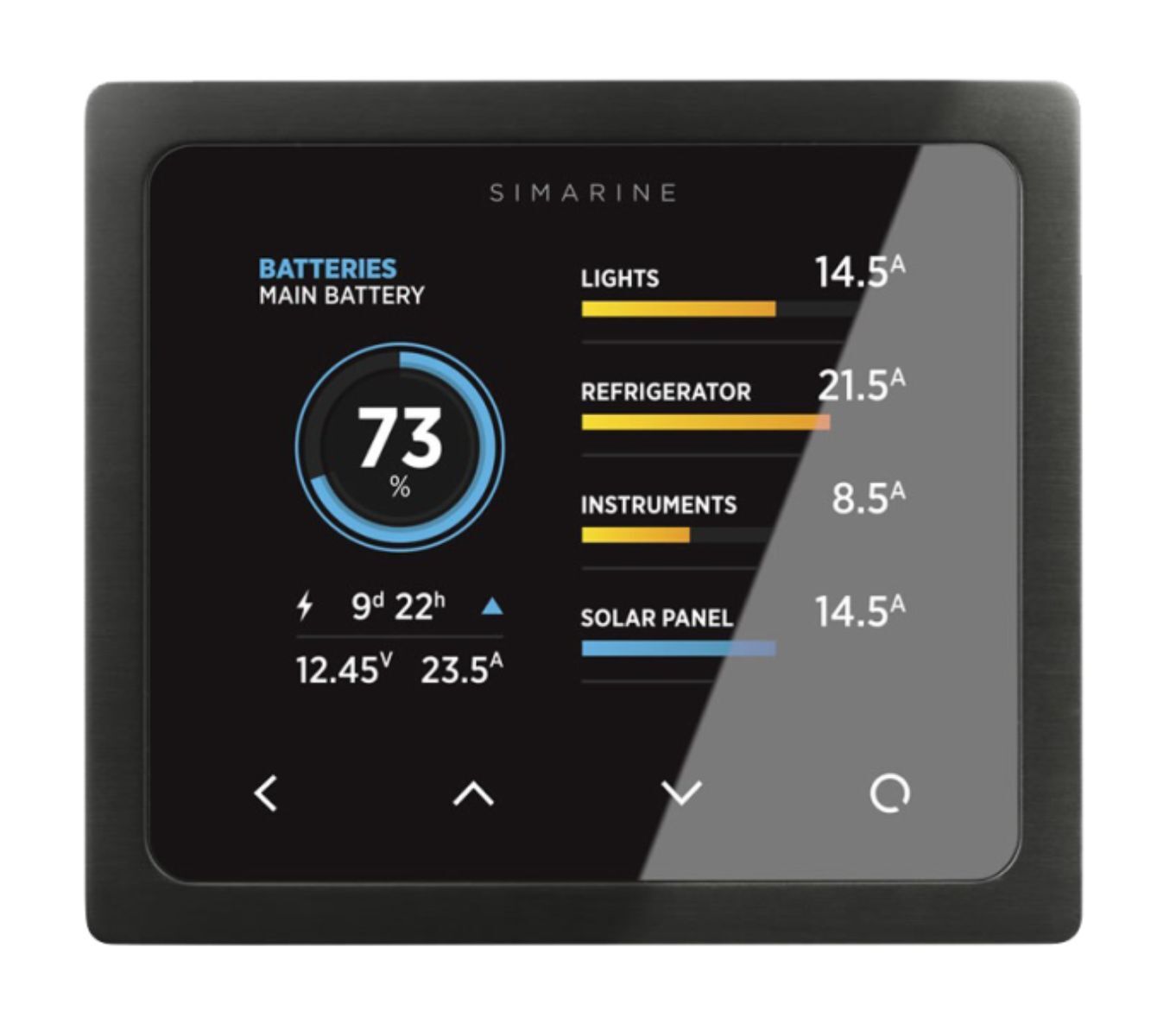

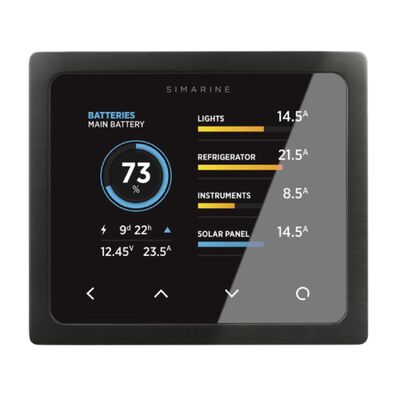

  • Simarine Pico LCD WIFI Monitoring Screen
  • Simarine SC301 300A Main Battery Shunt
  • Simarine SCQ25T Individual Load/Charge Module
  • 3 Stud Main Negative Bus Bar
  • 40A Low Battery Cutout
  • Main System Circuit Breaker 120A
  • Inverter Circuit Breaker 200A
  • Solar Input Positive Circuit Breaker 40A
  • ePOWER DC2DC 60A Output Fuse Connection
  • ePOWER AC Charger 50A Output Fuse Connection
  • 24hr Critical Load 4 Circuit "Wedge" Fuse Block
  • Main 12 Circuit "Wedge" Fuse Block with Negative Bus and Cover
  • Battery Restart Switch (Lithium Batteries)
  • 12mm Black Plastic Mounting Board. Water & Rot Resistance
SKU ENE.eSYS-D
Model # eSYS-D
UPC/EAN 9342616049952
Brand Enerdrive
Shipping Weight 2.1700kg
Shipping Width 0.242m
Shipping Height 0.074m
Shipping Length 0.172m
Shipping Cubic 0.003080000m3
Unit Of Measure ea
