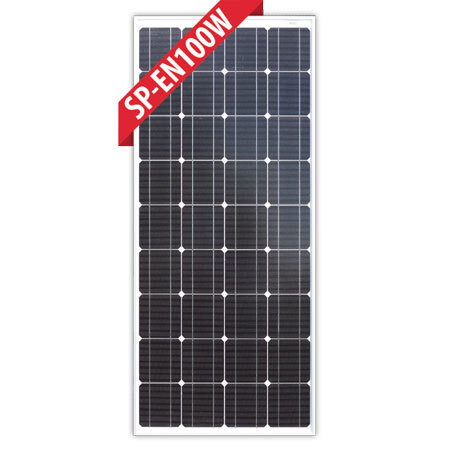

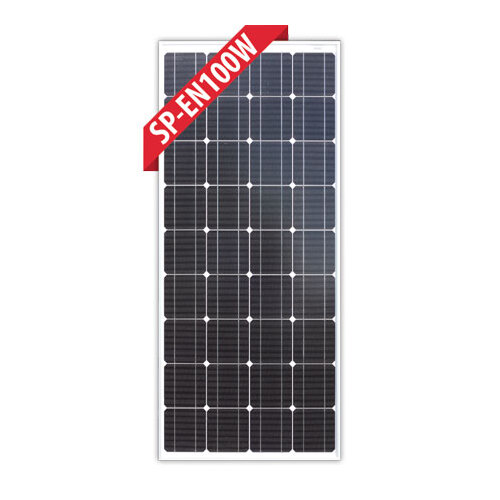

Enerdrive solar panels are well suited to 12v installations (or 24v systems by series connections of panels) and fitted with MC4 compatible solar cable connectors.



Dimensions: 1195mm x 541mm x 35mm

Enerdrive Part Number SP-EN100W
Max Power Pm(W) 100
Power Tolerance % – 1% ∼ + 3%
Max Power Voltage Vm(V) 18.7
Max Power Current Im(A) 5.35
Open Circuit Voltage Voc(V) 22.60
Short Circuit Current Isc(A) 5.69
Max System Voltage (VDC) 1000
Dimensions (mm) 1195 x 541 x 35
Weight (kg) 8.1
Test Conditions 1000W/m² , AM1.5 , 25°C
Note: Specifications subject to change without notice.
SKU ENE.SP-EN100W
Model # SP-EN100W
UPC/EAN 9342616026106
Brand Enerdrive
Shipping Weight 9.0000kg
Shipping Width 1.200m
Shipping Height 0.040m
Shipping Length 0.550m
Shipping Cubic 0.026400000m3
Unit Of Measure ea

Purchase with confidence knowing your product is covered by the Enerdrive 5 Year Manufacturer Warranty.

Enerdrive 5 Year Warranty
