SafetyHub 150 Fuse Block Features

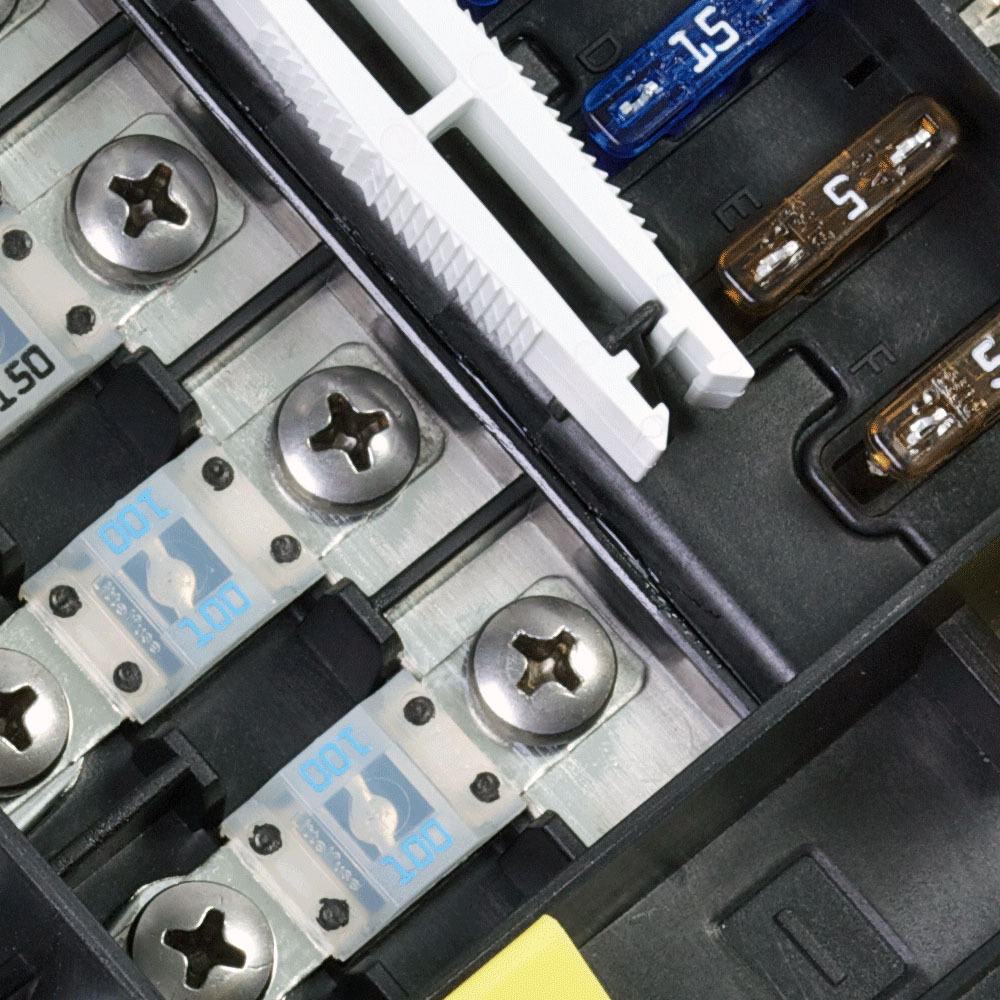

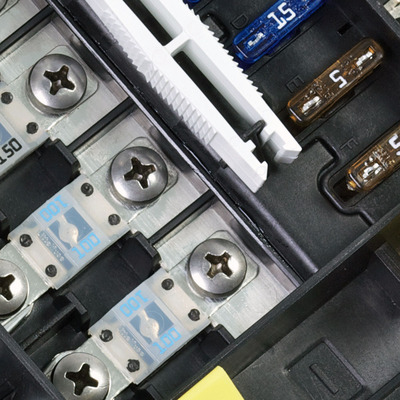

  • Accepts four AMI® or MIDI® Fuses for high-amp circuits up to 200A
  • Accepts six ATO® or ATC® Fuses for circuits up to 30A including bilge pumps, electronics and lights

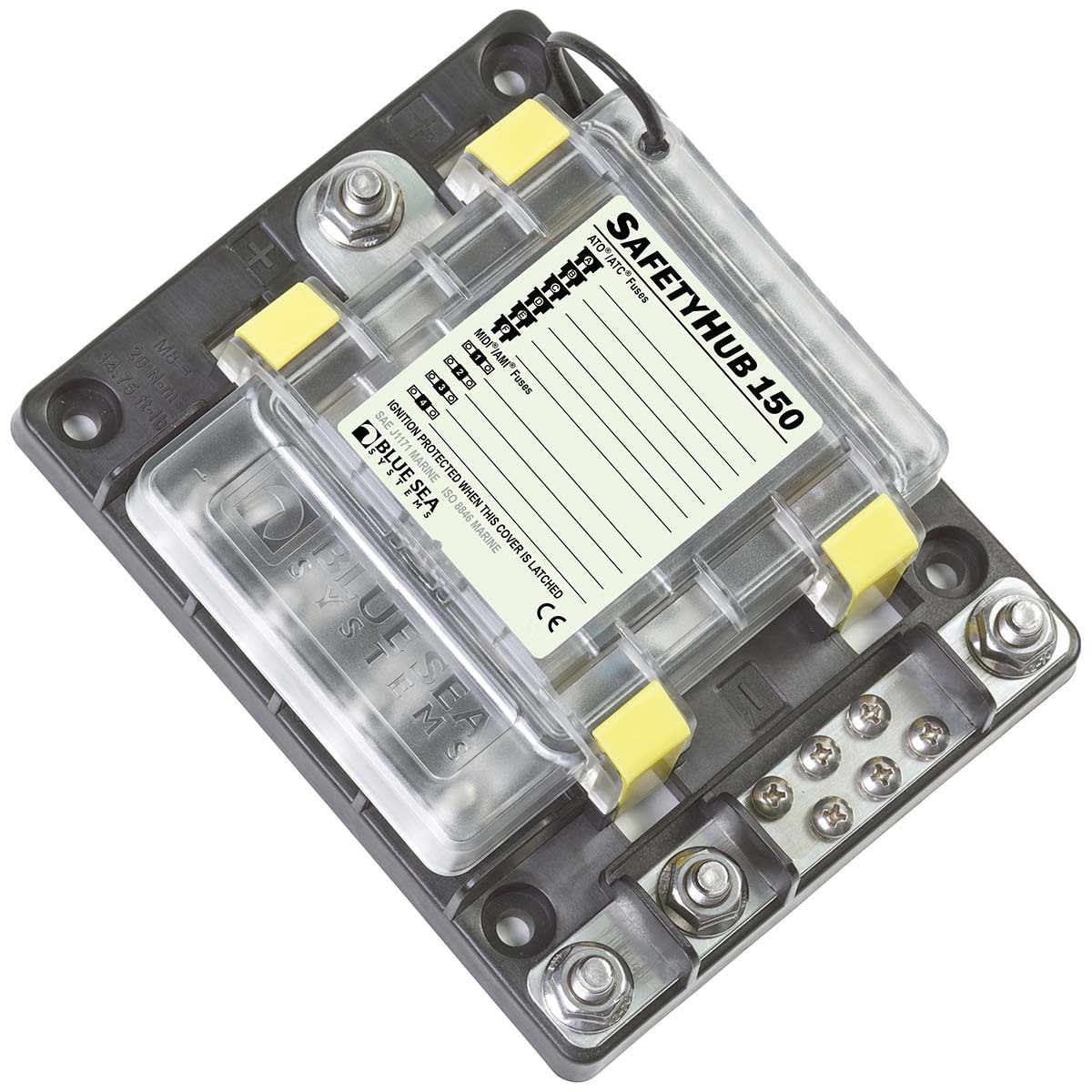

  • Sealed cover protects fuses from the harsh marine environment and satisfies ABYC/USCG insulation requirements

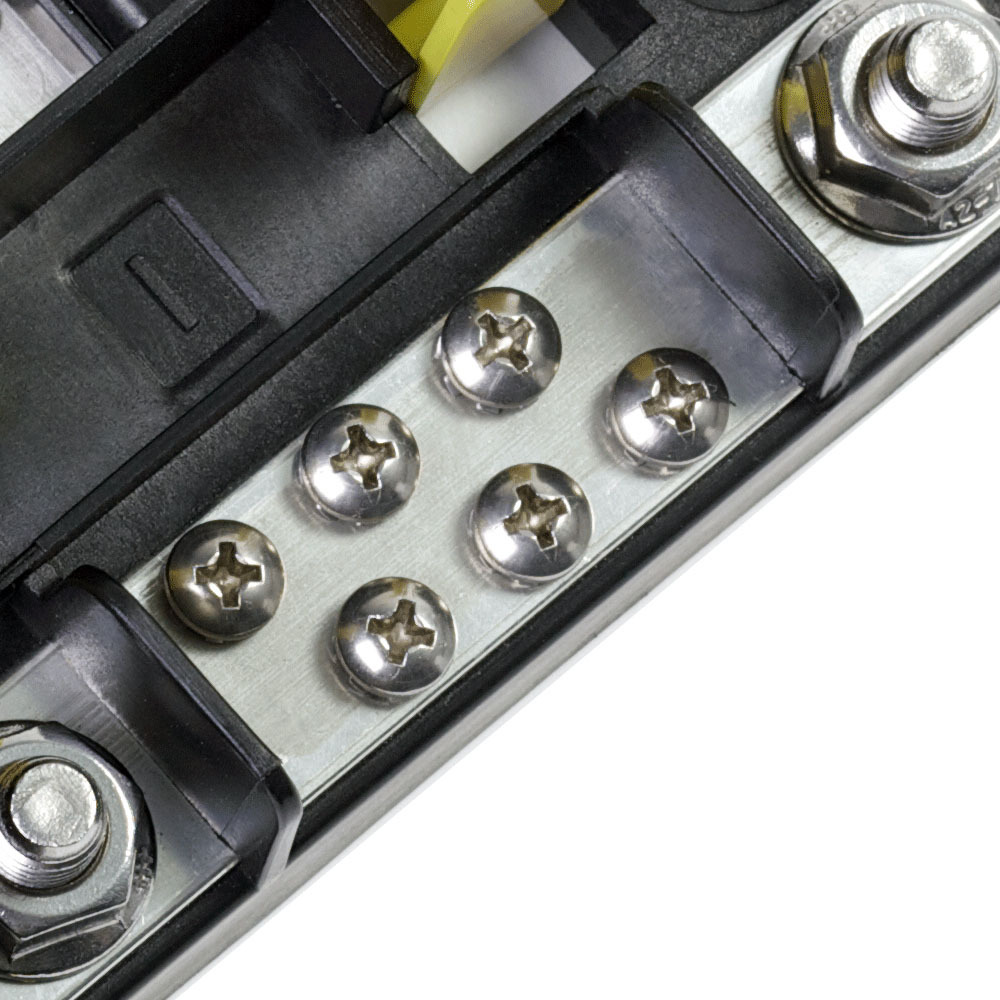

  • Negative bus provides a common location for the negative connection
  • Circuit identification label with the write-on capability

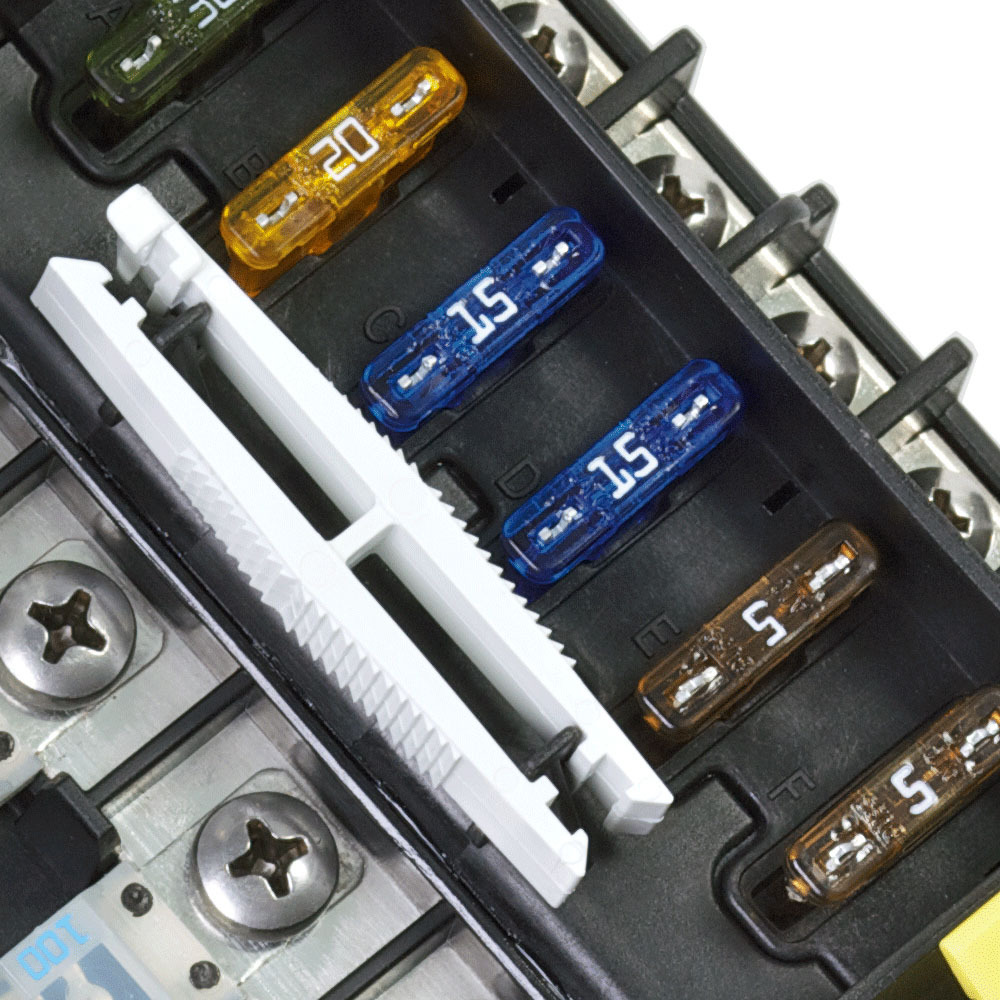

  • Fuse puller easily removes ATO® or ATC® Fuses

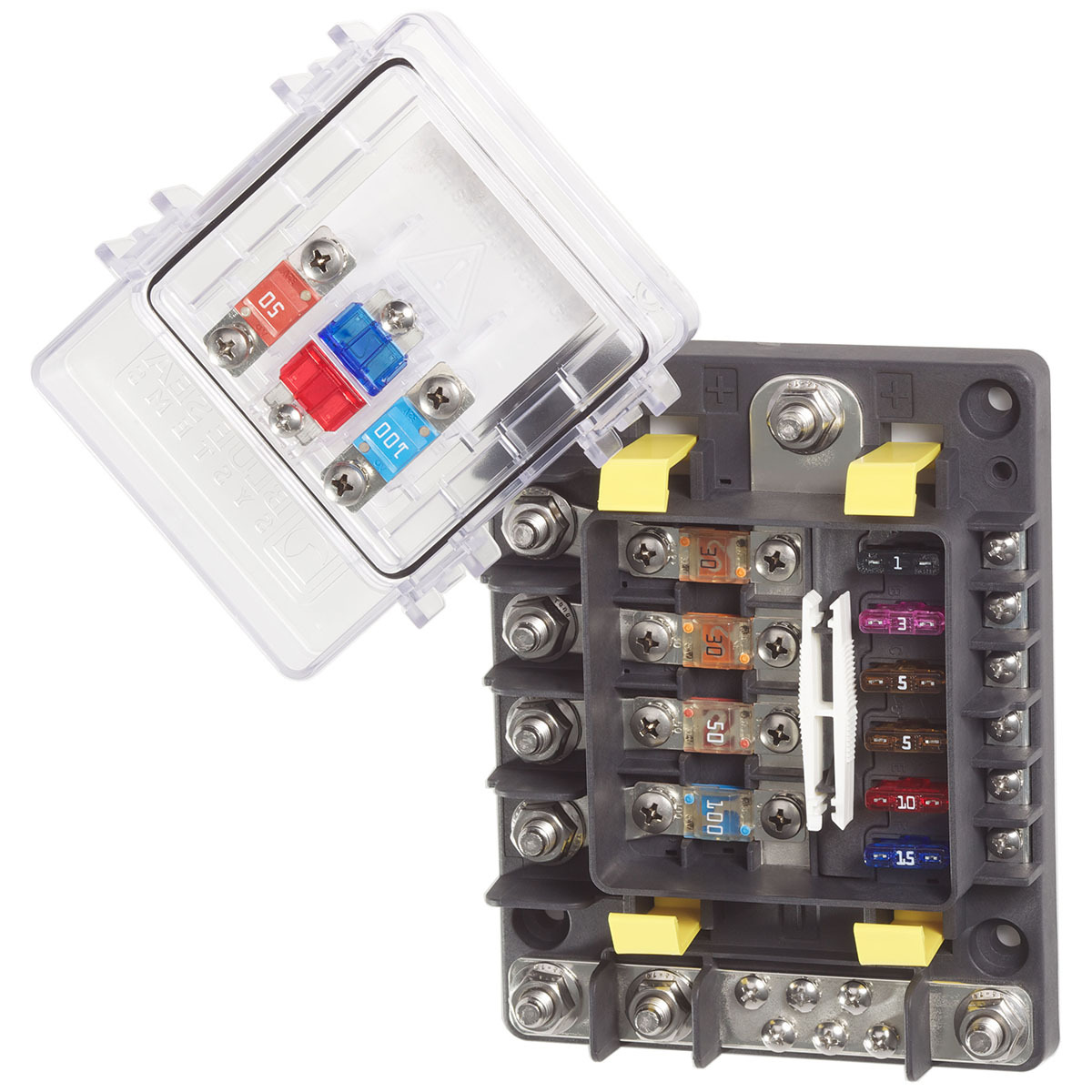

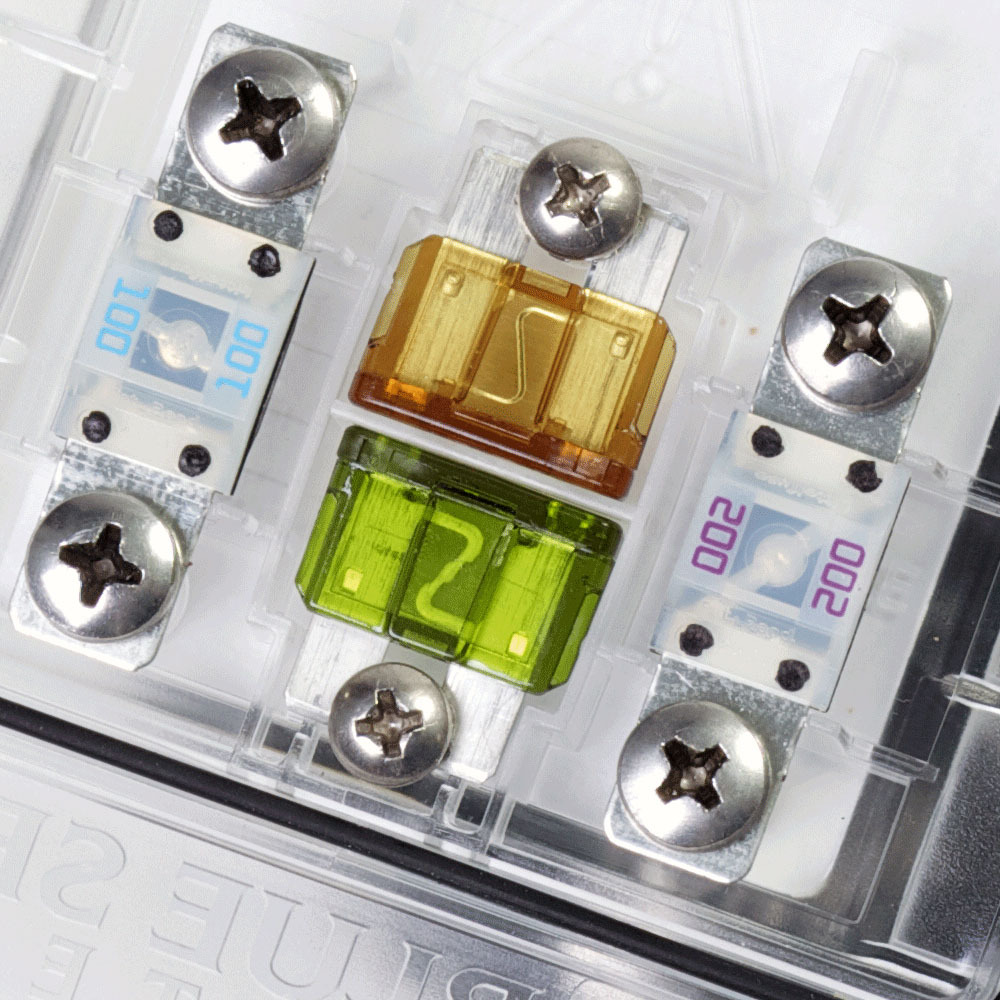

  • A cover provides storage space for two spare ATO® or ATC® and two spare AMI® or MIDI® fuses and mounting screws
  • One-piece stainless flange nuts ensure safe and secure connections
  • Fuses sold separately



Specifications
Circuits 10
Stud Size M8 x 1.25
Operating Voltage 12V
24V
32V
Amperage Maximum Operating - combined 200A
350A
600A
Recommended Ring Terminal M8 (5/16")
Screw Torque, 8-32 18in-lb (2.03 Nm)
Screw Torque, M5 27in-lb (3.05 Nm)
Stud Torque 180 in-lb (20.34 Nm)
Weight 3.50lb (1.59 kg)





SKU BSS.7748
Model # 7748B
UPC/EAN 632085077488
Brand Blue Sea Systems
Shipping Weight 0.9000kg
3 years
