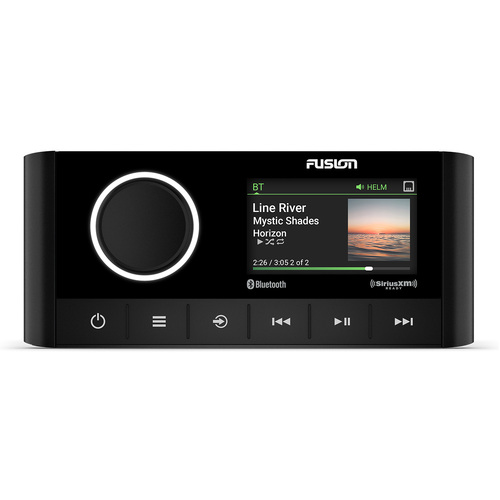

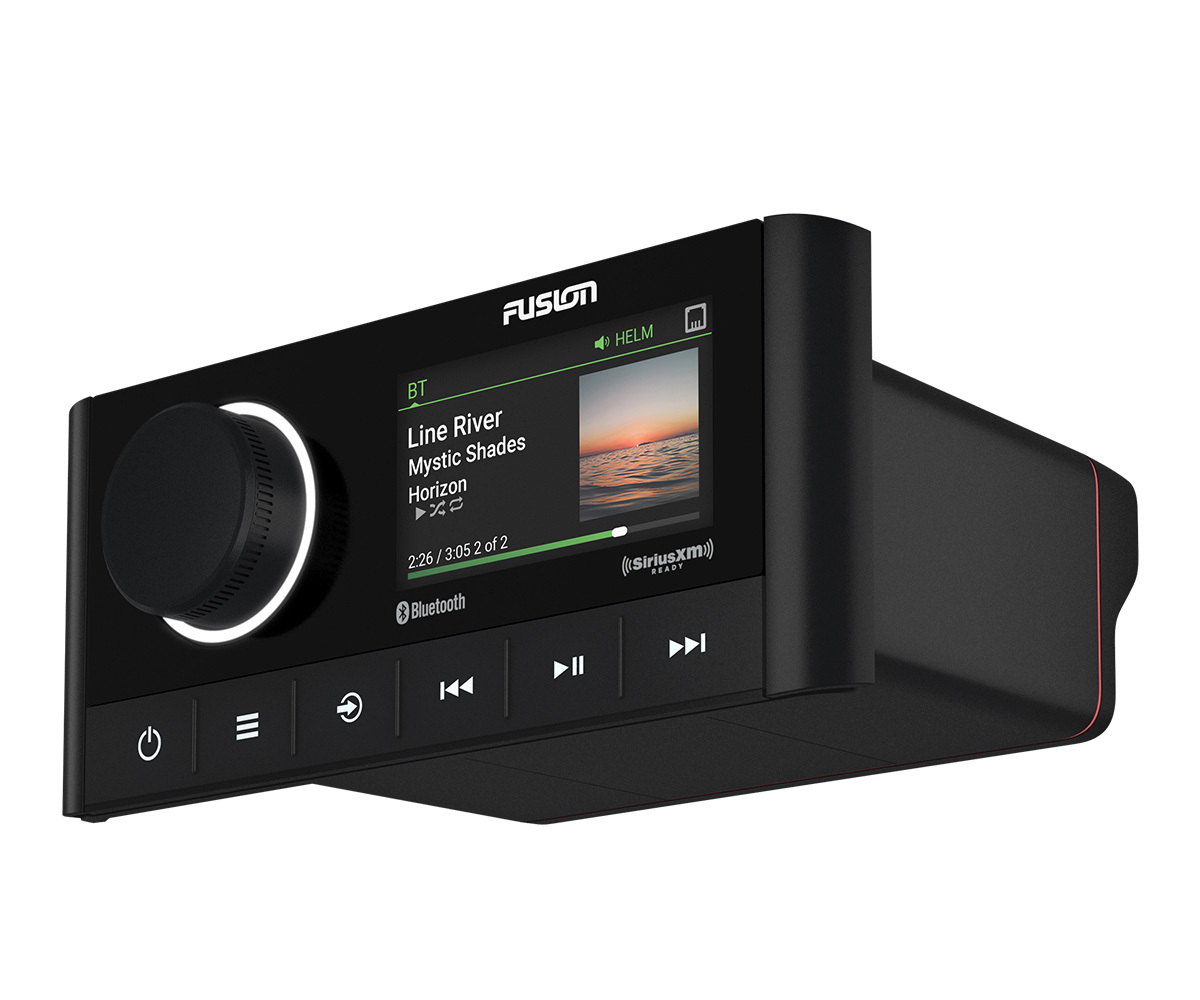

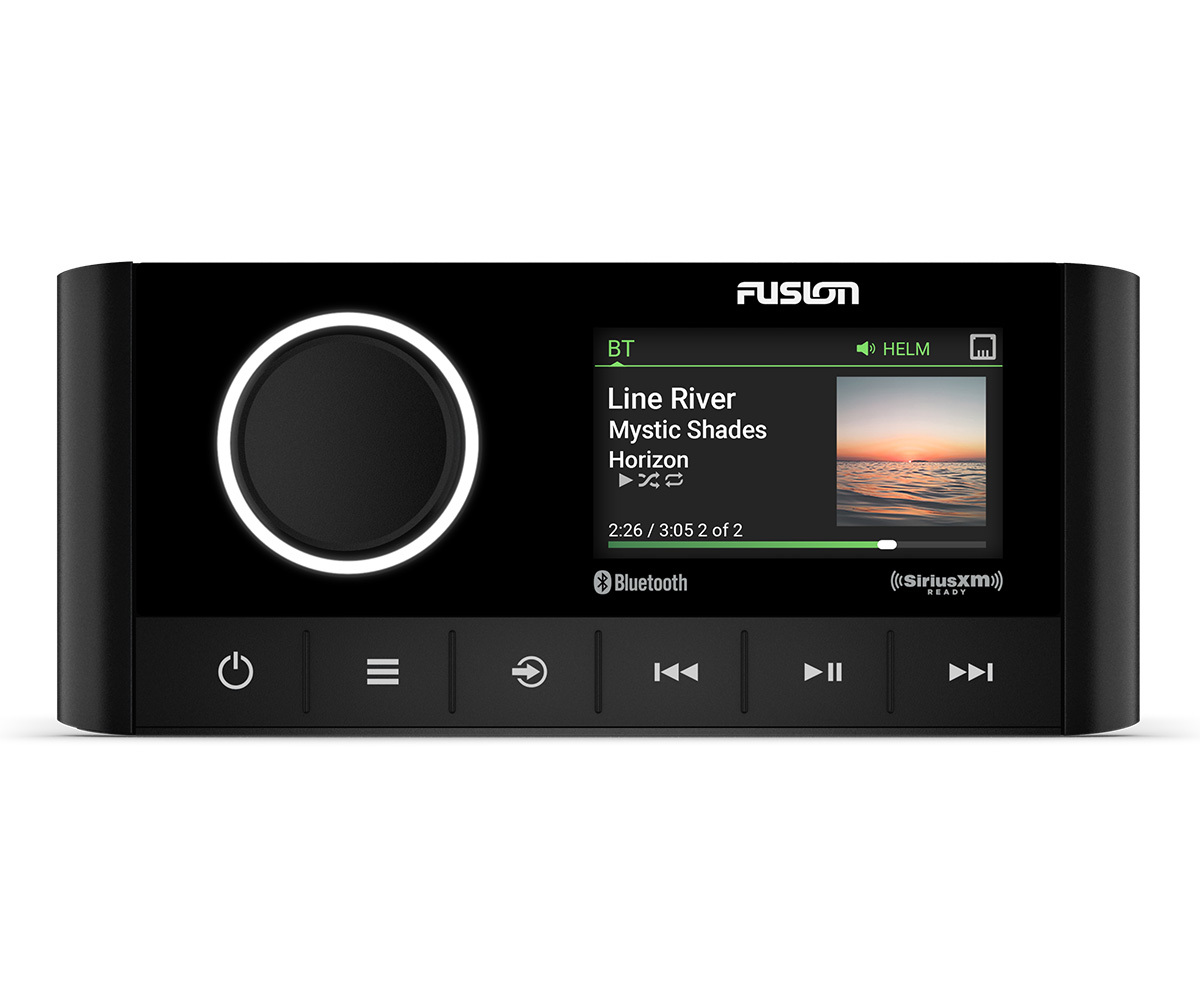

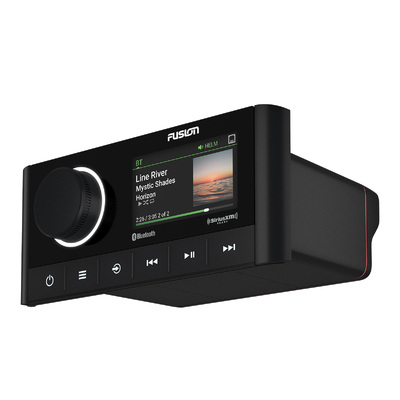

Fusion Apollo RA670
The Apollo RA670 harnesses the power of Fusion DSP, letting you optimize each audio zone on your vessel with your Fusion speakers, for premium listening in any environment.
SKU: FUS.010-02138-00 | MPN: 010-02138-00
SAVE 17%!
Special OrderSpecial Order from Supplier
Non Returnable/Non Refundable

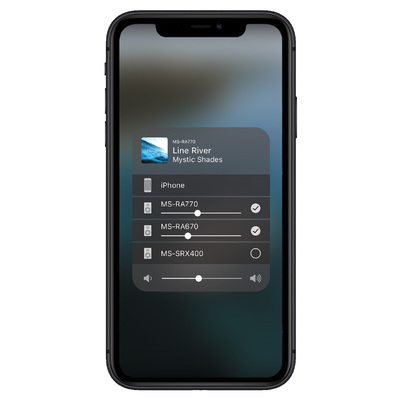

AM / FM / Bluetooth / Apple AirPlay 2* / digital optical input / USB audio / iPhone / iPod / AUX x1 / UPnP* / MTP / SiriusXM-Ready (USA only, requires optional SiriusXM Connect vehicle tuner) / DAB+ ready (available in Europe and Australia only)
Fusions revolution Continues with the extension of the award-winning Apollo Series with the RA670 marine stereo. The Apollo 670 inherits key audio innovations and technological

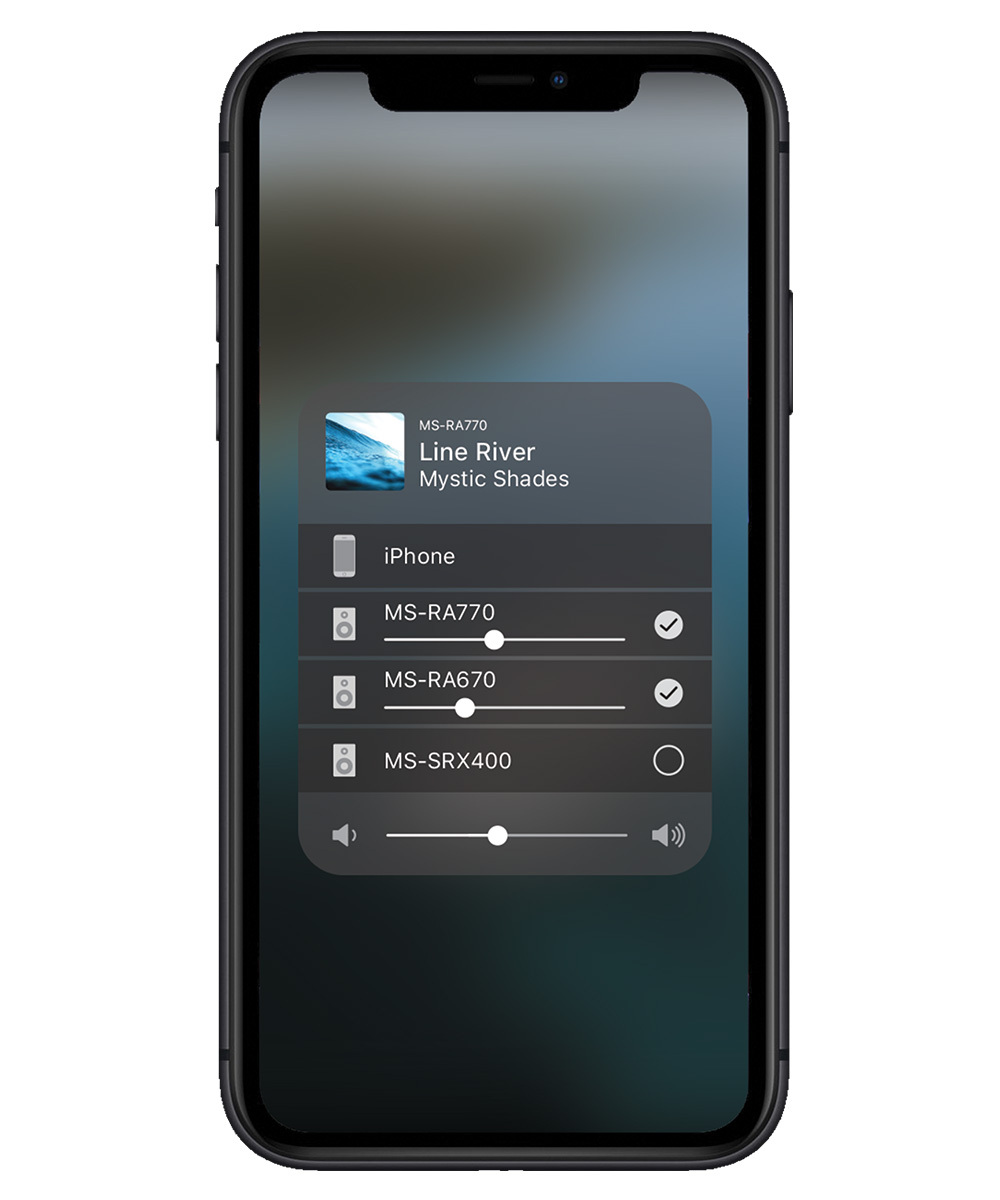

brilliance from the award-winning Apollo RA770, reembodied in a more compact form factor. Experience the powerful features including optical audio for connection and audio playback from modern TVs, Wi-Fi audio streaming* and over-the-air software updates (When connected to a wireless router or integrated into a Wi-Fi enabled Apollo Series stereo network) via the Fusion-Link app. With the power of advanced DSP technology, the RA670 delivers you a technically superior listening experience - without the need for you to have a technical understanding. Enjoy the freedom of musical choice with Fusion’s PartyBus, the audio distribution network of the future.
HIGH-QUALITY AUDIO THROUGH DSP
The power of Fusion’s Digital Signal Processing (DSP) enables the optimization of Fusion speakers in each audio zone on your vessel. Our system approach ensures every step of the audio chain is optimized through calculations by our engineers to deliver a technically superior listening experience – without the need for you to have a technical understanding. From the kick drum to your eardrum Fusion DSP reproduces your music the way the musicians intended.
FUSION-PARTYBUS VIA ETHERNET
The power of PartyBus enables other PartyBus products on the network to connect to the RA670 (via Ethernet) in Party Mode and play the same perfectly synced audio source through the entire vessel. Opt into Personal Mode on any PartyBus enabled product and listen to available audio sources from your stereo in the area of your choice without disrupting Party Mode in the other areas of the vessel.
FUSION-LINK CONTROL
Fusion-Link makes the control of your on-water entertainment easier than ever. Quickly find your favourite song, tune in to the sports or turn up the volume all from your partnered Multi-Function Display (MFD), compatible smartphone or Garmin watch.
| GENERAL | |
| Physical dimensions | Stereo dimensions (H x W x D): 68 x 157 x 123 mm |
| Weight | 750 g |
| Water rating | IPX6 and IPX7 (front panel only, when properly installed) |
| Power input | 10.8-16 VDC |
| Operating temperature range | 0° to 50° C |
| Current (max.) | 15 A |
| NMEA 2000 LEN | 1 (50 mA) |
| Bluetooth wireless range | 10 metres |
| ANT wireless range | 3 metres |
| Wireless frequencies/protocols | Bluetooth 2.4 GHz @ +13.29 dBm nominal ANT 2.4 GHz @ +6.92 dBm nominal |
| Compass-safe distance | 200 mm |
| Stereo features | |
| Display | 2.7-inch optically bonded colour LCD |
| Built-in amplifier | Class-D (2 Ohm stereo-stable) |
| Peak power | 280 W |
| Rated power output (2 Ohm) | 43 W rms x 4 @ 14.4 V input < 10% THD |
| Rated power output (4 Ohm) | 26 W rms x 4 @ 14.4 V input < 10% THD |
| Built-in Digital Signal Processing | Yes (with preconfigured DSP profiles) |
| PartyBus™-Network capabilities | Yes (wired) |
| Fusion-Link™ control | Yes (with MFD, smartphone and Garmin watch) |

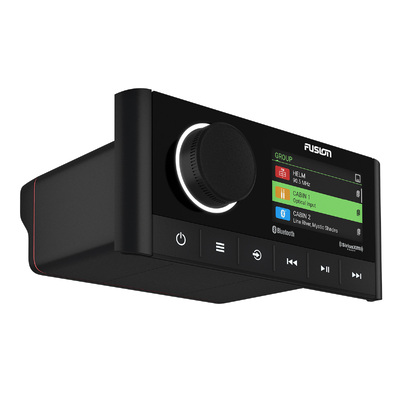

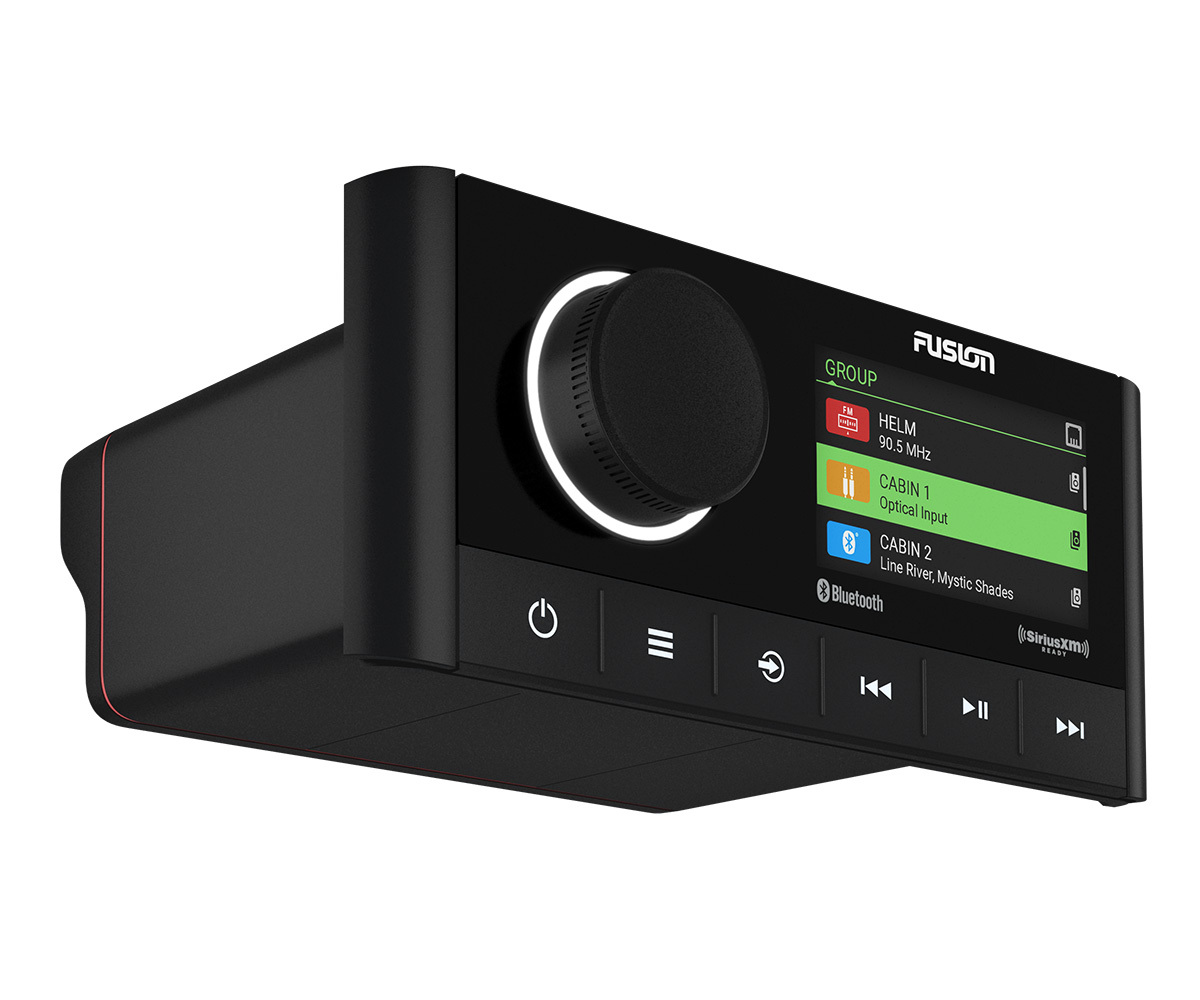

| Multi-Zone™ technology | 3 zones |
| Bluetooth wireless technology | Yes |
| ANT wireless technology | Yes |
| SiriusXM-ready | Yes (requires SiriusXM Connect vehicle tuner) |
| DAB+ ready | Yes (requires DAB100A antenna module) |
| Optical audio input | Yes |
| NRX remote compatibility | Yes |
| Software updates | Over-the-air software updates via the Fusion-Link app*, USB |
| Warranty | 3 years |
| Sources | |
| Sources | AM / FM / Bluetooth / Apple AirPlay 2* / digital optical input / USB audio / iPhone / iPod / AUX x1 / UPnP* / MTP / SiriusXM-Ready (USA only, requires optional SiriusXM Connect vehicle tuner) / DAB+ ready (available in Europe and Australia only) |

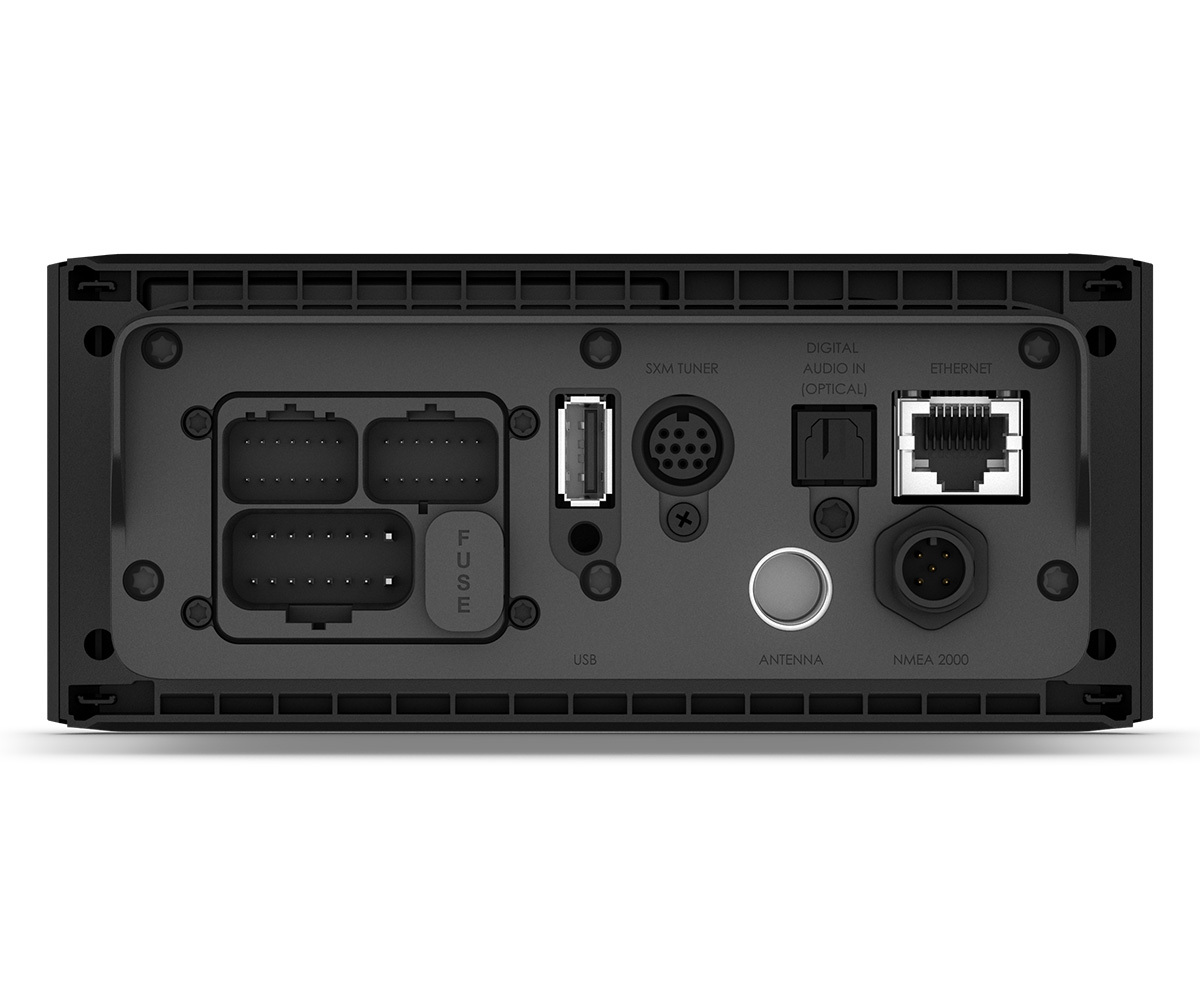

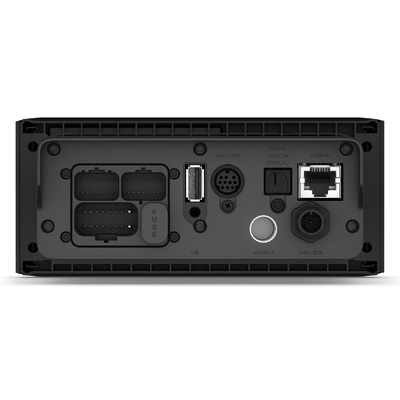

| Connectivity | |
| Auxiliary input | One RCA input (AUX) |
| Optical audio input | One digital optical input (SPDIF) port |
| Ethernet | One Ethernet port |
| NMEA 2000 | One NMEA 2000 port |
| USB 2.0 | One USB 2.0 port |
| SiriusXM satellite radio | One SiriusXM port (requires SiriusXM Connect vehicle tuner; does not support traffic and weather) |
| AM/FM radio | One Motorola antenna connector port |
| Speaker | 4 x speaker connections (2 zone amplified) |
| RCA Pre-out (left, right and subwoofer) | 3 zones (requires external amplification) |
| Line out | 3 (1 x L + R per zone, requires external amplification) |
| Subwoofer out | 1 x mono output (requires external amplification) |
| Updates | Available via USB. Over-the-air software updates are available when the RA670 is connected to a wireless router or integrated into a Wi-Fi-enabled Apollo Series stereo network via Ethernet. |
(*) When connected to a wireless router or integrated into a Wi-Fi enabled Apollo Series stereo network.
| SKU | FUS.010-02138-00 |
| Model # | 010-02138-00 |
| UPC/EAN | 0753759221751 |
| Brand | Fusion |
| Shipping Weight | 1.4100kg |
