THE APOLLO RA770 STEREO’S PERFECT COMPANION

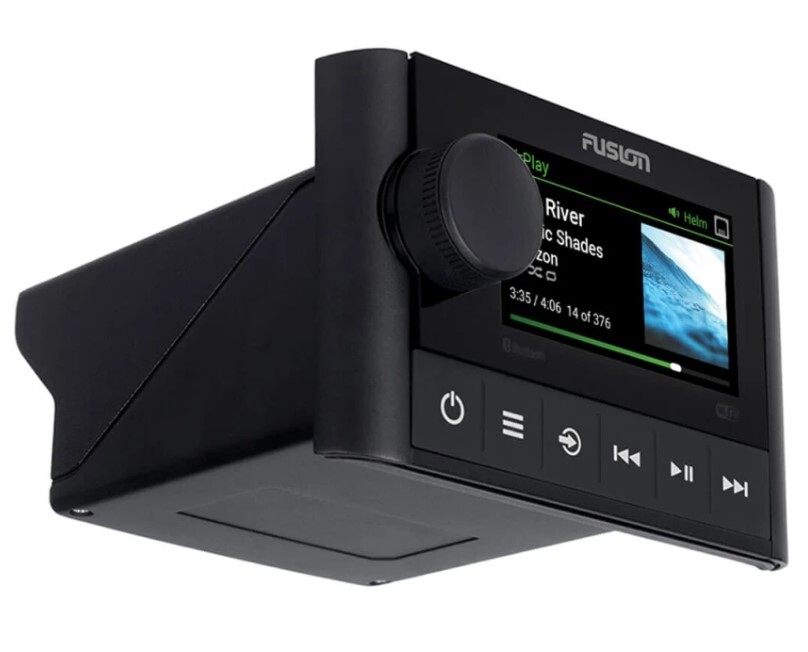

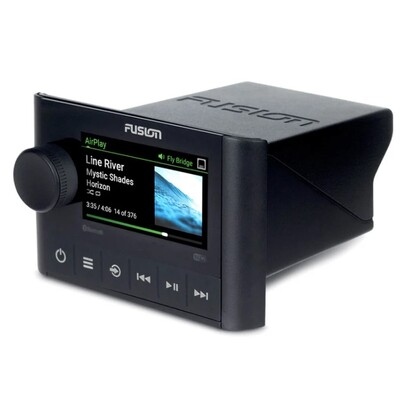

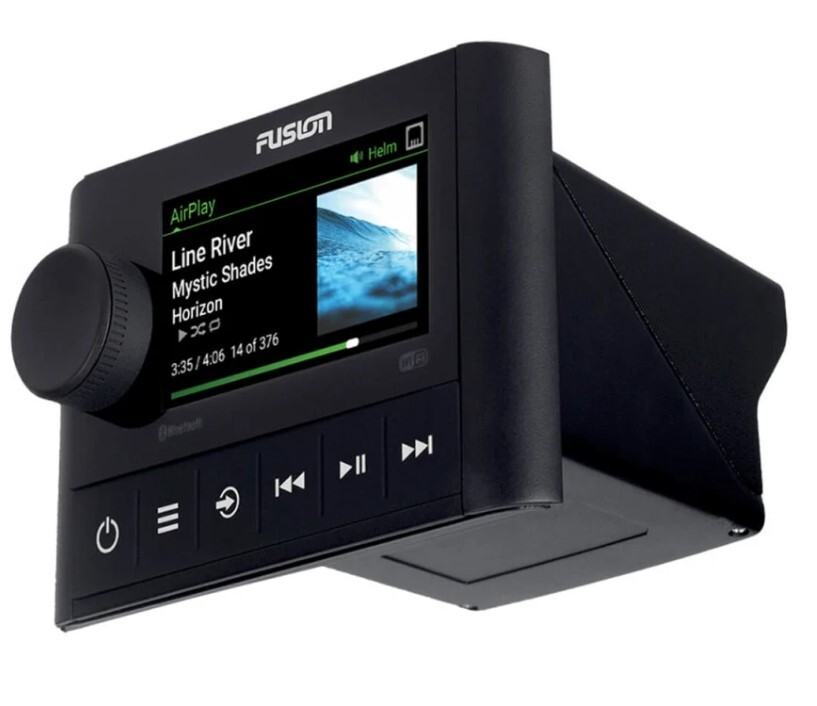

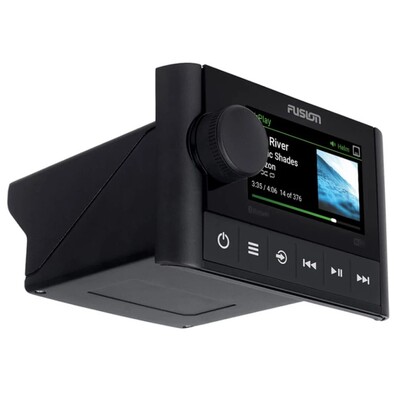

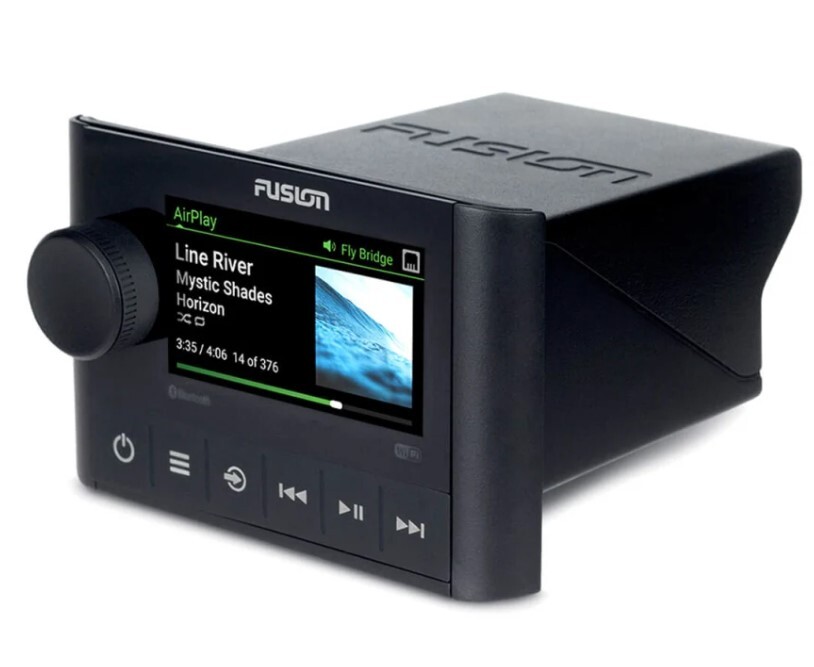

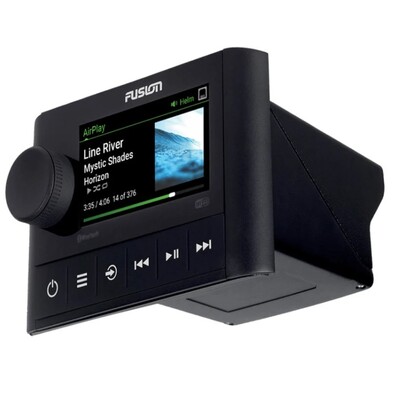

A perfect companion to Apollo RA770, the Apollo SRX400 zone stereo combines premium design and superior sound in a compact form factor.

ESIGNED AND ENGINEERED TO TRUE-MARINE™ STANDARDS

Built on the True-Marine design philosophy from Fusion, the Apollo SRX400 stereo has an IPX6 and IPX7 rated water-resistant front panel and has been tested to a high level of protection against salt, fog, temperature, vibration and UV.

MODERN DESIGN AND AESTHETICS

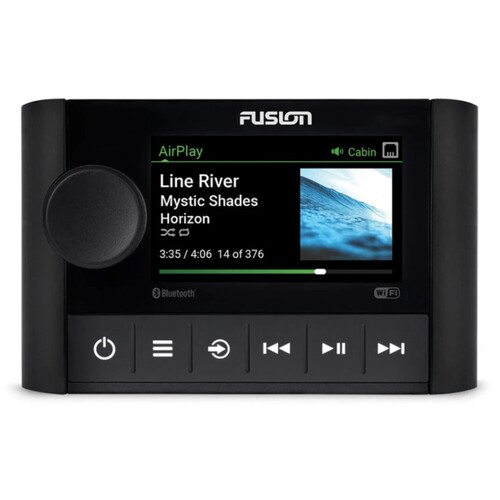

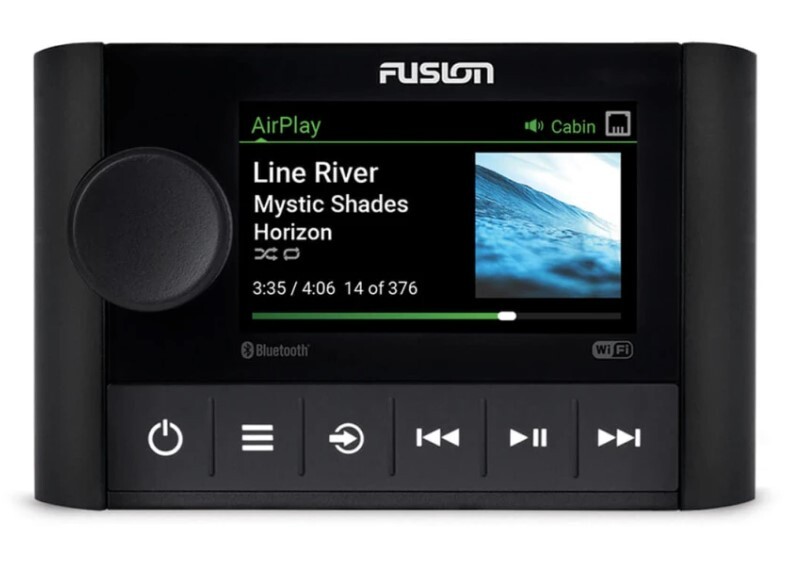

Providing uniformity across the helm, the brilliantly designed black front face blends seamlessly into black glass panels, complementing other electronics and MFDs for a tidy, uniform and elegant installation.

FUSION DIGITAL SIGNAL PROCESSING (DSP)

A technically superior listening experience made simple, Fusion DSP optimises the audio signal delivered to your Fusion system to produce superior sound quality at all volume levels, in every listening environment.

EASY-TO-INSTALL DSP PROFILES

With a few clicks on your compatible smartphone, setting up your DSP profiles is made simple with the free Fusion-Link™ app. You can set up the preconfigured DSP profiles once and enjoy listening to high-quality audio customised for your ears and the environment.

General

Physical dimensions Stereo dimensions (H x W x D): 70 x 110 x 122 mm
Weight 340 g
Water rating IPX6 and IPX7 (front panel only, when properly installed)
Power input 10.8-16 VDC
Operating temperature range 0° to 50° C
Current (max.) 8 A
Bluetooth wireless range Up to 10 metres)
Wireless frequencies/protocols Wi-Fi 2.4 GHz @ +15 dBm nominal
Bluetooth 2.4 GHz @ +10 dBm nominal
Compass-safe distance 100 mm

Stereo features

Display 2.7-inch optically bonded colour LCD
Built-in amplifier Class-D (2 Ohm stereo-stable)
Peak power 140 W
Rated power output (2 Ohm) 43 W rms x 2 @ 14.4 V input < 10% THD
Rated power output (4 Ohm) 26 W rms x 2 @ 14.4 V input < 10% THD
Built-in Digital Signal Processing Yes (with preconfigured DSP profiles)
t*{v5}PartyBus™-Network capabilities Yes (wired or wireless)
Fusion-Link™ control Yes (with MFD and smartphone)
Multi-Zone™ technology 1 zone
Built-in Wi-Fi Yes
Bluetooth wireless technology Yes
Multi-language interface Bulgarian / Chinese (Simplified) / Chinese (Traditional) / Croatian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Italian / Japanese / Korean / Norwegian / Polish / Portuguese (BR) / Portuguese (PT) / Slovenian / Spanish / Swedish / Thai / Turkish
Software updates Over-the-air software updates via the Fusion-Link app
Warranty 3 years

Sources

Sources AM / FM / Bluetooth / Apple AirPlay 2 / UPnP
SKU FUS.010-01983-00
Model # 010-01983-00
UPC/EAN 0753759198275
Brand Fusion
Shipping Weight 0.8700kg
