INJECTION-MOULDED POLYPROPYLENE (IMPP) CONE

By using a water-resistant IMPP cone it improves the robustness of the speaker, allowing for clean, clear audio reproduction.

LIGHTWEIGHT VOICE COIL

The lightweight design allows for higher sensitivity, resulting in increased power and efficiency to deliver an enhanced audio experience.

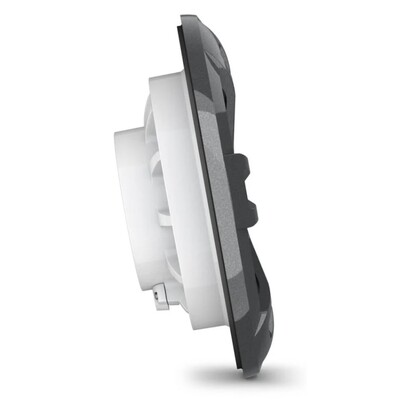

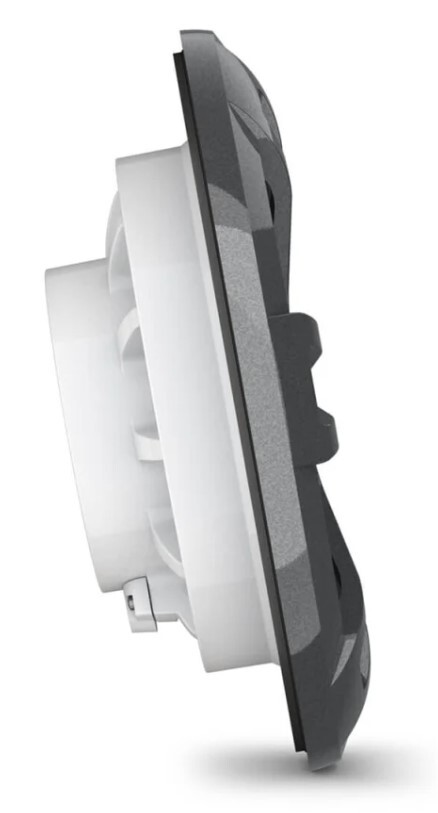

OPEN BASKET CONSTRUCTION

The optimised open back design allows for extended power handling and versatile mounting options with reduced mounting depth.

General

Weight Classic: 1.21 lbs (0.55 kg)
Sports: 1.26 lbs (0.57 kg)
Physical dimensions (diameter x depth) Classic: 6.93″ x 2.26″ (176 x 57.5 mm)
Sports: 6.93″ x 2.32″ (176 x 59 mm)
Water and dust rating IP65
Configuration Full range
Speaker size 6.5″
Peak power (Watts) 80 W
RMS power (Watts) 20 W
Sensitivity (1 W / 1 m) 91 dB
Frequency response 45 Hz-16 kHz
Nominal impedance 4 ohms
Recommended amplifier power (RMS) 20-40 W/Ch

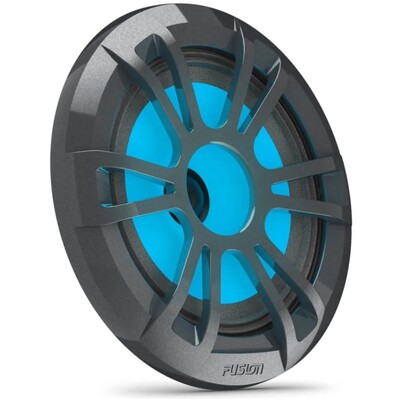

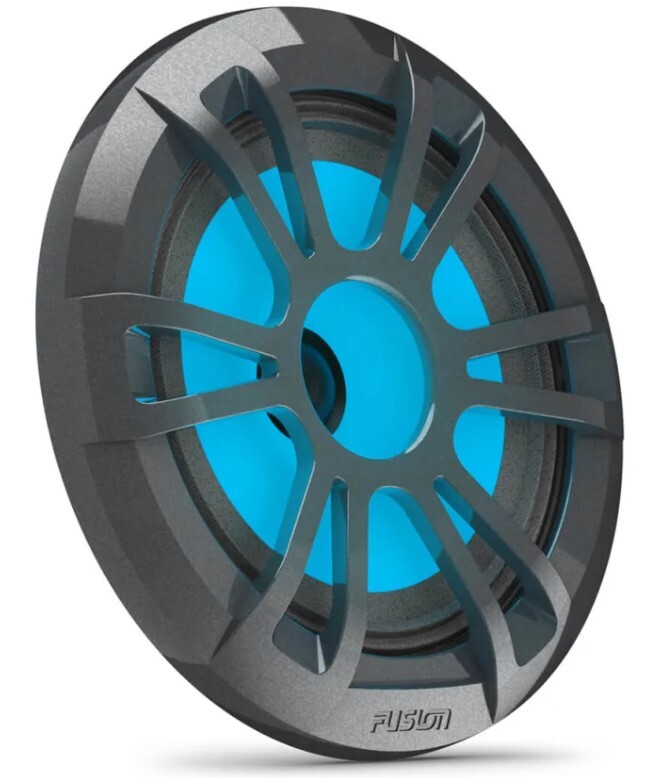

LED lighting Yes, RGB (sports-style only)
LED supply voltage 10.8-16 VDC (sports style only)
LED load current @ 16 VDC 150 mA (sports style only)
Operating temperature range 32° to 122° F (0° to 50° C)
Voice coil diameter 0.79″
Cone material Polypropylene cone with cloth surround
Compass-safe distance 100″ (254 cm)
Warranty 1 year

Mounting dimensions

Mounting diameter clearance 5.12″ (130 mm)
Mounting depth clearance 1.69″ (43 mm)
SKU FUS.010-02080-20
Model # 010-02080-20
UPC/EAN 0753759208707
Brand Fusion
Shipping Weight 0.5700kg
Shipping Width 0.176m
Shipping Height 0.057m
Shipping Length 0.176m
Shipping Cubic 0.001766000m3
Unit Of Measure ea
