CLEAR AUDIO, CLEAN AESTHETICS – ALL CLASS

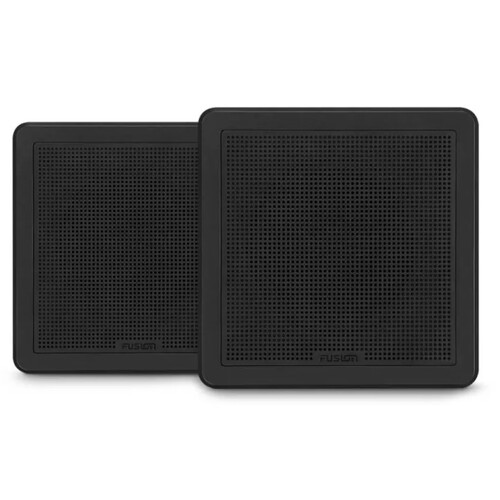

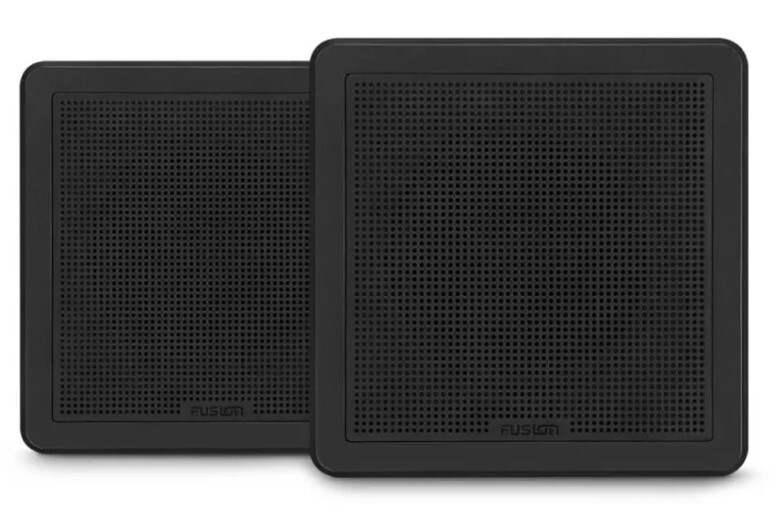

The Fusion FM Series speakers are engineered to deliver quality acoustics to your boat and have a sleek and minimalistic aesthetic to match modern boat design trends.

INNOVATIVE FLUSH MOUNT DESIGN

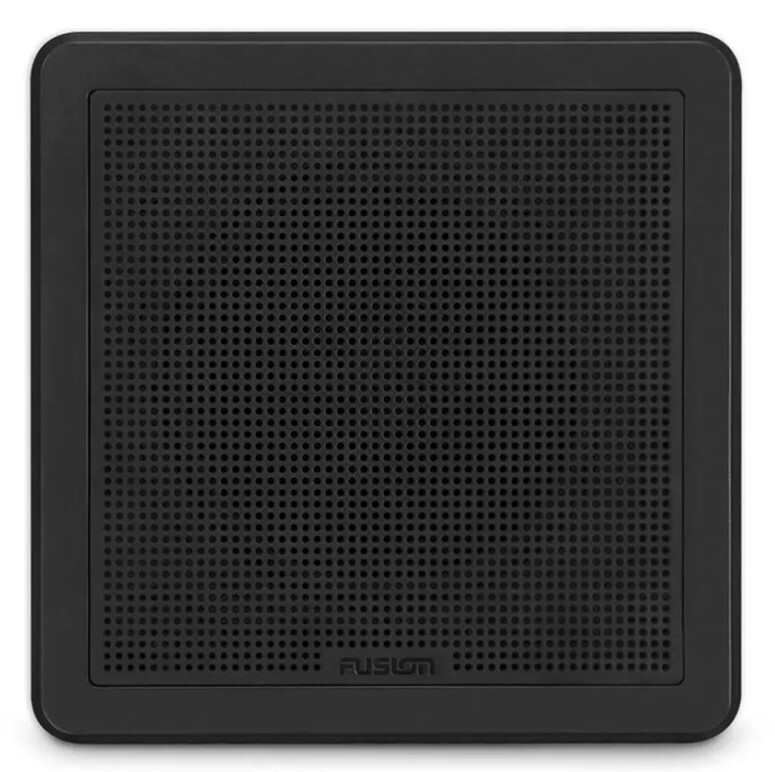

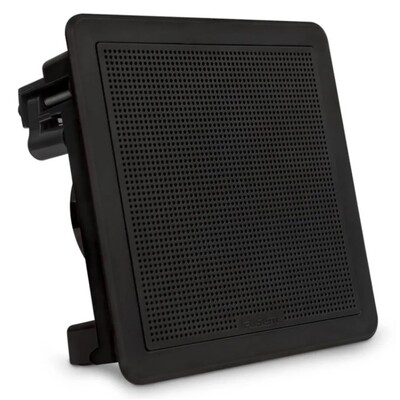

The FM Series speakers are designed to be flush-mounted with a mounting profile no thicker than 2.5 mm for a visually appealing, near flat finish. The sleek and minimalistic aesthetic allows the FM Series speakers to blend in seamlessly with your boat.

NON-INTRUSIVE MOUNTING SYSTEM

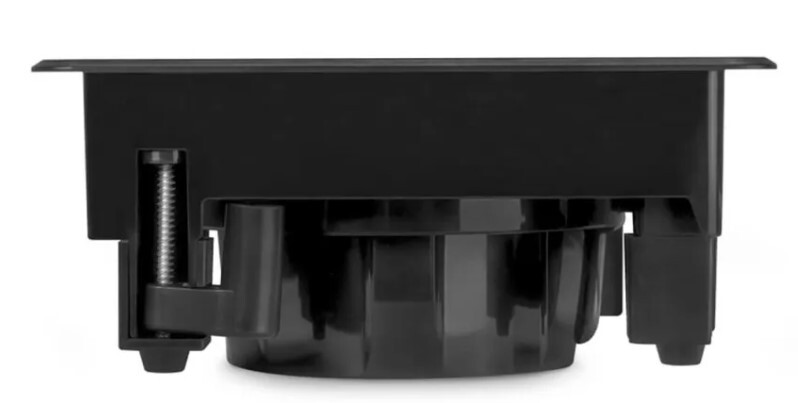

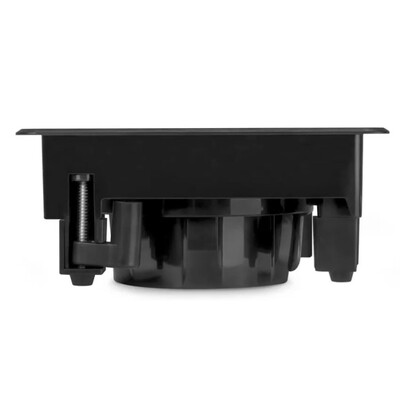

The FM Series speakers feature an intelligent mounting system. Simply place the speaker into the cutout, tighten the screws and the speaker legs will tighten against the panel, keeping it in place without needing to create any screw holes in your boat.

General

Physical dimensions7.7" Round (Diameter x Depth): 7.13" x 3.26" (181 x 82.9 mm)
7.7" Square (WxHxD): 7.13" x 7.13" x 3.26" (181 x 181 x 82.9 mm)
6.5" Round (Diameter x Depth): 6.02" x 2.74" (153 x 69.6 mm)
6.5" Square (WxHxD): 6.02" x 6.02" x 2.74" (153 x 153 x 69.6 mm)Water and dust ratingIP65ConfigurationCoaxialSpeaker size7.7": FM-F77RW/FM-F77RB/FM-F77SW/FM-F77SB
6.5": FM-F65RW/FM-F65RB/FM-F65SW/FM-F65SBPeak power (Watts)7.7": 200 W
6.5": 120 WRMS power (Watts)7.7": 50 W
6.5": 30 WSensitivity (1 W / 1 m)7.7": 91 dB
6.5": 87 dBFrequency response7.7": 80 Hz - 18 kHz
6.5": 100 Hz - 18 kHzNominal impedance4 ohmsRecommended amplifier power (RMS)7.7": 20 - 150 W/Ch
6.5": 15 - 80 W/ChOperating temperature range32° to 122° F (0° to 50° C)Voice coil diameter7.7": 1.18"
6.5": 1"Cone material7.7": Polypropylene cone with cloth surround
6.5": Polypropylene cone with rubber surroundTweeter typeAluminum domeCompass-safe distance7.7": 114.2" (290 cm)
6.5": 96.5" (245 cm)Warranty3 years

Mounting dimensions

Mounting diameter clearance7.7" Round: 6.50" (165 mm)
7.7" Square: 6.50" x 6.50" (165 x 165 mm)
6.5" Round: 5.43" (138 mm)
6.5" Square: 5.43" x 5.43" (138 x 138 mm)Mounting depth clearance7.7": 3.27" (83 mm)
6.5": 2.76" (70 mm)

Optimum enclosure recommendations

Size7.7": 0.28 cubic ft (8 L)
6.5": 0.14 cubic ft (4 L)

SKU FUS.010-02299-11
Model # 010-02299-11
UPC/EAN 0753759236656
Brand Fusion
Shipping Weight 2.2700kg
