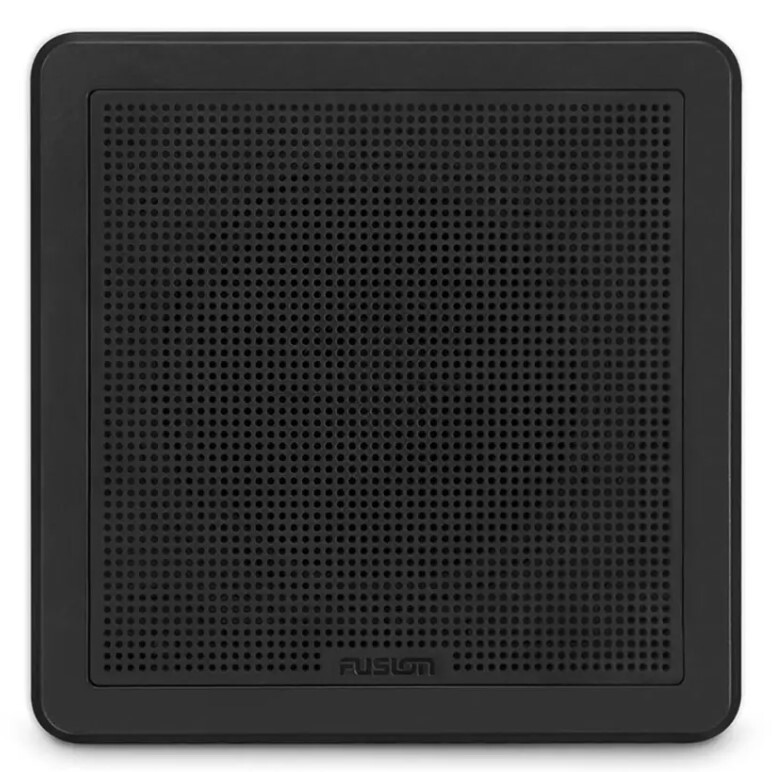

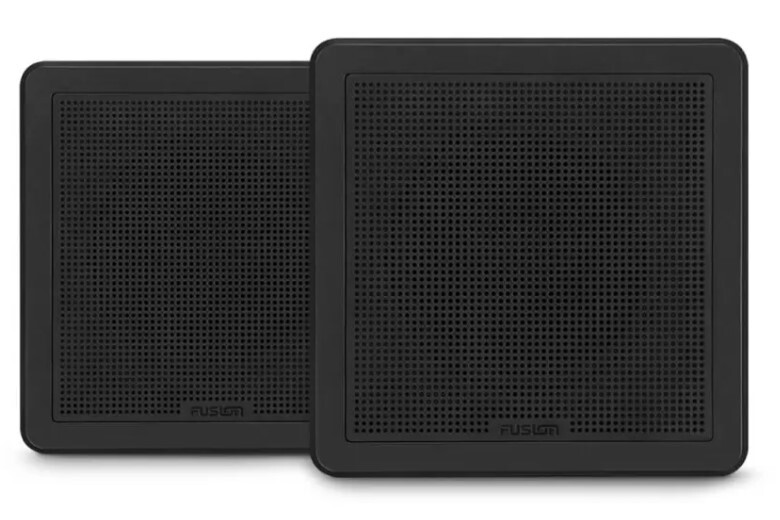

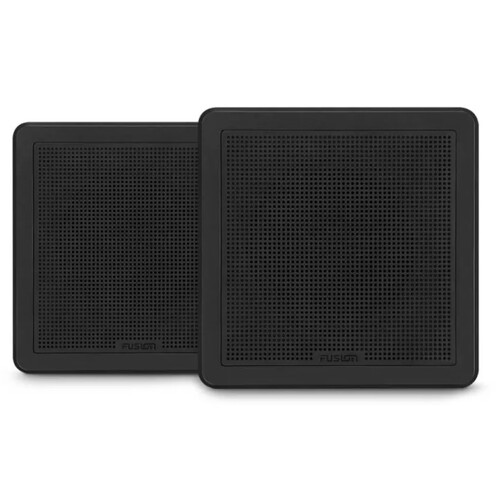

CLEAR AUDIO, CLEAN AESTHETICS – ALL CLASS

The Fusion FM Series speakers are engineered to deliver quality acoustics to your boat and have a sleek and minimalistic aesthetic to match modern boat design trends.

INNOVATIVE FLUSH MOUNT DESIGN

The FM Series speakers are designed to be flush-mounted with a mounting profile no thicker than 2.5 mm for a visually appealing, near flat finish. The sleek and minimalistic aesthetic allows the FM Series speakers to blend in seamlessly with your boat.

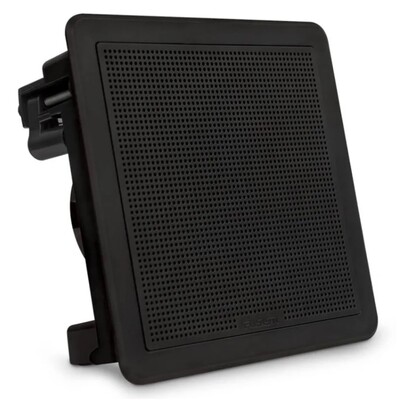

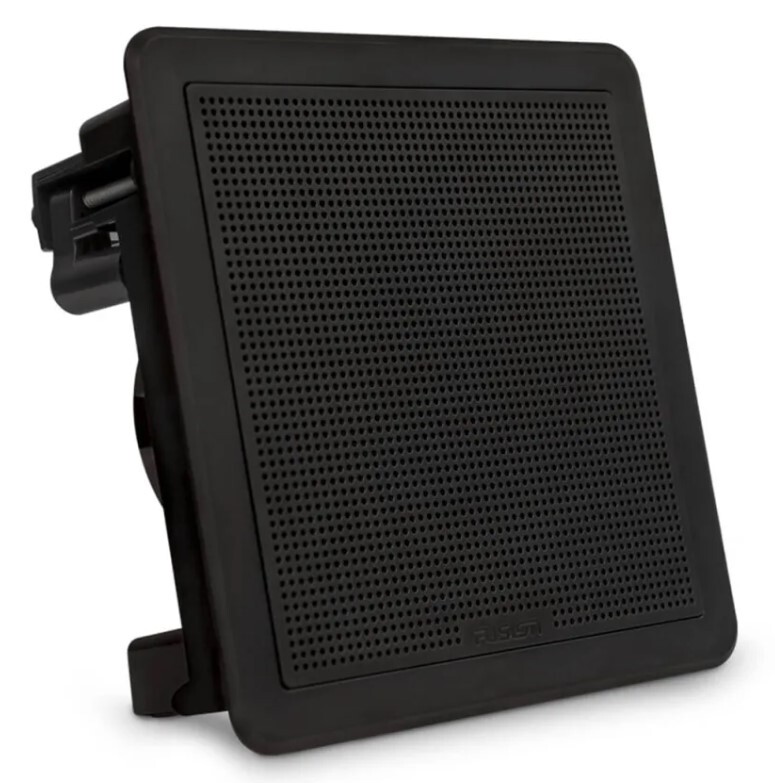

NON-INTRUSIVE MOUNTING SYSTEM

The FM Series speakers feature an intelligent mounting system. Simply place the speaker into the cutout, tighten the screws and the speaker legs will tighten against the panel, keeping it in place without needing to create any screw holes in your boat.

General


Physical dimensions 7.7" Round (Diameter x Depth): 7.13" x 3.26" (181 x 82.9 mm)
7.7" Square (WxHxD): 7.13" x 7.13" x 3.26" (181 x 181 x 82.9 mm)
6.5" Round (Diameter x Depth): 6.02" x 2.74" (153 x 69.6 mm)
6.5" Square (WxHxD): 6.02" x 6.02" x 2.74" (153 x 153 x 69.6 mm)
Water and dust rating IP65
Configuration Coaxial
Speaker size 7.7": FM-F77RW/FM-F77RB/FM-F77SW/FM-F77SB
6.5": FM-F65RW/FM-F65RB/FM-F65SW/FM-F65SB
Peak power (Watts) 7.7": 200 W
6.5": 120 W
RMS power (Watts) 7.7": 50 W
6.5": 30 W
Sensitivity (1 W / 1 m) 7.7": 91 dB
6.5": 87 dB
Frequency response 7.7": 80 Hz - 18 kHz
6.5": 100 Hz - 18 kHz
Nominal impedance 4 ohms
Recommended amplifier power (RMS) 7.7": 20 - 150 W/Ch
6.5": 15 - 80 W/Ch
Operating temperature range 32° to 122° F (0° to 50° C)
Voice coil diameter 7.7": 1.18"
6.5": 1"
Cone material 7.7": Polypropylene cone with cloth surround
6.5": Polypropylene cone with rubber surround
Tweeter type Aluminum dome
Compass-safe distance 7.7": 114.2" (290 cm)
6.5": 96.5" (245 cm)
Warranty 3 years

Mounting dimensions


Mounting diameter clearance 7.7" Round: 6.50" (165 mm)
7.7" Square: 6.50" x 6.50" (165 x 165 mm)
6.5" Round: 5.43" (138 mm)
6.5" Square: 5.43" x 5.43" (138 x 138 mm)
Mounting depth clearance 7.7": 3.27" (83 mm)
6.5": 2.76" (70 mm)

Optimum enclosure recommendations


Size 7.7": 0.28 cubic ft (8 L)
6.5": 0.14 cubic ft (4 L)
SKU FUS.010-02300-11
Model # 010-02300-11
UPC/EAN 0753759236694
Brand Fusion
Shipping Weight 3.3400kg
