DESIGNED AND ENGINEERED TO TRUE-MARINE™ STANDARDS

Built on the True-Marine design philosophy from Fusion, the FM Series subwoofers have an IP65 rating for protection against dust and water ingress and have been tested to a high level of protection against salt fog, temperature, vibration and UV.

DESIGNED TO COMPLY WITH ISO12216

Tested to international standards for pressure and water ingress, the FM Series subwoofers are designed and built for superior quality and robustness.

VERSATILE SYSTEM INTEGRATION

Built for system versatility and ease of integration, you can connect your FM Series subwoofer directly to a 2.1 audio zone compatible system such as the Apollo™ Series without the need for an external amplifier – reducing system cost and simplifying installation.

INJECTION-MOULDED POLYPROPYLENE CONE

By using a water-resistant IMPP cone, we are able to produce defined, high-resolution low-frequencies from the excellent self-damping and bass reproduction.

LARGE DIAMETER VOICE COIL

With an increase in real power and efficiency, the large diameter voice coil delivers a truly high-quality sound experience.

HIGH-QUALITY BASKET CONSTRUCTION

The basket is constructed using high-quality engineered plastics to deliver enhanced durability when exposed to the marine environment.

INNOVATIVE FLUSH-MOUNT DESIGN

The FM Series subwoofers are designed to be flush-mounted with a mounting profile no thicker than 3 mm for a visually appealing, near flat finish. The sleek and minimalistic aesthetic allows the FM Series subwoofers to blend in seamlessly with your boat.

NON-INTRUSIVE MOUNTING SYSTEM

The FM Series subwoofers feature an intelligent mounting system. Simply place the subwoofer into the cutout, tighten the screws and the subwoofer legs will tighten against the panel, keeping it in place without needing to create any screw holes in your boat.

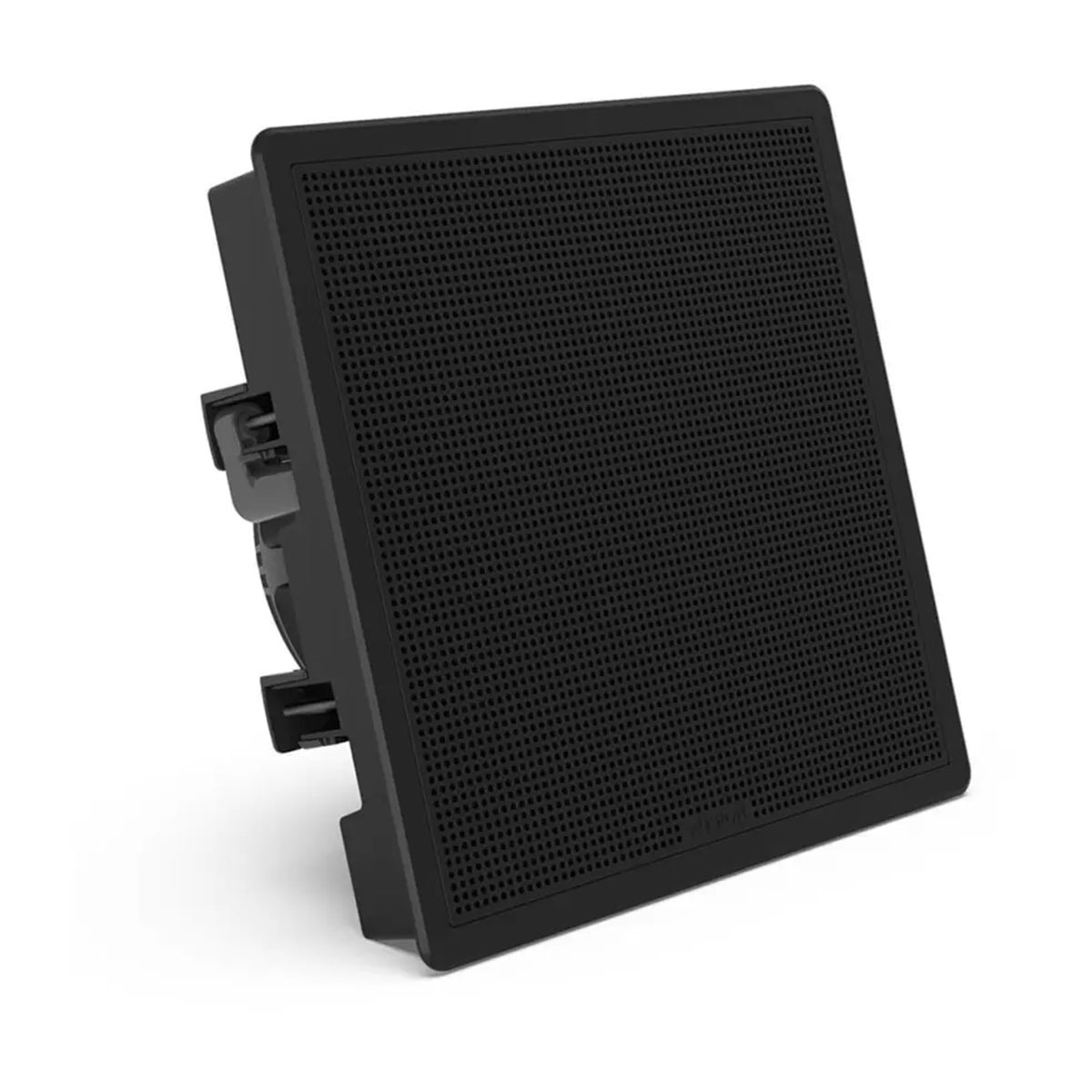

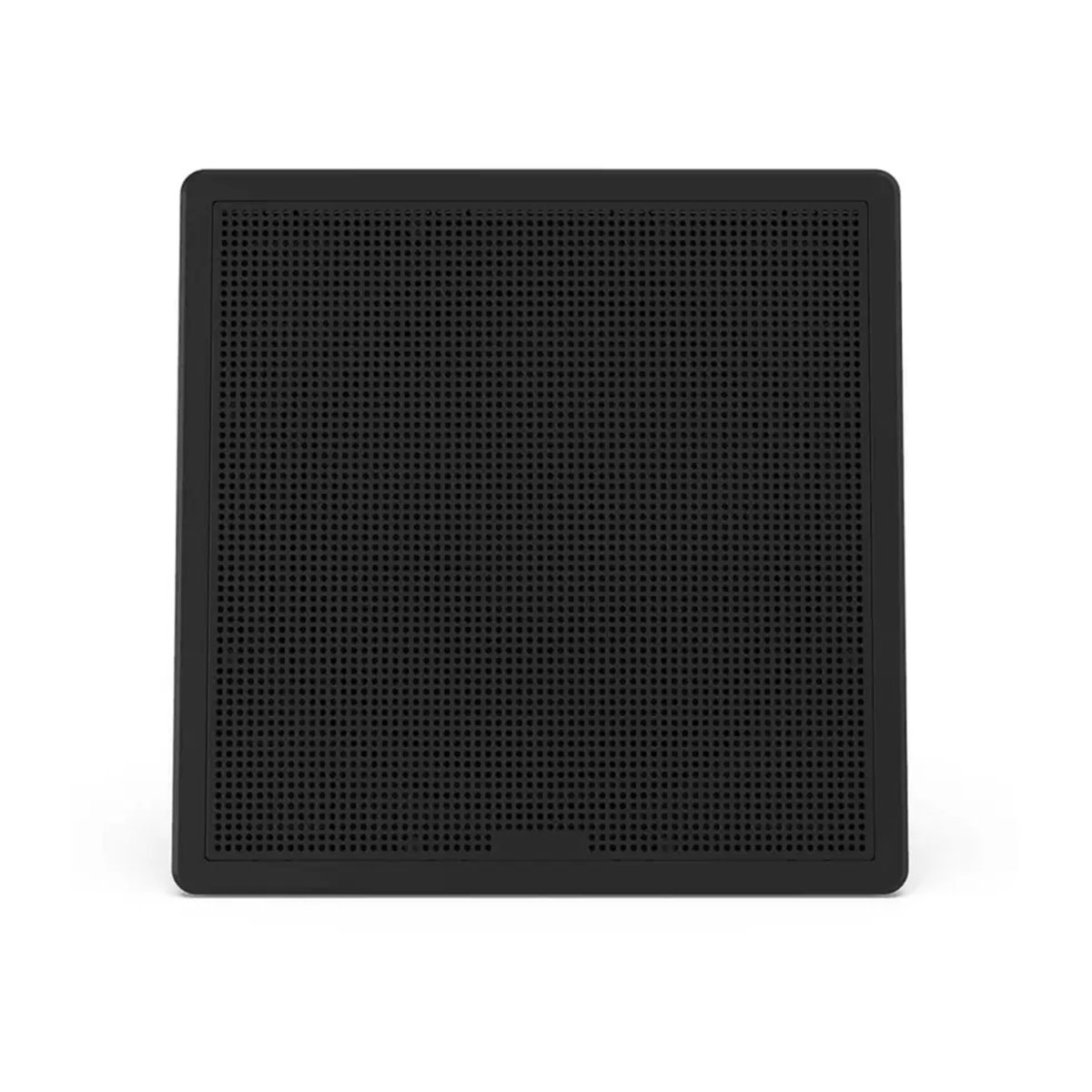

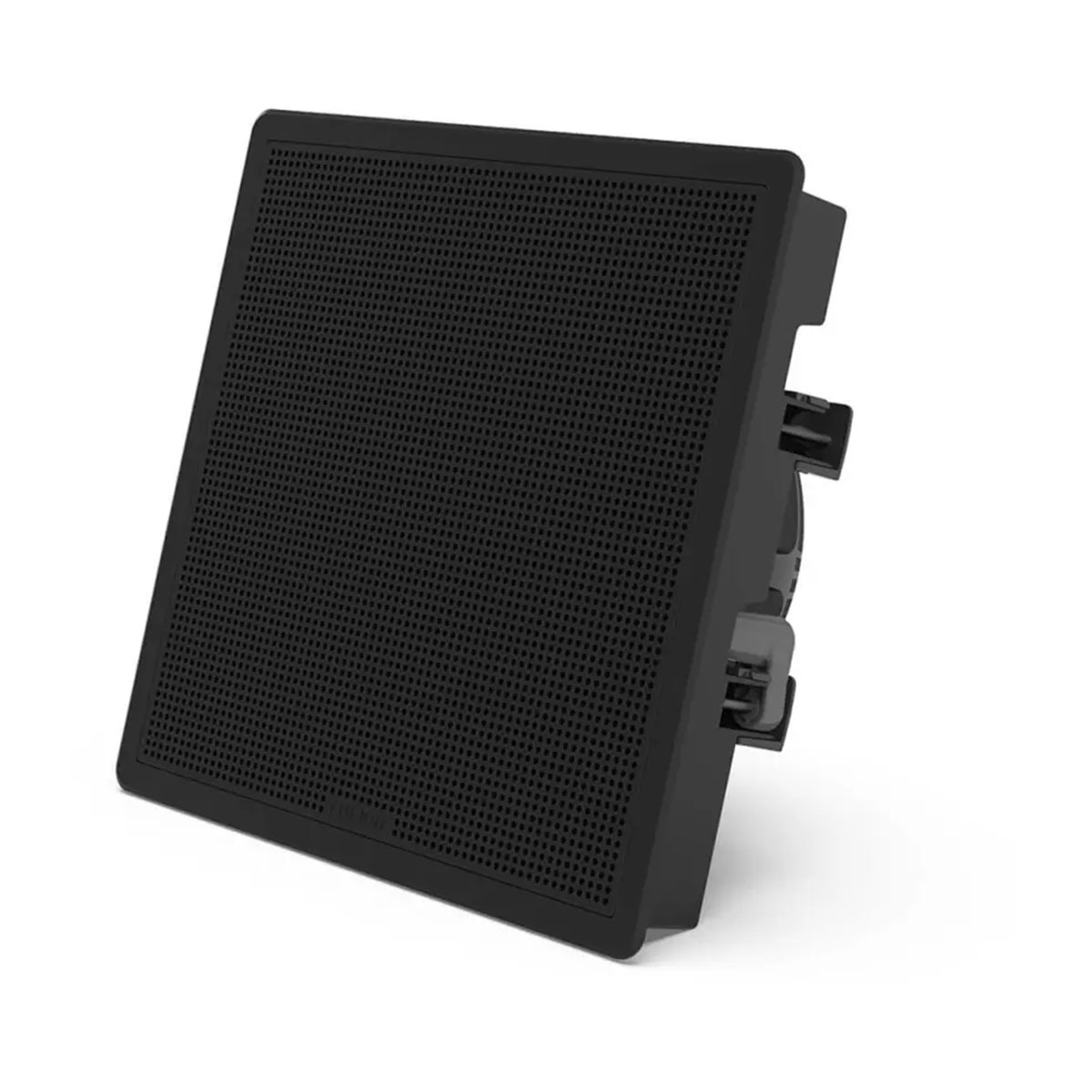

SQUARE BLACK SUBWOOFER

The FM Series square black subwoofer is available in a 10-inch size with a classic black grille for a seamless, modern finish.



FEATURES:

  • Innovative flush-mount design for a sleek and minimalistic finish.
  • Low profile, near flat installation with a mounting profile of just 3 mm.
  • Create a 2.1 audio zone to reduce system cost and simplify installation.
  • With an increase in real power, the voice coil provides a high-quality sound experience.
  • The subwoofers are available in 10-inch designs with a round or square form factor.
  • Engineered to last season after season, the subwoofers include a 3-year warranty.

General


Physical dimensions Round (Diameter x Depth): 11.18" x 5.49" (284 x 139.5 mm)
Square (WxHxD): 11.18" x 11.18" x 5.49" (284 x 284 x 139.5 mm)
Water and dust rating IP65
Speaker size 10"
Peak power (Watts) 400 W
RMS power (Watts) 120 W
Sensitivity (1 W/1 m) 87 dB
Magnetic structure 41 oz
Frequency response 30 Hz - 2 kHz
Nominal impedance 4 ohms
Recommended amplifier power (RMS) 40 - 300 W
Operating temperature range 32° to 122° F (0° to 50° C)
Voice coil diameter 1.5"
Cone material Polypropylene cone with rubber surround
Compass-safe distance 150" (381 cm)
Warranty 3 years

Mounting dimensions


Mounting diameter clearance Round: 10.59" (269 mm)
Square: 10.59" x 10.59" (269 x 269 mm)
Mounting depth clearance 5.51" (140 mm)

Optimum enclosure recommendations


Optimal enclosure size 1.4 cubic ft (40 L)
SKU FUIS.010-02301-11
Model # 010-02301-11
Brand Fusion
Shipping Weight 6.0000kg
Shipping Width 0.284m
Shipping Height 0.139m
Shipping Length 0.284m
Shipping Cubic 0.011211000m3
Unit Of Measure ea
