INDUSTRY BENCHMARK FOR MARINE ENTERTAINMENT

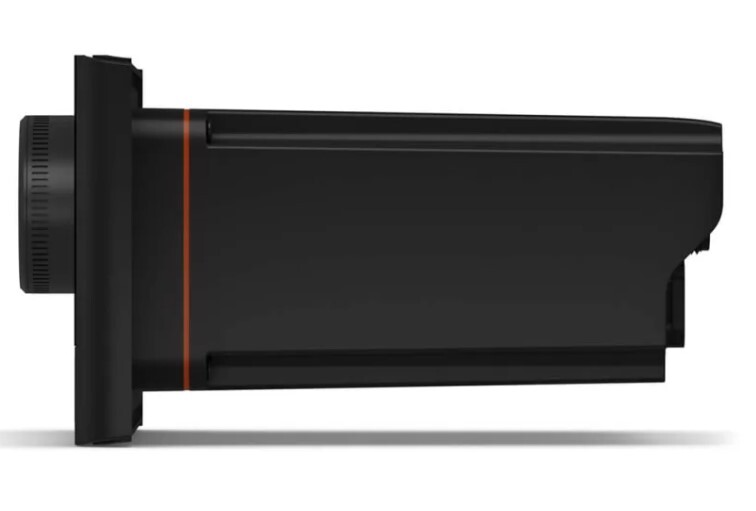

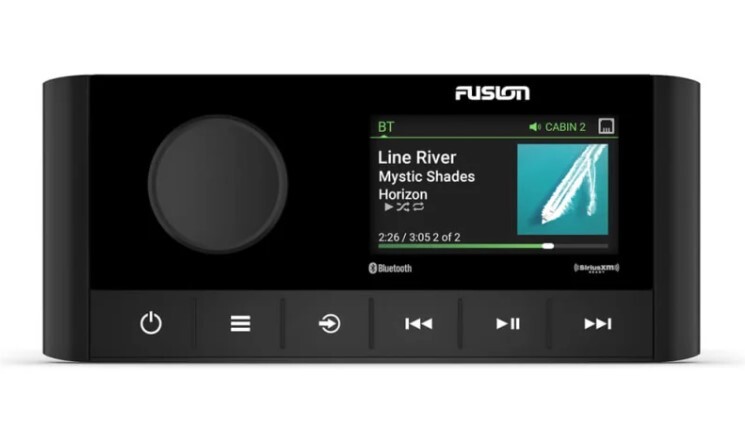

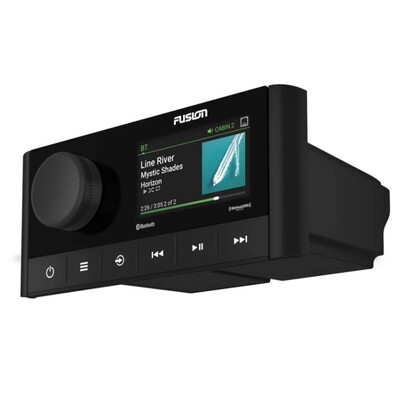

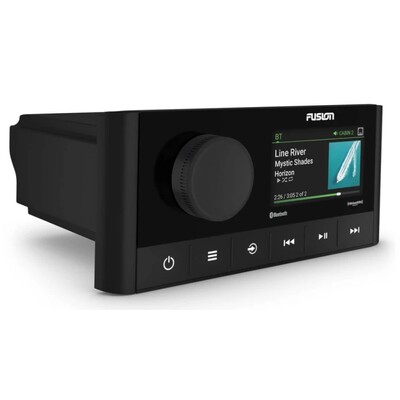

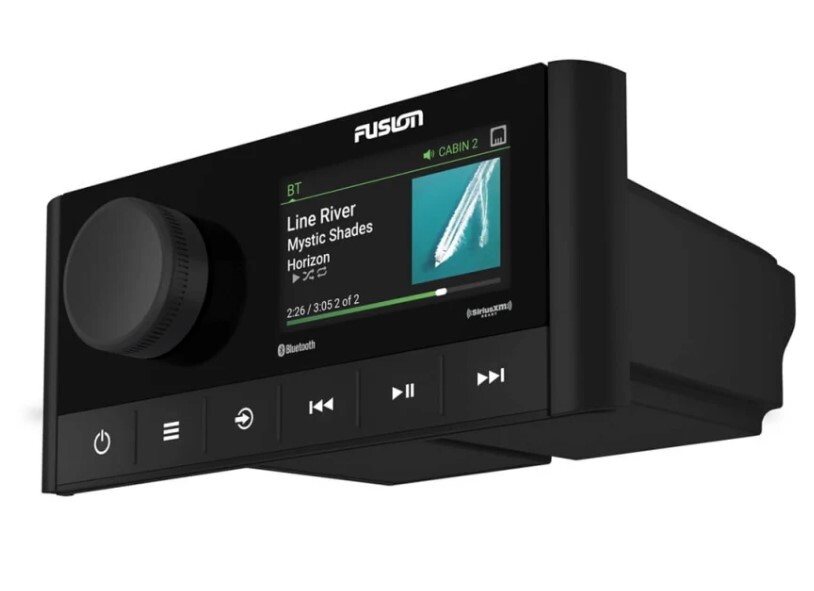

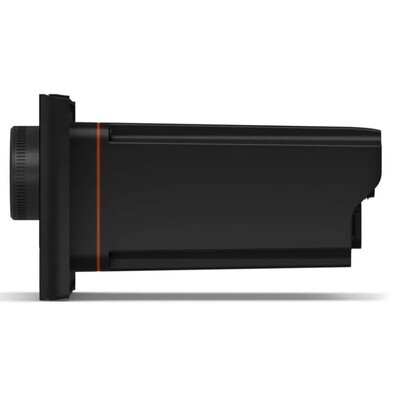

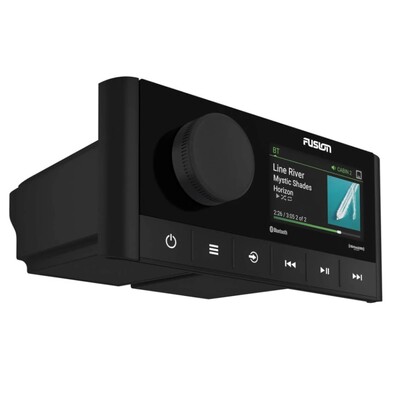

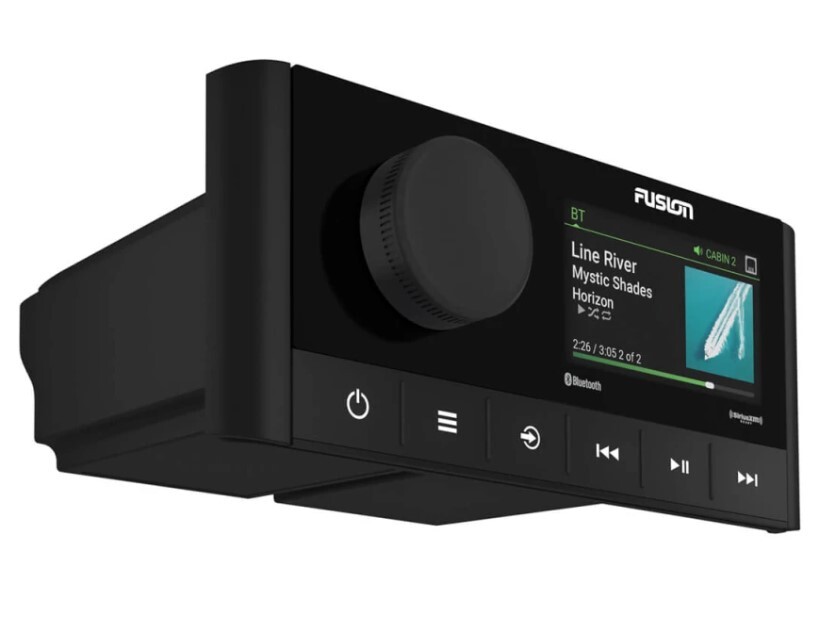

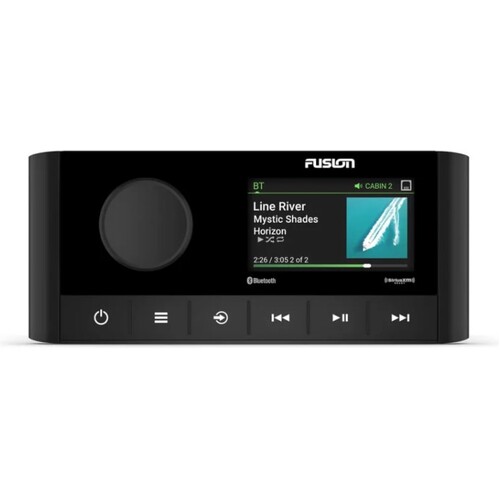

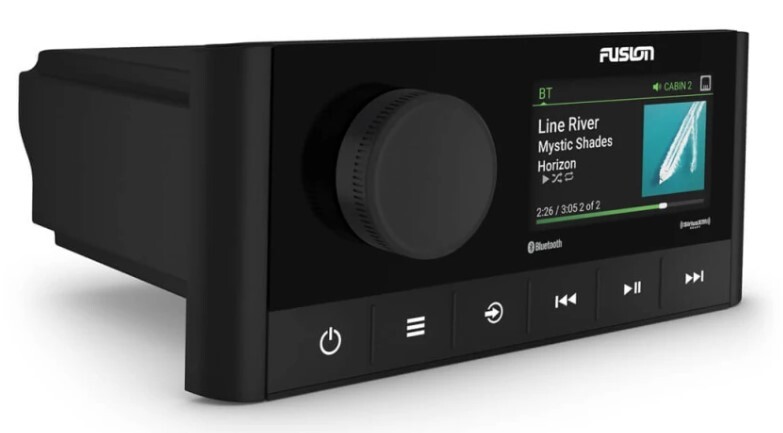

The MS-RA210 marine stereo from Fusion® is a stylish addition to your boat. Incorporating some of the Apollo™ Series’ key features, the stereo includes built-in digital signal processing (DSP) technology, modern design aesthetics and advanced source options.

IPX6 AND IPX7 INGRESS PROTECTION

Designed and engineered for the harsh marine environment, the MS-RA210 stereo has an IPX6- and IPX7-rated water-resistant front panel to perform and last on board.

MODERN DESIGN AND AESTHETICS

Providing uniformity across the helm, the black front face blends seamlessly into black glass panels, complementing other electronics and MFDs for a tidy and elegant installation.

SPEED VS. VOLUME

With your stereo connected to an NMEA 2000® network with an appropriate speed sensor installed, selecting Speed vs. Volume from the stereo’s settings menu enables audio volume to be automatically adjusted based on your boat’s speed. Faster = louder; slower = lower volume. Compatible speed sources include speed over ground, speed through water, engine RPM or wind speed.

FUSION DIGITAL SIGNAL PROCESSING (DSP)

A technically superior listening experience made simple, Fusion DSP optimises the audio signal delivered to your Fusion system to produce superior sound quality at all volume levels, in every listening environment.

EASY-TO-INSTALL DSP PROFILES

Setting up your DSP profiles is made simple with the free Fusion-Link™ app2. With just a few steps on your compatible smartphone, you can set up the preconfigured DSP profiles once and enjoy listening to high-quality audio customised for your ears and the environment.

FREEDOM OF CHOICE TO LISTEN TO WHAT YOU WANT

Take advantage of the many source options available, including Bluetooth® technology, DAB+ radio, AM/FM radio, AUX and USB connections.

General
DIMENSION 6.18" x 2.68" x 4.99" (156 x 68 x 126.6 mm)
DISPLAY 2.7" optically bonded color LCD
WEIGHT

0.77 lbs (350 g)
WATER RATING IPX6 and IPX7 (front panel only, when properly installed)
OPERATING TEMPERATURE 32° to 122° F (0° to 50° C)
CURRENT (MAX) 15 A

Networking
NMEA 2000® LEN 1 (50 mA)
BLUETOOTH® WIRELESS RANGE up to 30 ft (10 meters)
ANT® WIRELESS RANGE Up to 10 ft (3 meters)
WIRELESS FREQUENCIES/PROTOCOLS BLUETOOTH®: 2.4 GHz @ +12 dBm nominal
ANT®: 2.4 GHz @ +7 dBm nominal

Audio
AMPLIFIER Class-D (4 ohm)

Stereo Features
PEAK POWER 200 watts
RATED POWER OUTPUT (4 OHM) 26 watts RMS x 4 @ 14.4 V input < 10% THD
BUILT-IN DIGITAL SIGNAL PROCESSING (DSP) yes (with custom DSP profile setup using Fusion-Link™ app)
FUSION-LINK™ CONTROL yes (MFD, smart device and Garmin watch)
MULTI-ZONE™ TECHNOLOGY 2 zones
BLUETOOTH® WIRELESS TECHNOLOGY
ANT® WIRELESS TECHNOLOGY
SIRIUSXM-READY
DAB+ READY
SUPPORTS NRX WIRED REMOTE
MULTI-LANGUAGE INTERFACE

Bulgarian, Chinese (Simplified), Chinese (Traditional), Croatian, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese-Brazil, Portuguese-Portugal, Slovenian, Spanish, Swedish, Thai, Turkish
SOFTWARE UPDATES USB
WARRANTY 1 year

Sources
SUPPORTED SOURCES

AM, FM, BLUETOOTH®, USB audio, iPhone®, iPod®, AUX x1, MTP



SiriusXM-Ready (U.S. only, requires optional SiriusXM Connect vehicle tuner)



DAB+ ready (available in Europe and Australia only)

Connections
AUXILIARY INPUTS (RCA) 1
NMEA 2000® PORTS 1
USB 2.0 PORTS 1
SIRIUSXM PORTS 1
AM/FM PORTS (MOTOROLA ANTENNA CONNECTOR) 1
SPEAKER CONNECTIONS 4 (2 zone amplified)
RCA PRE-OUT (LEFT, RIGHT AND SUBWOOFER) 2 zones (requires external amplification)
LINE OUT 2 (L + R per zone, requires external amplification)
SUBWOOFER OUT 2 (1 mono output per zone, requires external amplification)

Electrical features
POWER INPUT 10.8 - 16 VDC
COMPASS SAFE DISTANCE 5.9" (150 mm)

General
Physical dimensions (H x W x D) 68 x 157 x 126.6 mm
Weight 350 g
Water rating IPX6 and IPX7 (front panel only, when properly installed)
Power input 10.8-16 VDC
Operating temperature range 0° to 50° C
Current (max.) 15 A
NMEA 2000® LEN 1 (50 mA)
Bluetooth wireless range Up to 30 ft. (10 m)
ANT wireless range Up to 10 ft. (3 m)
Wireless frequencies/protocols Bluetooth 2.4 GHz @ +12 dBm nominal
ANT 2.4 GHz @ +7 dBm nominal
Compass-safe distance 150 mm

Stereo features
Display 2.7″ optically bonded colour LCD
Built-in amplifier Class-D (minimum 4 Ohm impedance)
Peak power 180 W
Rated power output (4 Ohm) 26 W rms x 4 @ 14.4 V input < 10% THD
Built-in Digital Signal Processing Yes (with preconfigured DSP profiles)
Fusion-Link™ control Yes (with MFD, smartphone and Garmin watch)
Multi-Zone™ technology 2 zones
Bluetooth wireless technology Yes
ANT wireless technology Yes
DAB+ ready yes (requires DAB100A antenna module)
Multi-language interface Danish, Dutch, English, Finnish, French, German, GreekItalian, Japanese, Korean, Norwegian, Polish,Portuguese (BR/PT), Slovenian, Spanish, Swedish,
Software updates USB
Warranty 1 year

Sources
Sources AM / FM / Bluetooth / USB audio / iPhone / iPod / AUX x1 /MTP / DAB+ ready (available inEurope and Australia only)

Connectivity
Auxiliary input One RCA input (AUX)
NMEA 2000 One NMEA 2000 port
USB 2.0 One USB 2.0 port
SiriusXM satellite radio One SiriusXM port (requires SiriusXM Connect vehicle tuner; does not support traffic and weather)
AM/FM radio One Motorola antenna connector port
Speaker 4 x speaker connections (2 amplified zones)
RCA Pre-out (left, right and subwoofer) 2 zones (requires external amplification)
Line out Zone 1, Zone 2 (L + R, requires external amplification)
Subwoofer out Zone 1, Zone 2 (requires external amplification)
SKU FUS.010-02250-00
Model # 010-02250-00
UPC/EAN 0753759240363
Brand Fusion
Shipping Weight 1.2800kg
