MARINISED CONNECTORS

New, water-resistant connectors now come standard. This makes installation easy and provides superior protection from the harsh marine environment.

REDESIGNED GRILLE

Material enhancements and protective engineering maintain the sharp aesthetic appeal of your speakers, year after year.

TRUE-MARINE™ PHILOSOPHY

Any product that bears the Fusion True-Marine seal of assurance has been designed by Fusion to withstand the harshest marine environments season after season and comes with an industry-leading 3-year warranty.

POLYPROPYLENE CONE TECHNOLOGY

This technology provides exceptional self-dampening, high-fidelity and bass reproduction to give you the most premium onboard listening experience imaginable.

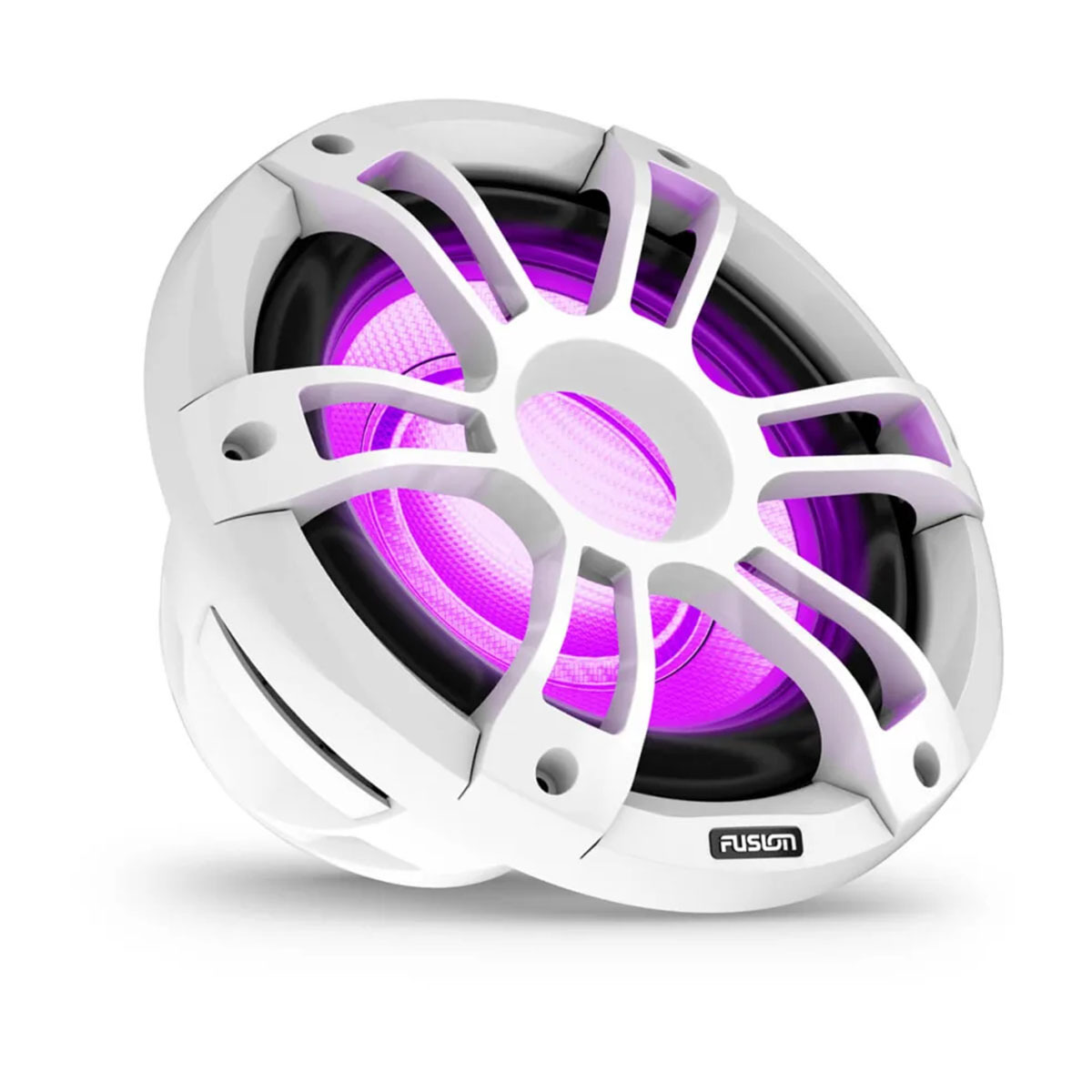

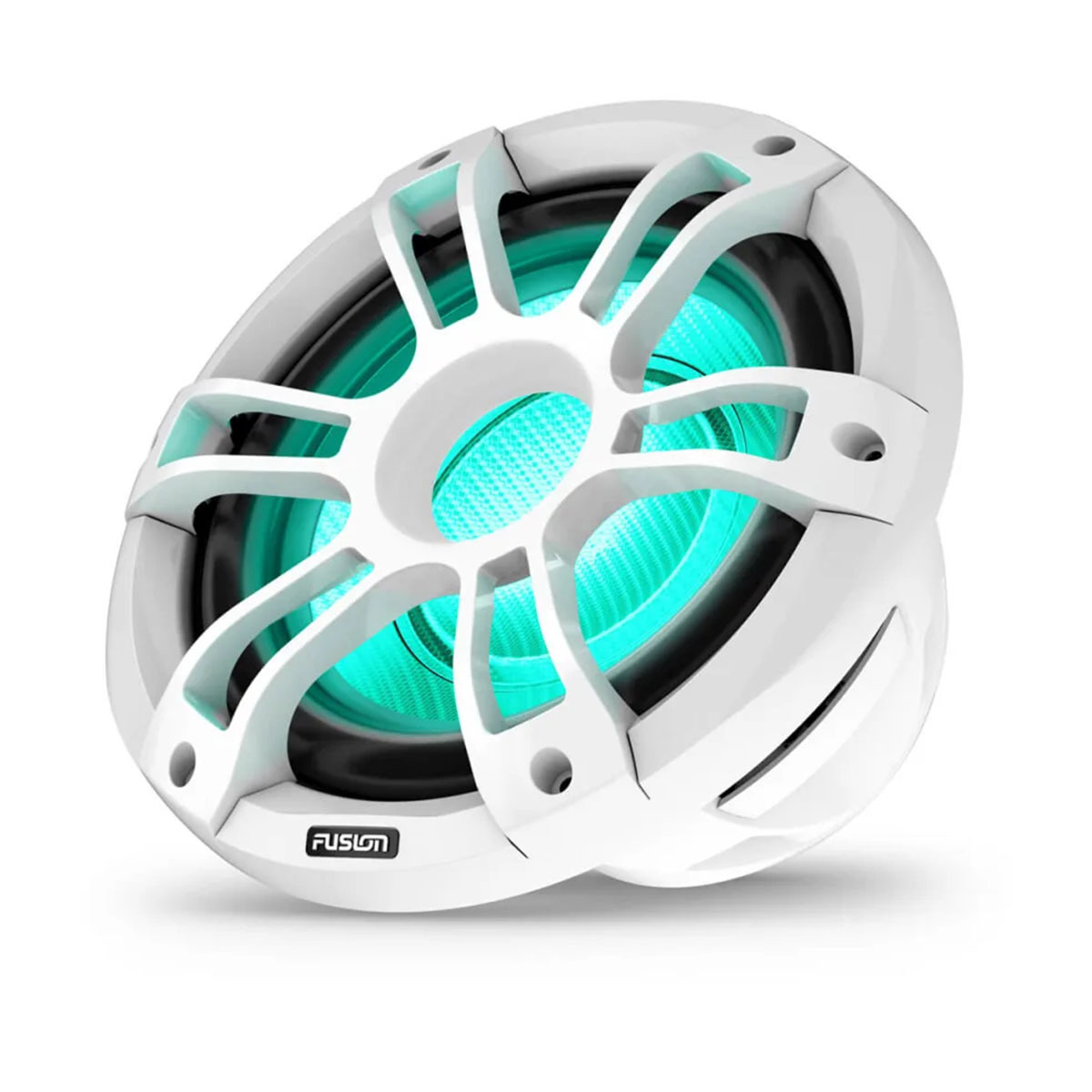

LED ILLUMINATION

Cool white, red, green, blue, warm white. You can choose or mix colours to match the mood of your music.

SYSTEM INTEGRATION

These subwoofers are designed to work optimally with Fusion stereo systems and amplifiers (sold separately) with custom DSP profiles. This requires the Fusion-Link™ smart-device app for setup.

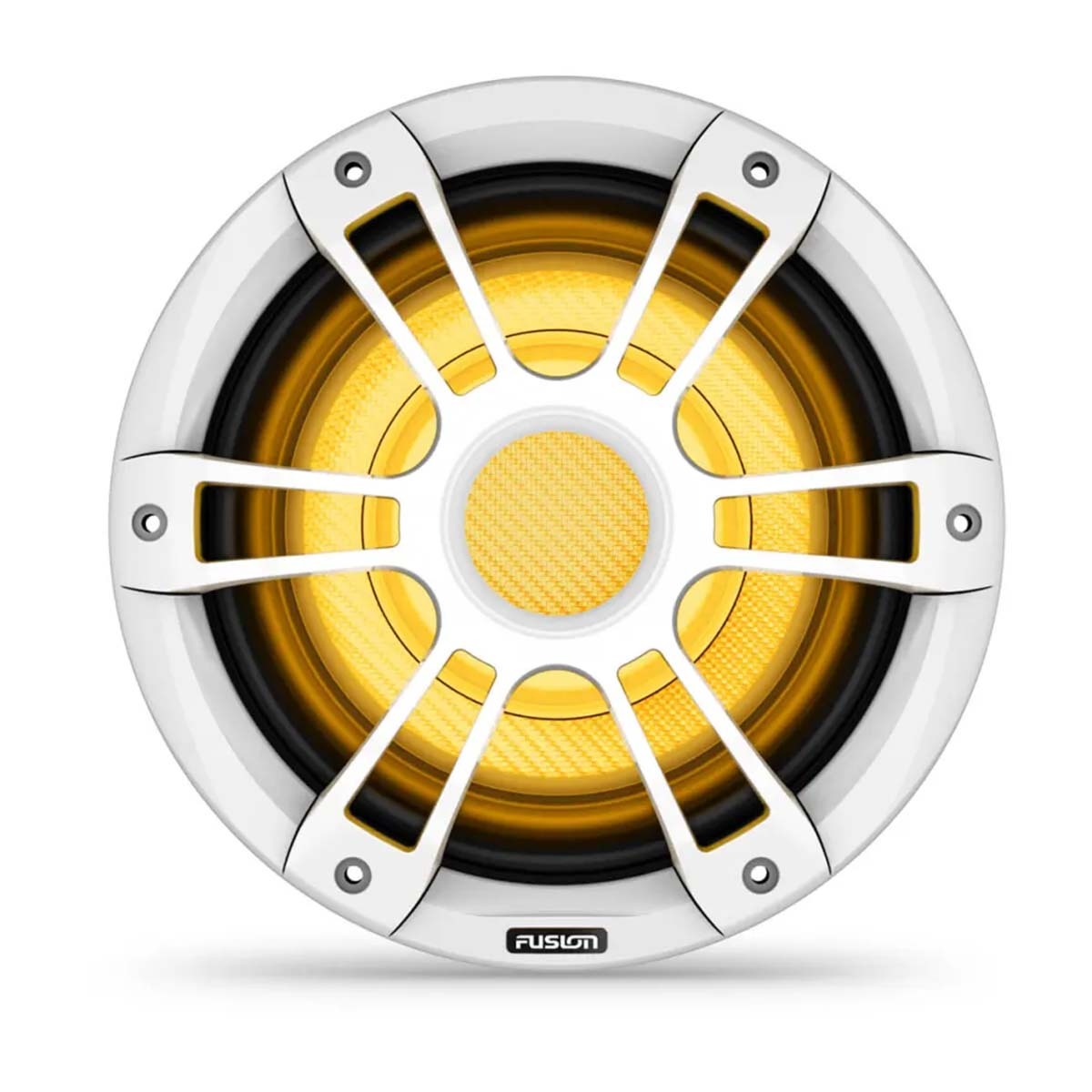

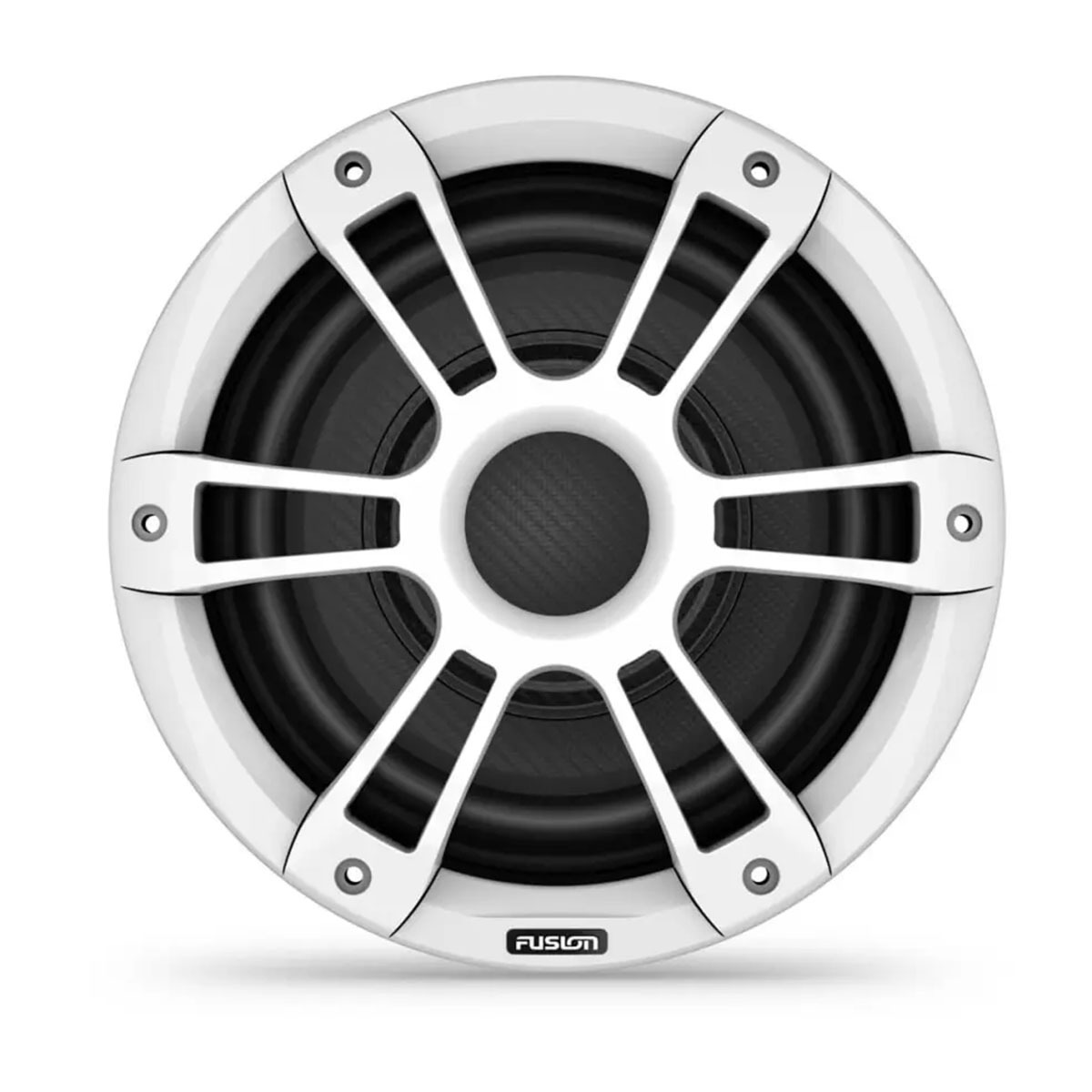

SPORTS SUBWOOFER

Available in white or grey, CRGBW LED lights are standard on 12″ size and optional on 10″ size.

CLASSIC WHITE SUBWOOFER

The classically styled perforated metal grille is available in 10″ size.

FEATURES:

  • Crystal-clear premium sound quality is suited for the marine environment.
  • Water-resistant connectors provide simplified installation and superior protection.
  • The rigorously tested marinised design has an IP65 rating.
  • Available in classic 10″ design as well as 10″ and 12″ sports style design.
  • CRGBW LED lights set the scene on your boat.
  • Built to last season after season, the Fusion Signature Series 3i Marine Subwoofers include a supported 3-year warranty.

General

Physical dimensions (diameter x depth) 12" sports subwoofer: 14.02" x 10" (356 x 254 mm)
10" classic subwoofer: 10.83" x 6.38" (275 x 162 mm)
10" sports subwoofer: 10.83" x 6.77" (275 x 172 mm)
Weight 12" CRGBW sports subwoofer: 24.1 lbs (10.93 kg)
10" CRGBW sports subwoofer: 11.3 lbs (5.12 kg)
10" sports subwoofer: 11.2 lbs (5.06 kg)
10" classic subwoofer: 11 lbs (4.98 kg)
Water and dust rating IP65
Peak power (Watts) 12" subwoofer: 1400 watts
10" subwoofer: 600 watts
RMS power rating (watts) 12" subwoofer: 700 watts
10" subwoofer: 300 watts
Sensitivity (1 watt @ 1 metre) 86 dB
Magnetic structure 12" subwoofer: 114 oz
10" subwoofer: 68 oz
Frequency response 12" subwoofer: 20 Hz–2 kHz
10" subwoofer: 30 Hz–2 kHz
Nominal impedance 4 ohm
Recommended amplifier power (watts RMS) 12" subwoofer: 200–1000 watts
10" subwoofer: 50–600 watts
LED lighting yes, CRGBW (sports style with LED models only)
LED supply voltage 10.8–16 VDC (sports style with LED models only)
LED load current @14.4 VDC (max) 300 mA (sports style with LED models only)
Operating temperature range 32–122 degrees F (0–50 degrees C)
Voice coil diameter 12" subwoofer: 4"
10" subwoofer: 2"
Cone material Polypropylene cone with rubber surround
Compass-safe distance 12" subwoofer: 181" (460 cm)
10" subwoofer: 205" (520 cm)
Subwoofer connection Flying lead with water-resistant 2-way connector, 5.9" (150 mm)
LED connection (sports style with LED models only) Flying lead with water-resistant 6-way connector, 5.9" (150 mm)
Warranty 3 years

Mounting Dimensions

Mounting diameter clearance 12" subwoofer: 12.05" (306 mm)
10" subwoofer: 8.78" (223 mm)
Mounting depth clearance 12" subwoofer: 8.15" (207 mm)
10" subwoofer: 5.24" (133 mm)

Optimum enclosure recommendations

Sealed enclosure volume (fully filled with absorption material) 12" subwoofer: 2.12 cubic ft (60 L)
10" subwoofer: 0.95 cubic ft (27 L)
Ported (vented) enclosure volume (lined with absorption material) 12" subwoofer: 8.83 cubic ft (250 L)
10" subwoofer: 1.6 cubic ft (45 L)
Port diameter 12" subwoofer: 4" (101.6 mm)
10" subwoofer: 4.1" (104 mm)
Port length 12" subwoofer: 5" (127 mm)
10" subwoofer: 10.43" (265 mm)
SKU FUS.010-02774-10
Model # 010-02774-10
UPC/EAN 753759298043
Brand Fusion
Shipping Weight 5.1200kg
Shipping Width 0.275m
Shipping Height 0.162m
Shipping Length 0.275m
Shipping Cubic 0.012251000m3
Unit Of Measure ea
