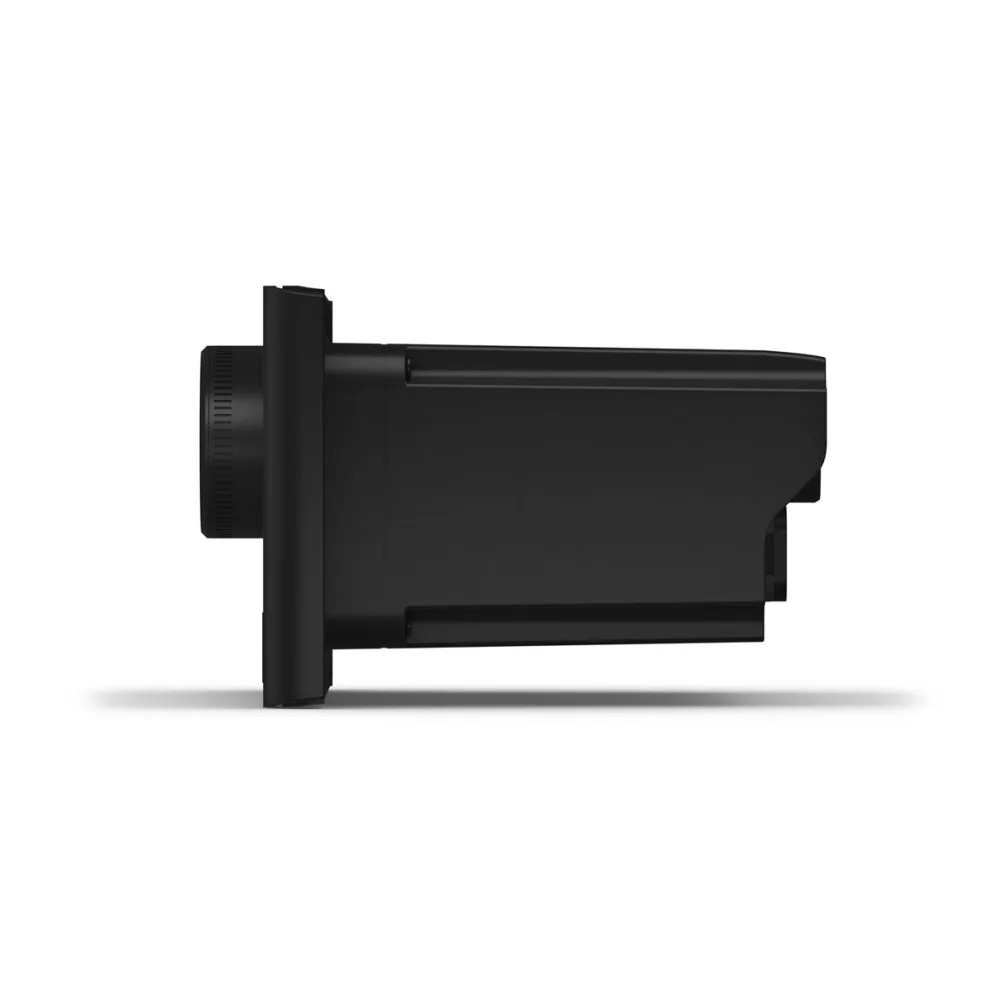

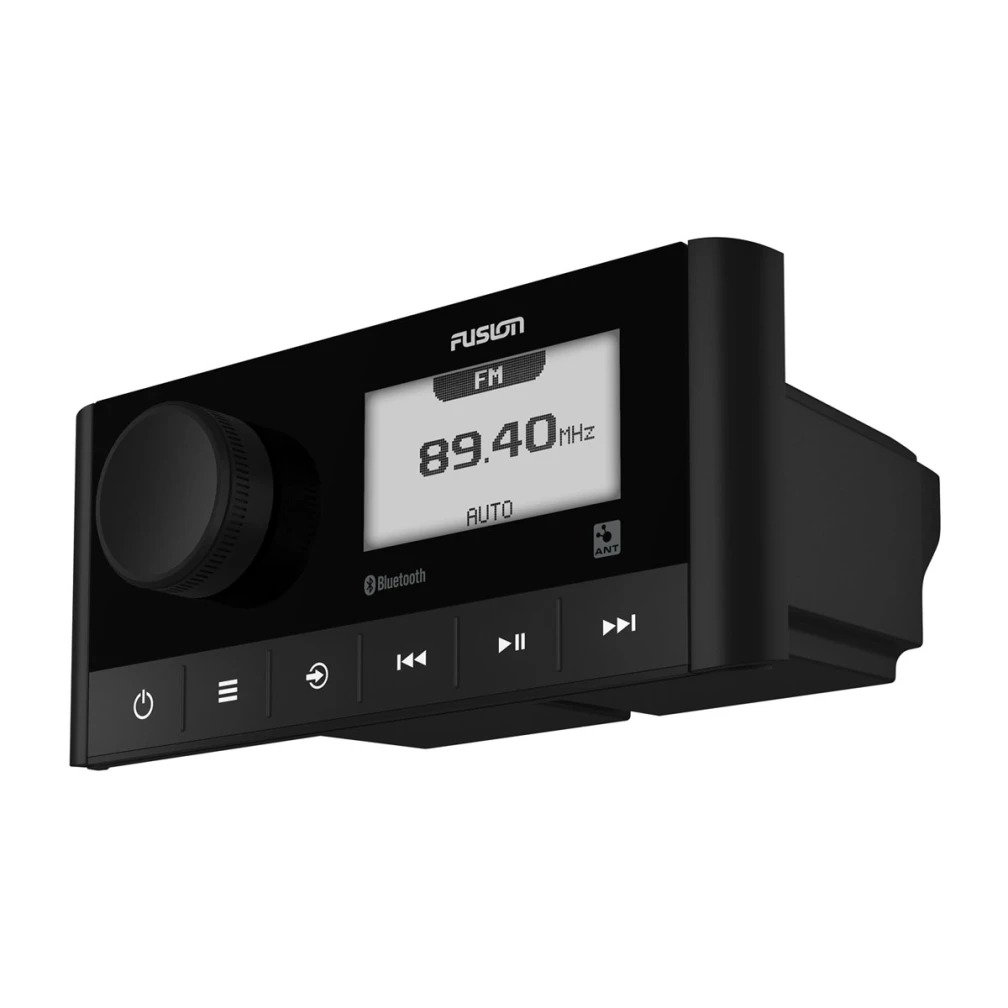

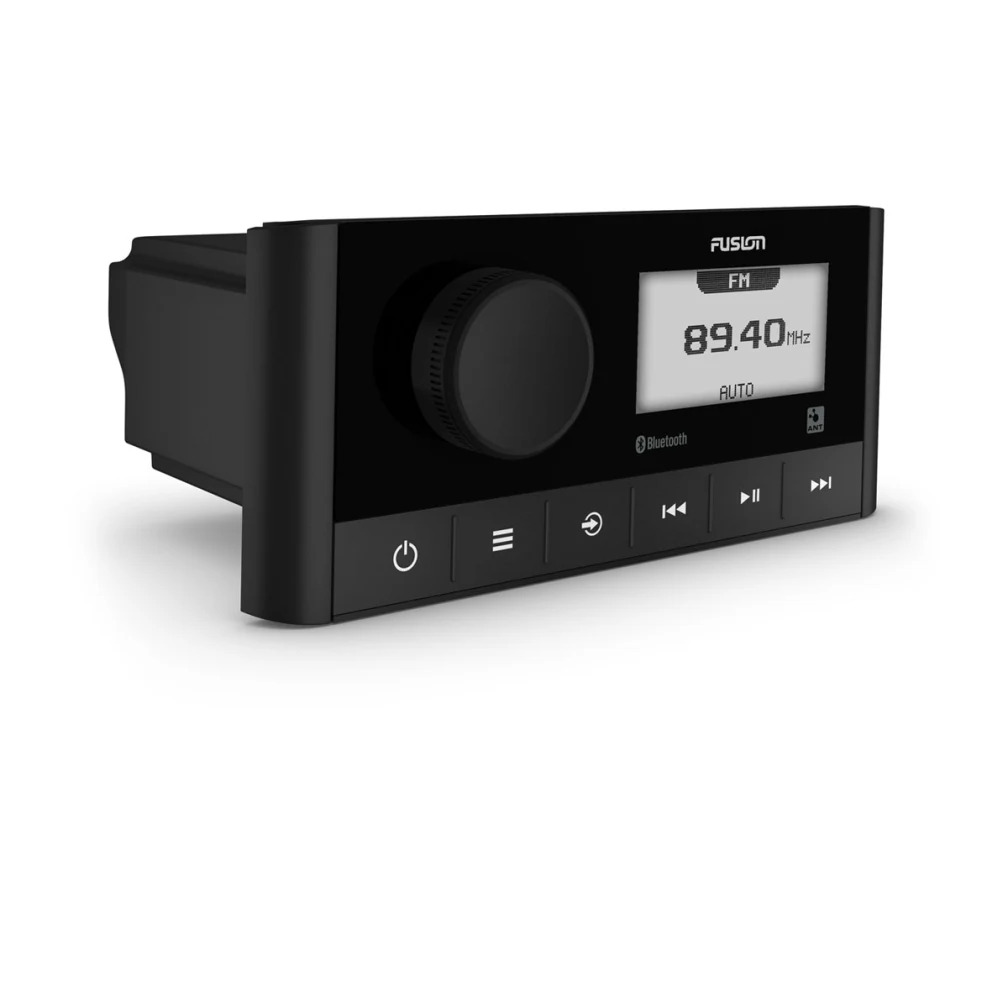

IPX6 AND IPX7 INGRESS PROTECTION - Designed and engineered for the harsh marine environment, the Fusion stereos have an IPX6 and IPX7-rated water-resistant front panel to perform and last on board.

MODERN DESIGN AND AESTHETICS - Providing uniformity across the helm, the black front face blends seamlessly into black glass panels, complementing other electronics and MFDs for a tidy and elegant installation.

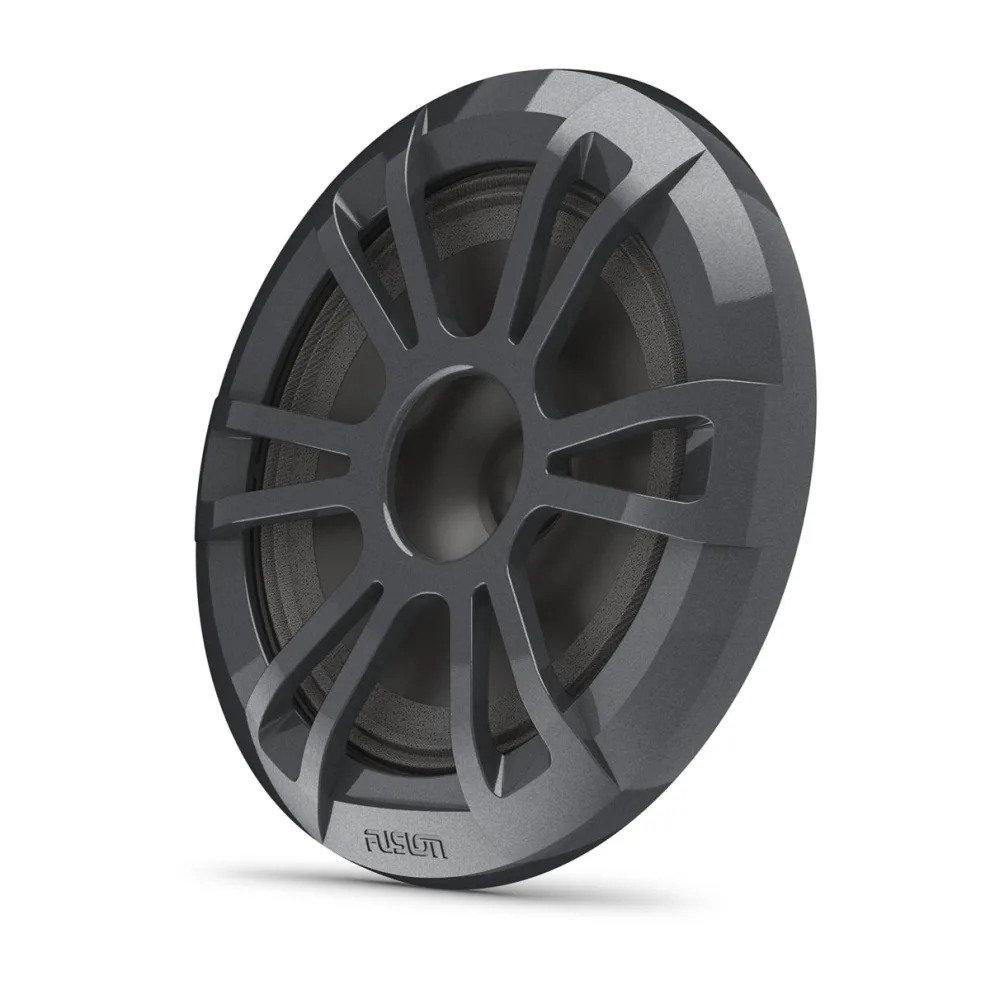

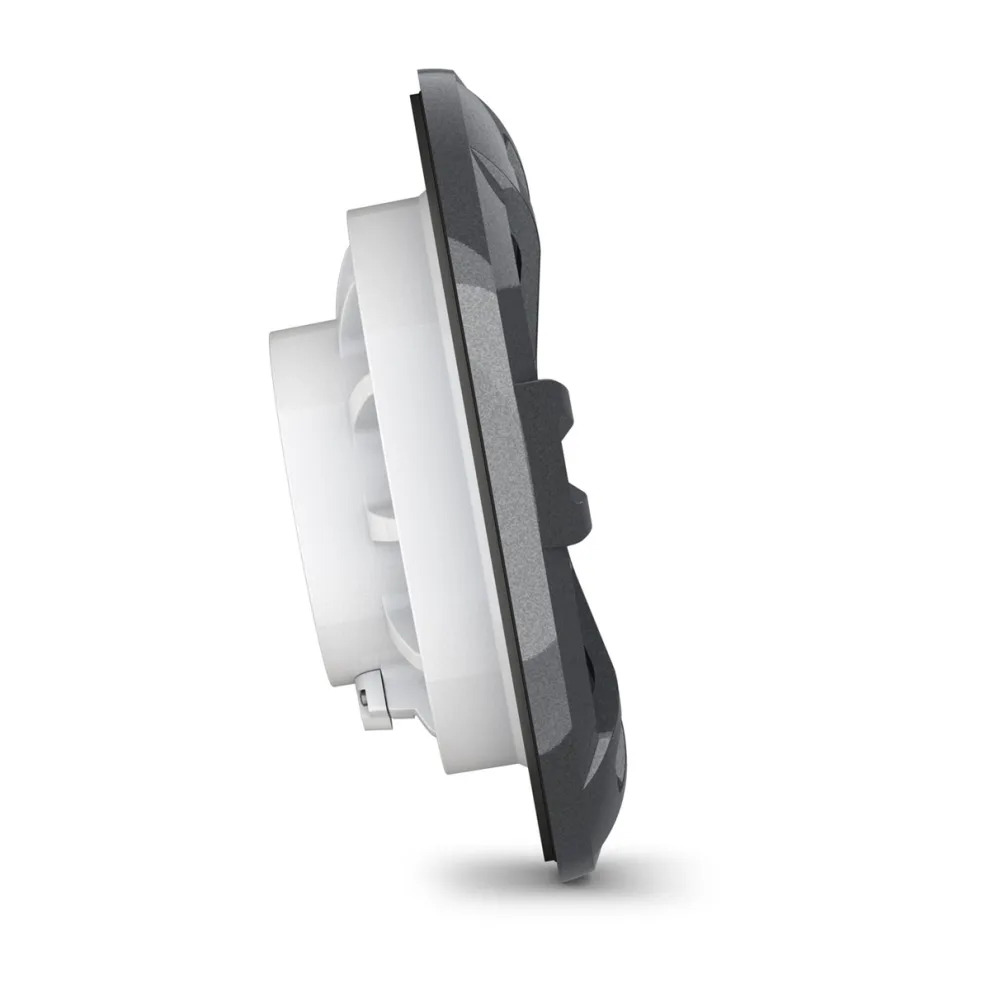

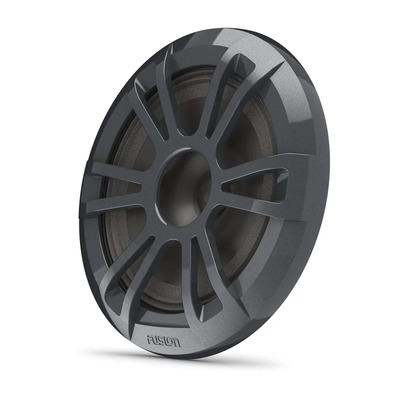

DESIGNED AND ENGINEERED FOR THE MARINE ENVIRONMENT - The Fusion speakers have an IP65 rating for protection against dust and water ingress and have been tested to a high level of protection against salt fog and UV.

DESIGNED TO COMPLY WITH ISO12216 - Tested to international standards for pressure and water ingress, the Fusion speakers are designed and built for superior quality and robustness.

QUALITY MATERIALS AND ACOUSTIC ENGINEERING - The Fusion speakers incorporate high-quality materials and marine-specific design elements, ensuring they look and sound great on the water.

FEATURES:

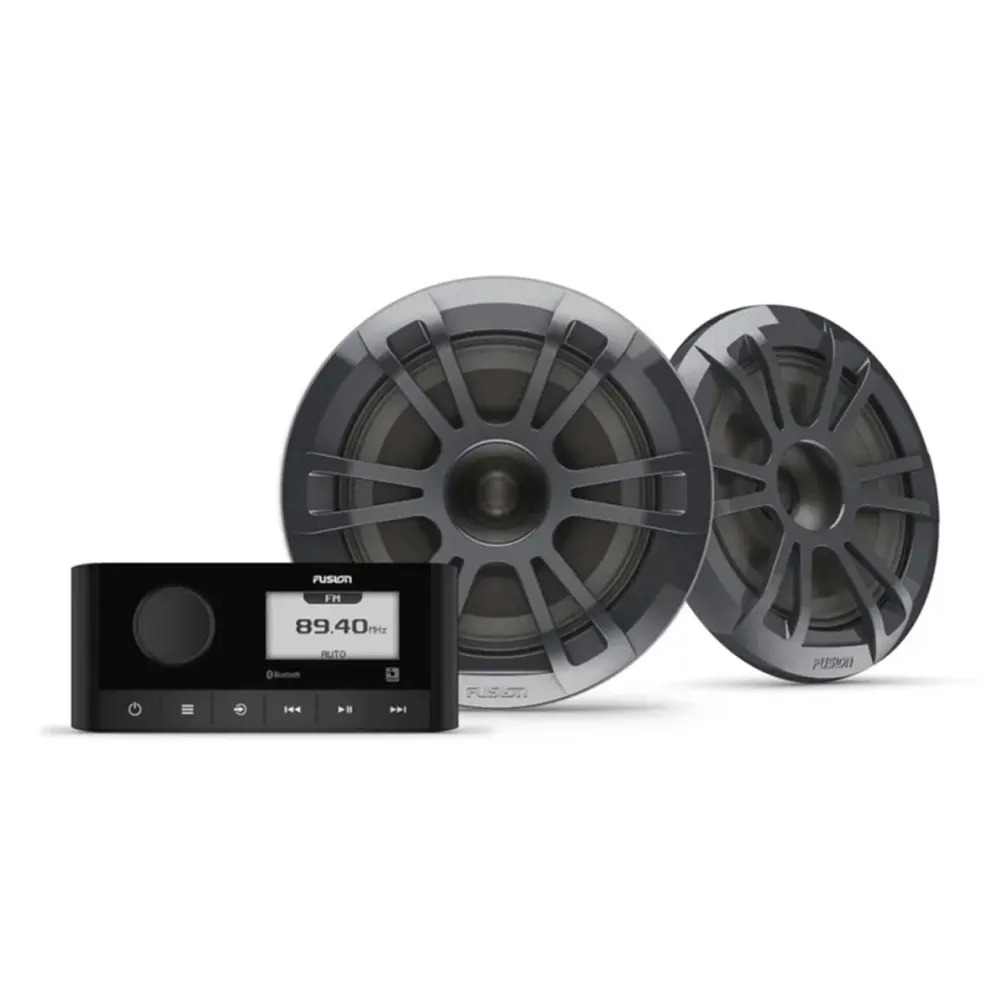

  • Enjoy your music ASAP. Your marine stereo and both speakers come ready to install.
  • Easily control music from your compatible Garmin MFD, smart device or Garmin watch
  • Built-in Class D amplifier brings aboard higher efficiency and greater output.
  • Multi-Zone™ Technology makes you the captain of two separate audio zones.
  • Conveniently update software via BLUETOOTH® technology from the Fusion-Link™ app on your compatible smart device.
  • Grow your audio system with compatible Fusion speakers, subwoofers and amplifiers.

Physical dimensions (Diameter x Depth):

EL Classic Speaker: 6.93" x 2.26" (176 x 57.5 mm)
EL Sports Speaker: 6.93” x 2.32” (176 x 59 mm)
XS Classic Speaker: 6.97" x 3.19" (177 x 81 mm)
XS Sports Speaker: 6.97" x 3.27" (177 x 83 mm)

Water rating:

IP65

Configuration:

EL Speaker: Full range
XS Speaker: Coaxial

Speaker size:

6.5"

Peak power (watts):

EL Speaker: 80 W
XS Speaker: 200 W

RMS Power (watts):

EL Speaker: 20 W
XS Speaker: 50 W

Sensitivity (1 watt/1 meter):

EL Speaker: 88 dB
XS Speaker: 91 dB

Frequency response:

EL Speaker: 45 Hz-16 kHz
XS Speaker: 80 Hz-18 kHz

Nominal impedance:

4 ohm

Recommended amplifier power (RMS):

EL Speaker: 20-40 W/Ch
XS Speaker: 20-150 W/Ch

Operating temperature range:

32° to 122° F (0° to 50° C)

Voice coil diameter:

EL Speaker: 0.79"
XS Speaker: 1.18"

Cone material:

Polypropylene cone with cloth surround

Tweeter type:

XS Speaker: Aluminum dome

Compass-safe distance:

EL Speaker: 100" (254 cm)
XS Speaker: 122" (310 cm)

Warranty:

EL Speaker: 1 year
XS Speaker: 3 years

Mounting diameter clearance:

EL Speaker: 5.12" (130 mm)
XS Speaker: 5.31" (135 mm)

Mounting depth clearance:

EL Speaker: 1.69" (43 mm)
XS Speaker: 2.64" (67 mm)

Sealed enclosure volume:

XS Speaker: 0.28 cubic ft (8 L)

SKU GAR.010-02405-61
Model # 010-02405-61
UPC/EAN 753759314200
Brand Fusion
Shipping Weight 3.0000kg
Shipping Width 0.176m
Shipping Height 0.130m
Shipping Length 0.176m
Shipping Cubic 0.004027000m3
Unit Of Measure ea
