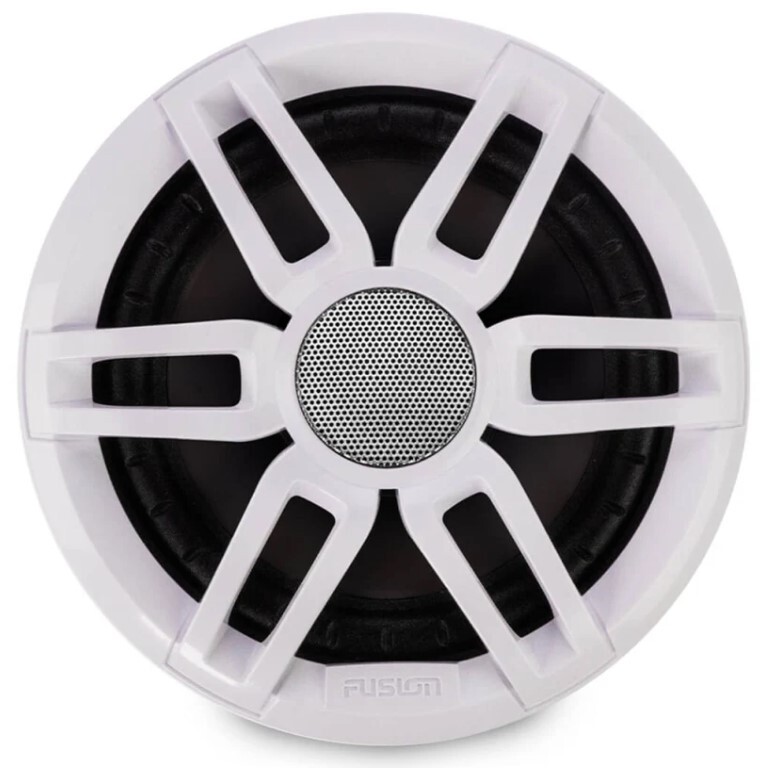

INJECTION-MOULDED POLYPROPYLENE CONE

By using a translucent cone, consistent multi-colour illumination is incorporated into the system. It also improves the robustness of the speaker, allowing for clean, clear audio reproduction.

ALUMINIUM DOME TWEETER

The aluminium dome tweeter provides a smooth upper frequency response and increased efficiency, which delivers crystal-clear music reproduction.

OVERHUNG VOICE COIL

The overhung design reduces distortion and increases power and efficiency to deliver a truly high-quality sound experience.

FULLY SEALED CROSSOVER COMPONENTS

Fully sealed crossover components provide increased protection from the harsh marine environment. This delivers an improved frequency response at the crossover point for a detailed audio spectrum and a new level of acoustic performance.

OPEN BASKET CONSTRUCTION

The optimised open back design allows for extended power handling and versatile mounting options with reduced mounting depth.

General


Physical dimensions (Diameter x Depth) 7.7" Classic: 7.72" x 3.70" (196 x 94 mm)
7.7" Sports: 7.72" x 3.82" (196 x 97 mm)
6.5" Classic: 6.97" x 3.19" (177 x 81 mm)
6.5" Sports: 6.97" x 3.27" (177 x 83 mm)
4" Classic: 5.31" x 2.68" (135 x 68 mm)
Water and dust rating IP65
Configuration Coaxial
Speaker size XS-F77CWB / XS-FL77SPGW: 7.7"
XS-F65CWB / XS-FL65SPGW: 6.5"
XS-F40CWB: 4"
Peak power (Watts) 7.7" Speaker: 240 W
6.5" Speaker: 200 W
4" Speaker: 120 W
RMS power (Watts) 7.7" Speaker: 60 W
6.5" Speaker: 50 W
4" Speaker: 30 W
Sensitivity (1 W / 1 m) 7.7" Speaker: 92 dB
6.5" Speaker: 91 dB
4" Speaker: 87 dB
Frequency response 7.7" Speaker: 70 Hz-18 kHz
6.5" Speaker: 80 Hz-18 kHz
4" Speaker: 100 Hz-18 kHz
Nominal impedance 4 ohms
Recommended amplifier power (RMS) 7.7" Speaker: 25-200 W/Ch
6.5" Speaker: 20-150 W/Ch
4" Speaker: 15-80 W/Ch
LED lighting Yes (RGB; sports-style only)
LED supply voltage 10.8-16 VDC (sports-style only)
LED load current @ 14.4 VDC 150 mA (sports-style only)
Operating temperature range 32° to 122° F (0° to 50° C)
Voice coil diameter 7.7": 1.18"
6.5": 1.18"
4": 1"
Operating temperature range 7.7" / 6.5": Polypropylene cone with cloth surround
4": Polypropylene cone with rubber surround
Tweeter type Aluminum dome
Compass-safe distance 7.7": 157.5" (400 cm)
6.5": 122" (310 cm)
4": 100.5" (255 cm)
Warranty 3 years

Mounting dimensions


Mounting diameter clearance 7.7": 6.38" (162 mm)
6.5": 5.31" (135 mm)
4": 3.90" (99 mm)
Mounting depth clearance 7.7": 3.03" (77 mm)
6.5": 2.64" (67 mm)
4": 2.13" (54 mm)

Optimum enclosure recommendations


Sealed enclosure volume1 7.7": 0.35 cubic ft (10 L)
6.5": 0.28 cubic ft (8 L)
4": 0.14 cubic ft (4 L)
SKU FUS.010-02197-00
Model # 010-02197-00
UPC/EAN 0753759221454
Brand Fusion
Shipping Weight 5.0000kg
