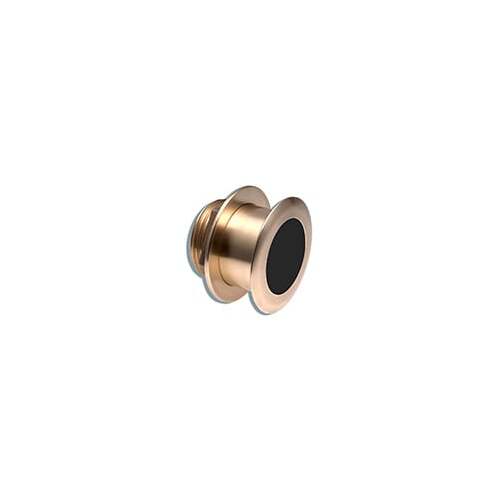

This bronze thru-hull mount transducer performs well at high speeds and is an excellent choice for fiberglass and wood hulls. This flush-mounted housing protrudes less than a quarter of an inch outside the hull and can sit on trailer rollers/bunks without damage.

An 8-pin 1 kW transducer, it has a depth of 1,200 to 1,800 ft; an operating frequency of 50 to 200 kHz; a beamwidth of 22x20 or 6x6 degrees; and mounts on a 16 to 24 degree deadrise angle.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

*Do not use on metal hulls. When using with a 6-pin Garmin sounder, a transducer adapter cable is required.

Features

Transducer cable length 39 ft.
Transducer power 1 kW
Transducer frequency 50/200 kHz
Transducer maximum depth 1,200-1,800 ft.
Transducer number of pins 8-pin
Transducer beamwidth 22°x20°/6°x6°
Transducer depth/speed/temperature Depth and Temperature
Transducer supported deadrise/transom angles      16°-24° degree deadrise
SKU GAR.010-11010-20
Model # 010-11010-20
UPC/EAN 0753759971908
Brand Garmin
Shipping Weight 4.9900kg
