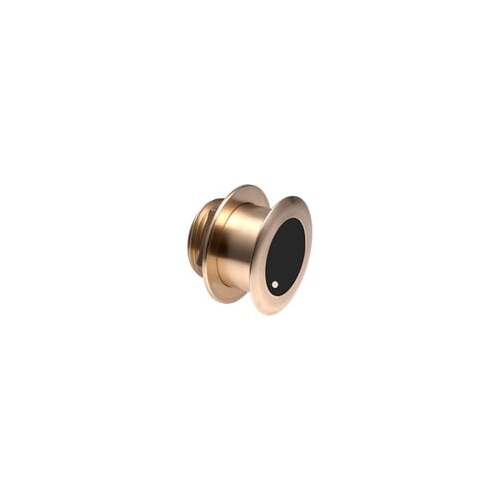

Step up to 1 kW without a fairing with this flush-mounted bronze housing that protrudes less than 1/4-inch outside the hull and can sit on the trailer rollers/bunks without damage.

The tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. Low, medium, high, and high wide versions provide maximum flexibility for the choice of frequencies.

An excellent choice for fiberglass and wood hulls, this 8-pin transducer has a depth of 600 feet; an operating frequency of 150-250 kHz; a beamwidth of 25 degrees; and a 16 to 24 degree deadrise.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

Features

Transducer cable length 39 ft.
Transducer power 1 kW
Transducer frequency CHIRP 150-250 kHz
Transducer maximum depth 500 ft.
Transducer number of pins 8-pin
Transducer beamwidth 25°
Transducer depth/speed/temperature Depth and Temperature
Transducer supported deadrise/transom angles      16°-24° degree deadrise
SKU GAR.010-12181-22
Model # 010-12181-22
UPC/EAN 0753759123550
Brand Garmin
Shipping Weight 4.9000kg
