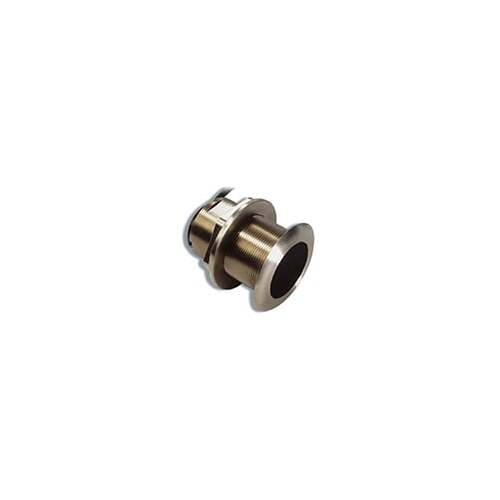

This entry-level tilted bronze transducer accommodates deadrise angles of 16 to 24 degrees without a fairing.

An excellent choice for fiberglass and wood hulls, this 600 W 8-pin transducer has a depth of 800 to 1,200 ft; an operating frequency of 50 to 200 kHz; and a beamwidth of 45 to 12 degrees.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

*Do not use on metal hulls. When using with a 6-pin Garmin sounder, a transducer adapter cable is required.

Features

Transducer cable length 33 ft.
Transducer power 600 W
Transducer frequency 50/200 kHz
Transducer maximum depth 800-1,200 ft.
Transducer number of pins 8-pin
Transducer beamwidth 45°/12°
Transducer depth/speed/temperature Depth and Temperature
Transducer supported deadrise/transom angles      16°-24° degree deadrise
SKU GAR.010-10982-20
Model # 010-10982-20
UPC/EAN 0753759971823
Brand Garmin
Shipping Weight 1.5900kg
