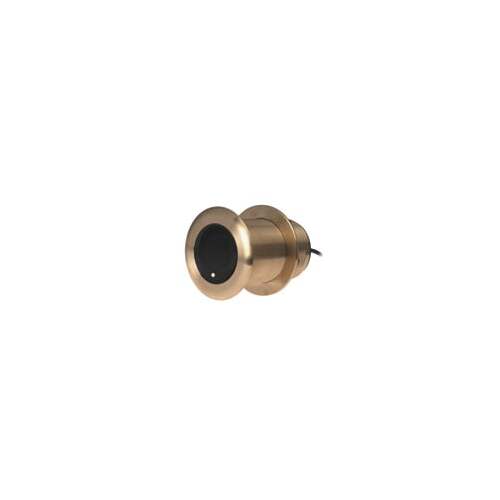

This bronze thru-hull mount transducer is designed to allow both traditional and spread spectrum scanning when used with a compatible sonar.

A 600 W transducer with 8 pins, it has a depth of 800 ft; an operating frequency of 130-210 kHz; a beamwidth of 15/9 degrees; and a 6 to 15 degree deadrise.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

Features

Transducer cable length 39 ft.
Transducer power 600 W
Transducer frequency CHIRP (130-210 kHz)
Transducer maximum depth 700 ft.
Transducer number of pins 8-pin
Transducer beamwidth 15°/9°
Transducer depth/speed/temperature Depth and Temperature
Transducer supported deadrise/transom angles       8°-15° degree deadrise
SKU GAR.010-11634-21
Model # 010-11634-21
UPC/EAN 0753759971977
Brand Garmin
Shipping Weight 2.7200kg
