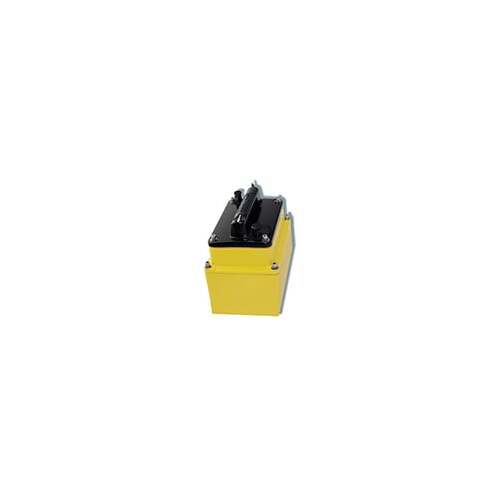

The best performing 1 kW in-hull, this narrow beam transducer provides crisp image detail.

The transducer has a depth of 3,000'; an operating frequency of 42 to 65 kHz and 130 to 210 kHz; a beamwidth of 16 to 25 degrees or 6 to 10 degrees; and a 0 to 30 degree deadrise.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

*Not recommended for cored-hull vessels.

Features

Transducer cable length 39 ft.
Transducer power 1 kW
Transducer frequency CHIRP Low (42-65 kHz) & CHIRP High (130-210 kHz)
Transducer maximum depth 3,000 ft.
Transducer number of pins 12-pin
Transducer beamwidth 16°-25°/6°-10°
Transducer depth/speed/temperature Depth
Transducer supported deadrise/transom angles      0°-30° degree deadrise
SKU GAR.010-12380-20
Model # 010-12380-20
UPC/EAN 0753759142421
Brand Garmin
Shipping Weight 5.6200kg
